A/T Interlock

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

If there is an A/T interlock judgment malfunction, the transmission is fixed in 2nd gear to make driving possible.
NOTE: When the vehicle is driven fixed in 2nd gear, a turbine revolution sensor malfunction is displayed, but this is not a turbine revolution sensor malfunction.
When the coupling pattern below is detected, the fail-safe action corresponding to the pattern is performed.

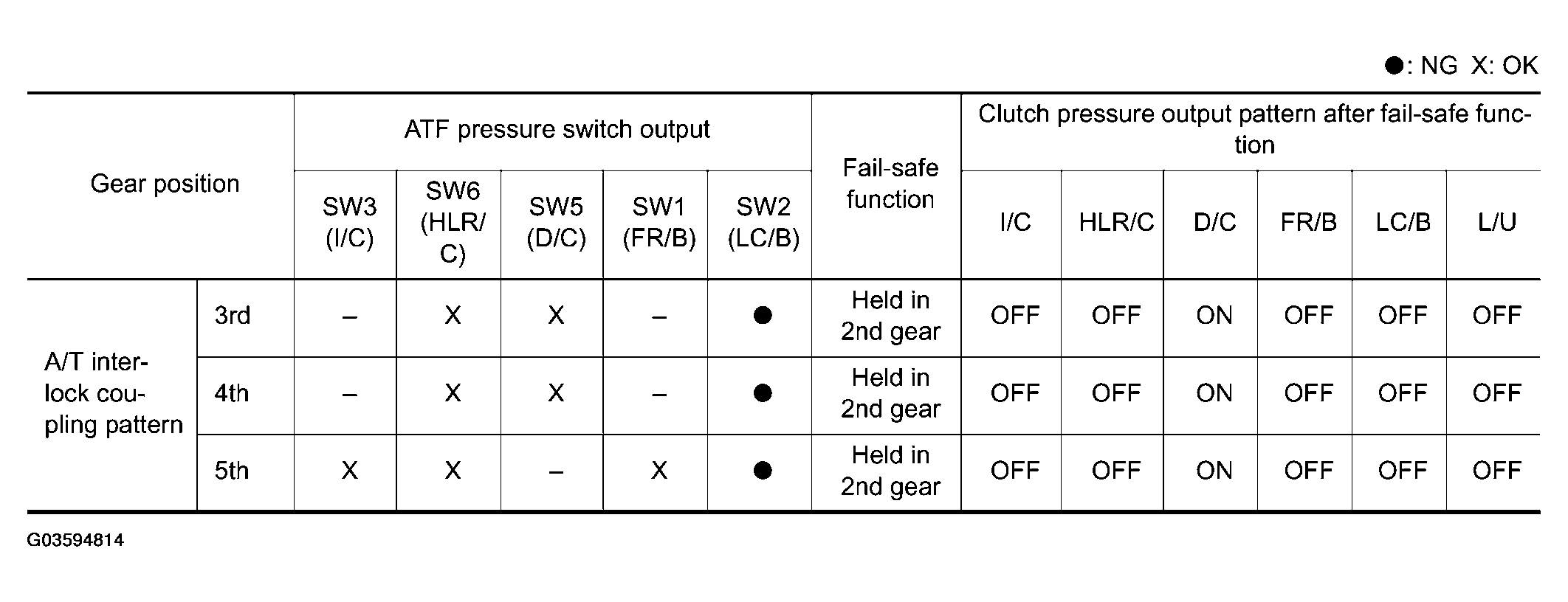

A/T INTERLOCK COUPLING PATTERN TABLE

Fig 1: A/T Interlock Coupling Pattern Table

Courtesy of NISSAN MOTOR CO., U.S.A.
