TCM Inspection Table

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

Data are reference value and are measured between each terminal and ground.

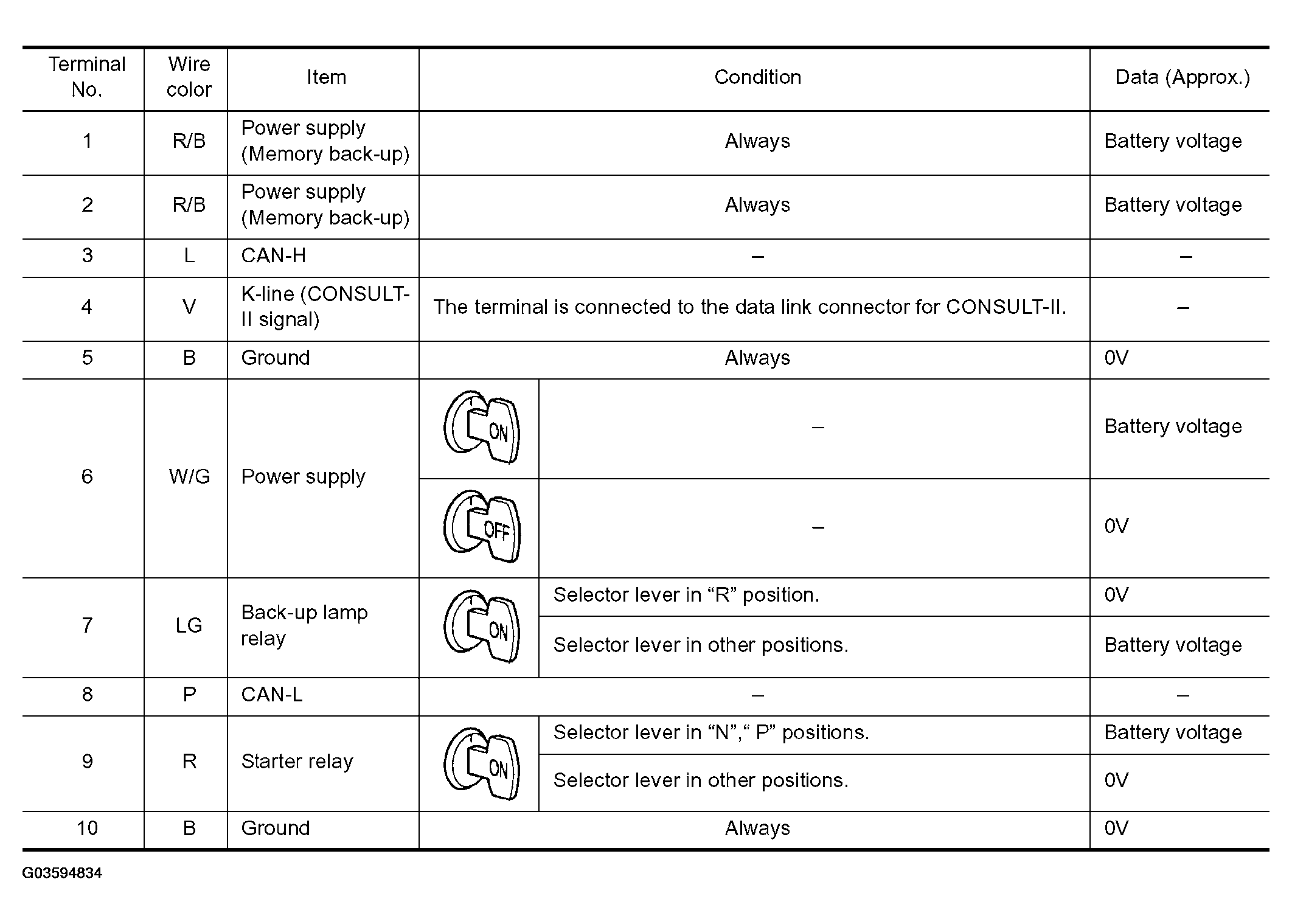

Fig 1: TCM Terminal Signal Reference Value Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
