Section 1604 (Lighting System): Illumination: Schematic

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

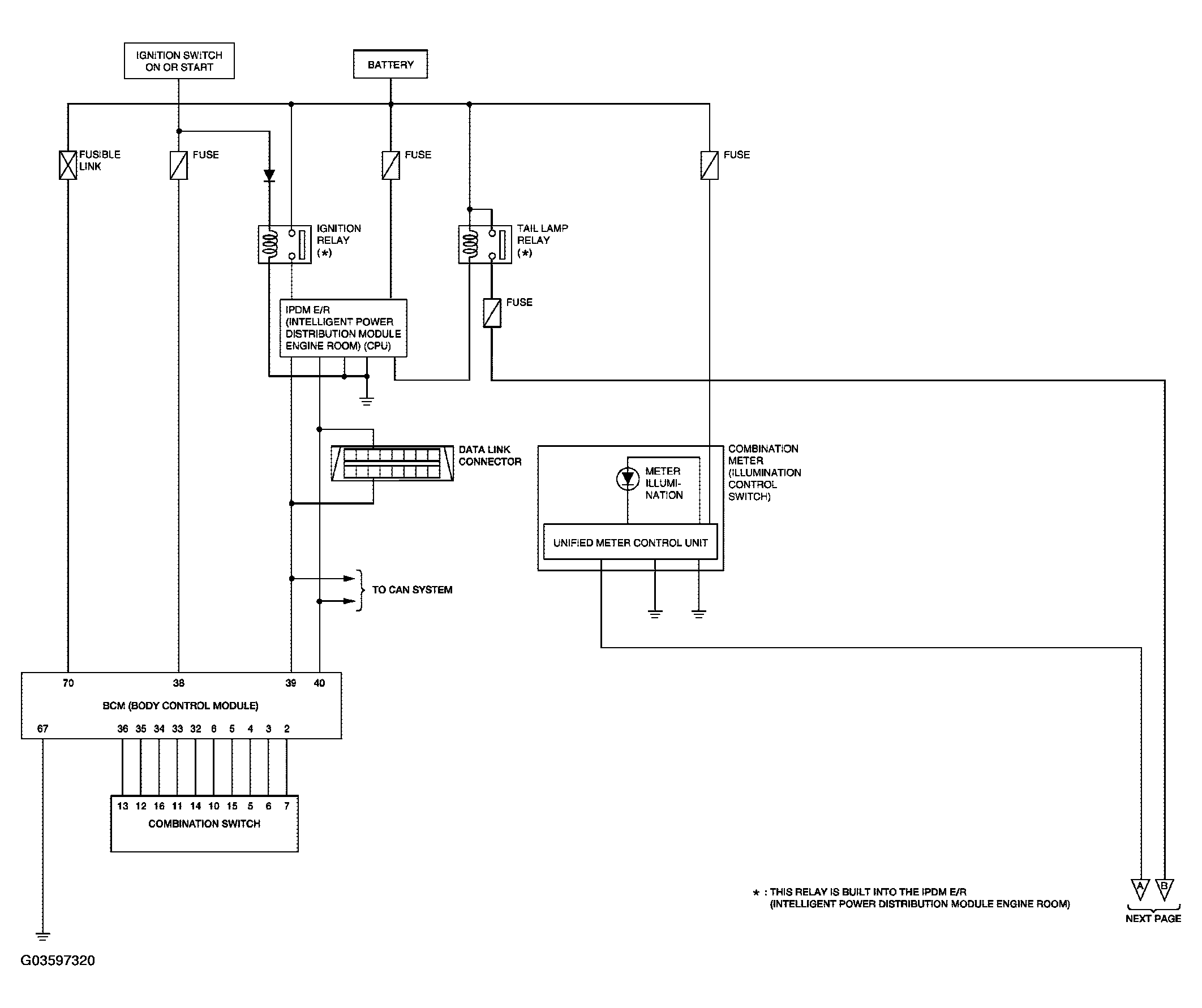

Fig 1: ILLUMINATION - Schematic Diagram (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

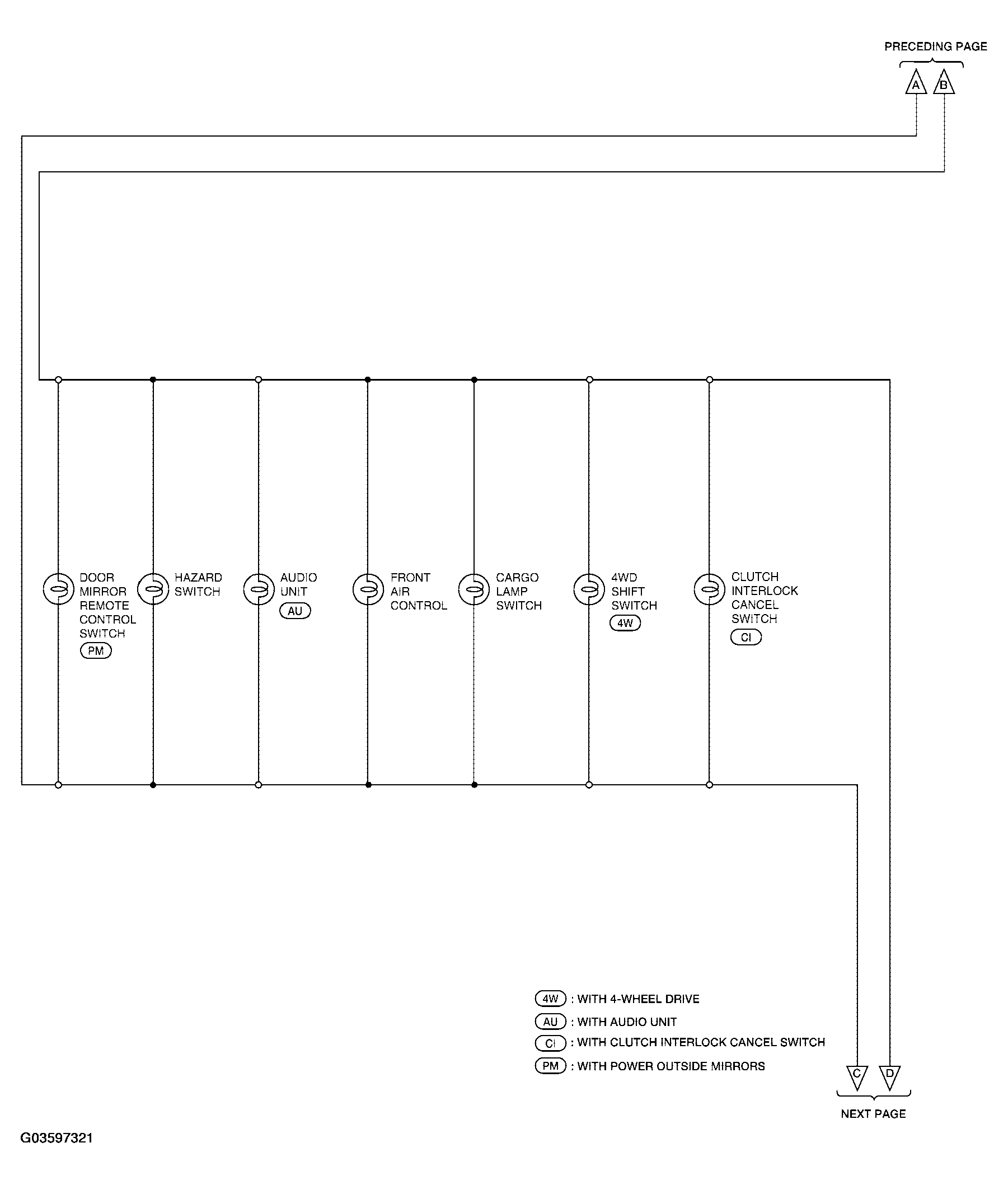

Fig 2: ILLUMINATION - Schematic Diagram (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

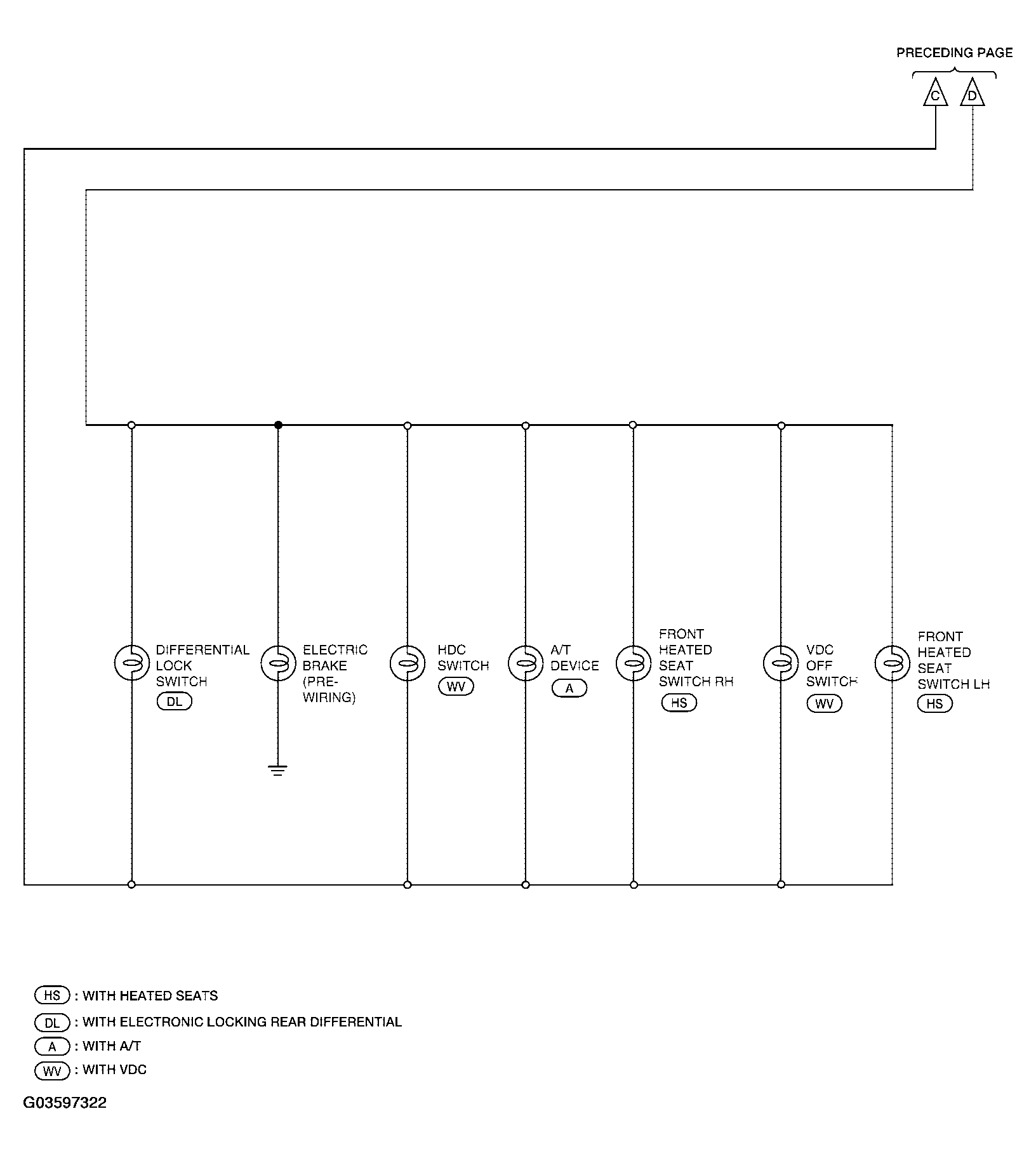

Fig 3: ILLUMINATION - Schematic Diagram (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
