Defogger Relay

WARNING: This page is about a different car, the 2003 Nissan Pathfinder and 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

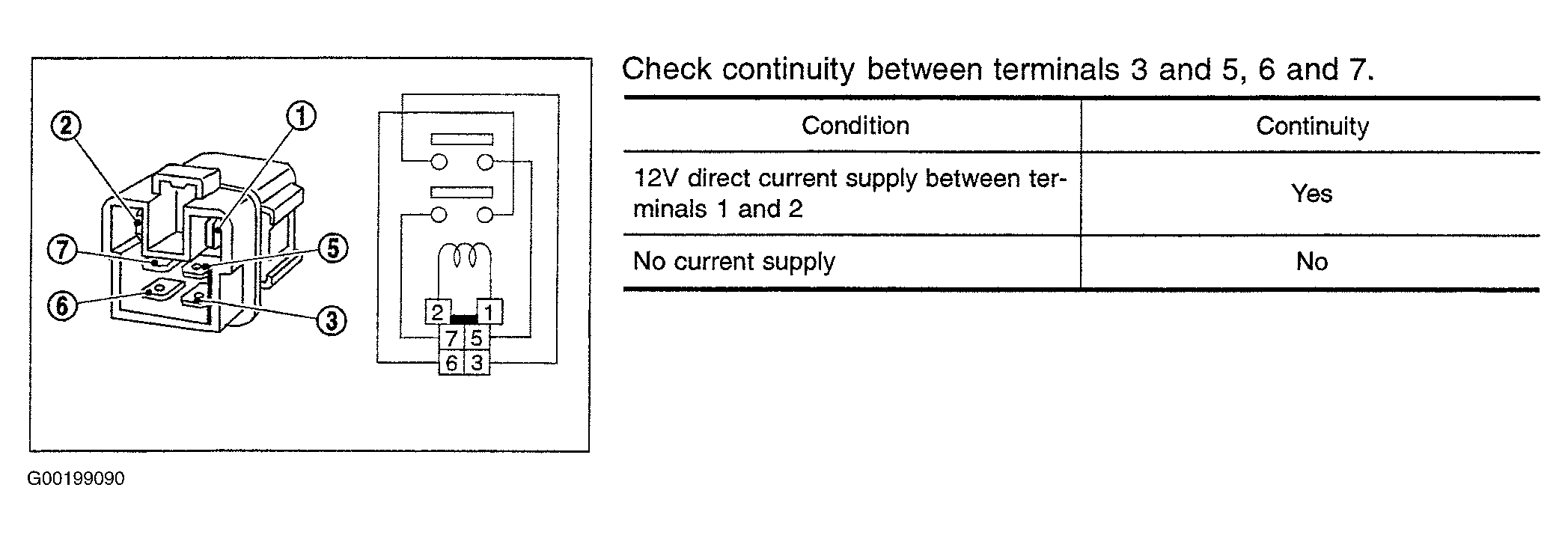

Fig 1: Testing Rear Window Defogger Relay

Courtesy of NISSAN MOTOR CO., U.S.A.
