Removal and Installation: Removal
WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal.
- Remove the radiator, refer to RADIATOR .
- Remove the drive belt, refer to DRIVE BELTS .

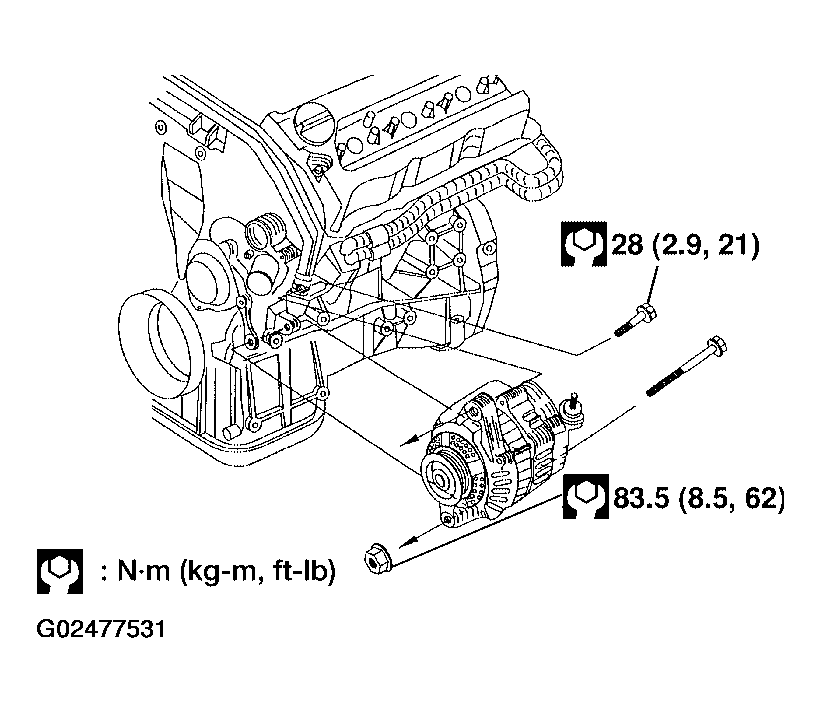

- Remove idler pulley.
- Remove the generator adjustable top mount, using power tools.
- Remove the generator lower bolt and nut, using power tools.
- Disconnect the generator harness connectors.
- Remove the generator upper bolt, using power tools.
- Remove the generator.
