Checking For Coolant Leaks

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Never remove the radiator or reservoir cap when the engine is hot. Serious burns could occur from high-pressure engine coolant escaping from the radiator or reservoir.

To check for leakage, apply pressure to the cooling system at the reservoir filler neck using suitable tool and Tool.

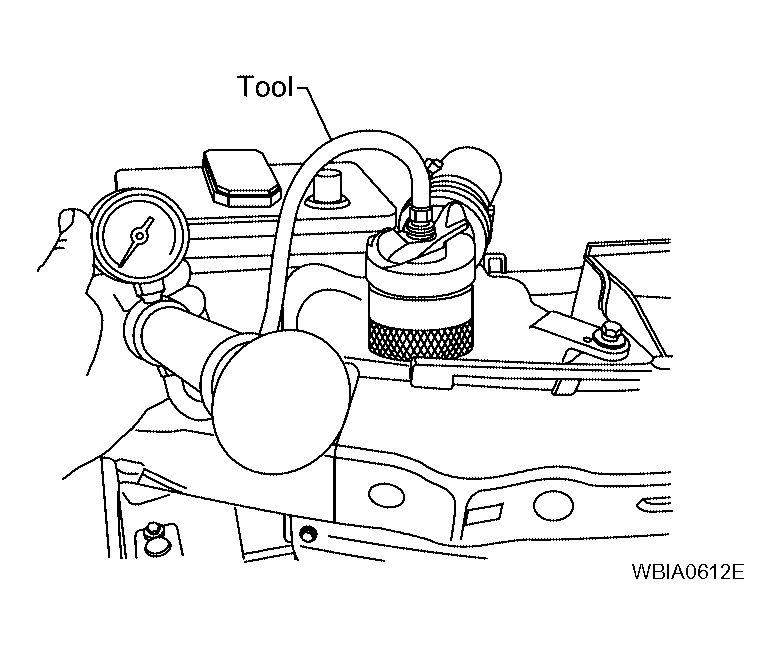

Fig 1: Applying Pressure To Cooling System Using Tool
Courtesy of NISSAN MOTOR CO., U.S.A.

Tool number: EG17650301 (J-33984-A)

Leakage test pressure: 137 kPa (1.4 kg/cm, 20 psi)

CAUTION: Higher pressure than specified may cause radiator damage.

NOTE: In case that engine coolant decreases, replenish cooling system with engine coolant.
If any concerns are found, repair or replace damaged parts.
