Section 1638 (Automatic Transmission)
›
A/T Control System
›
TCM Function
›
Control System Diagram
Control System Diagram
WARNING:
This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

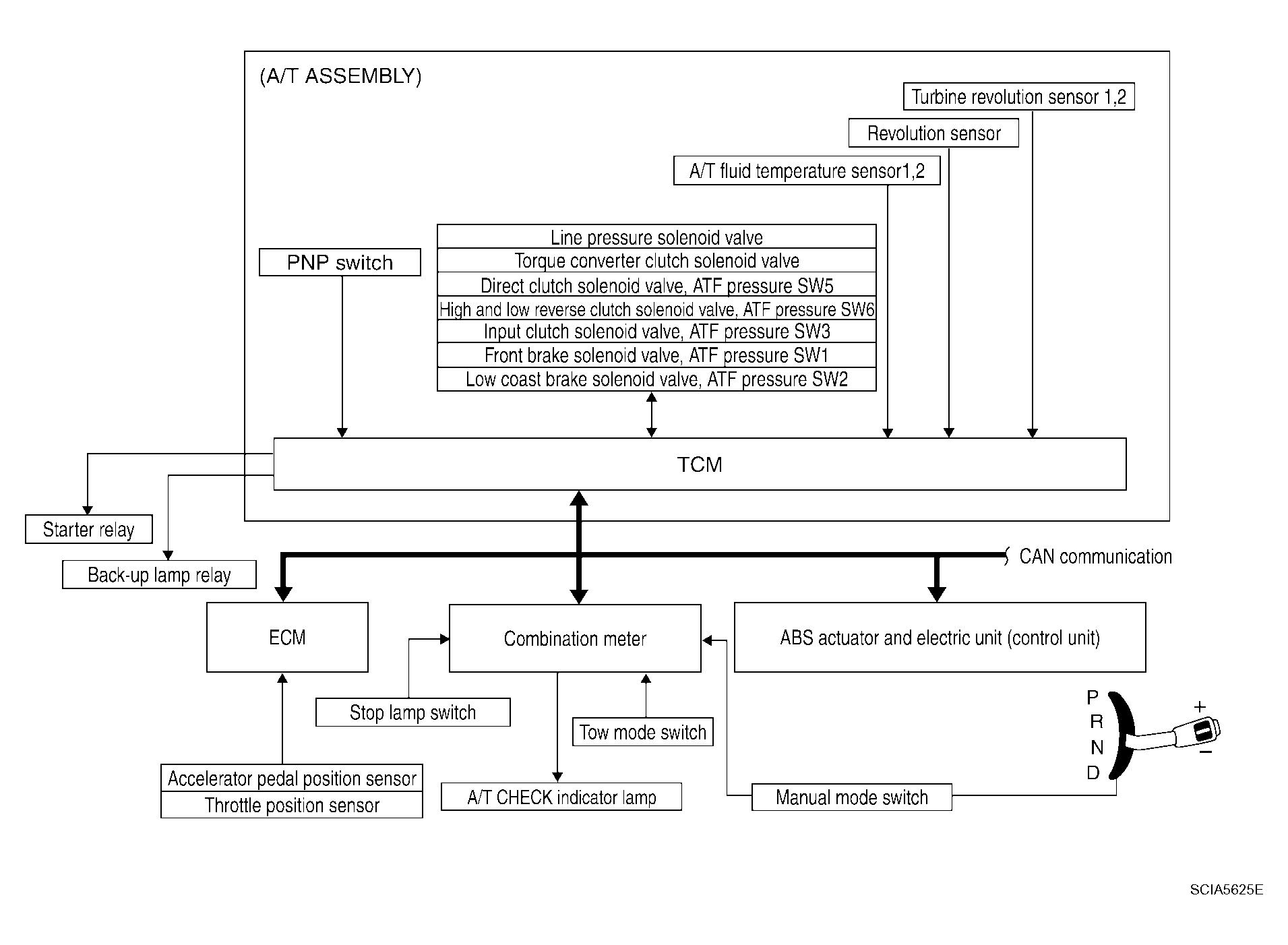

Fig 1: Identifying Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

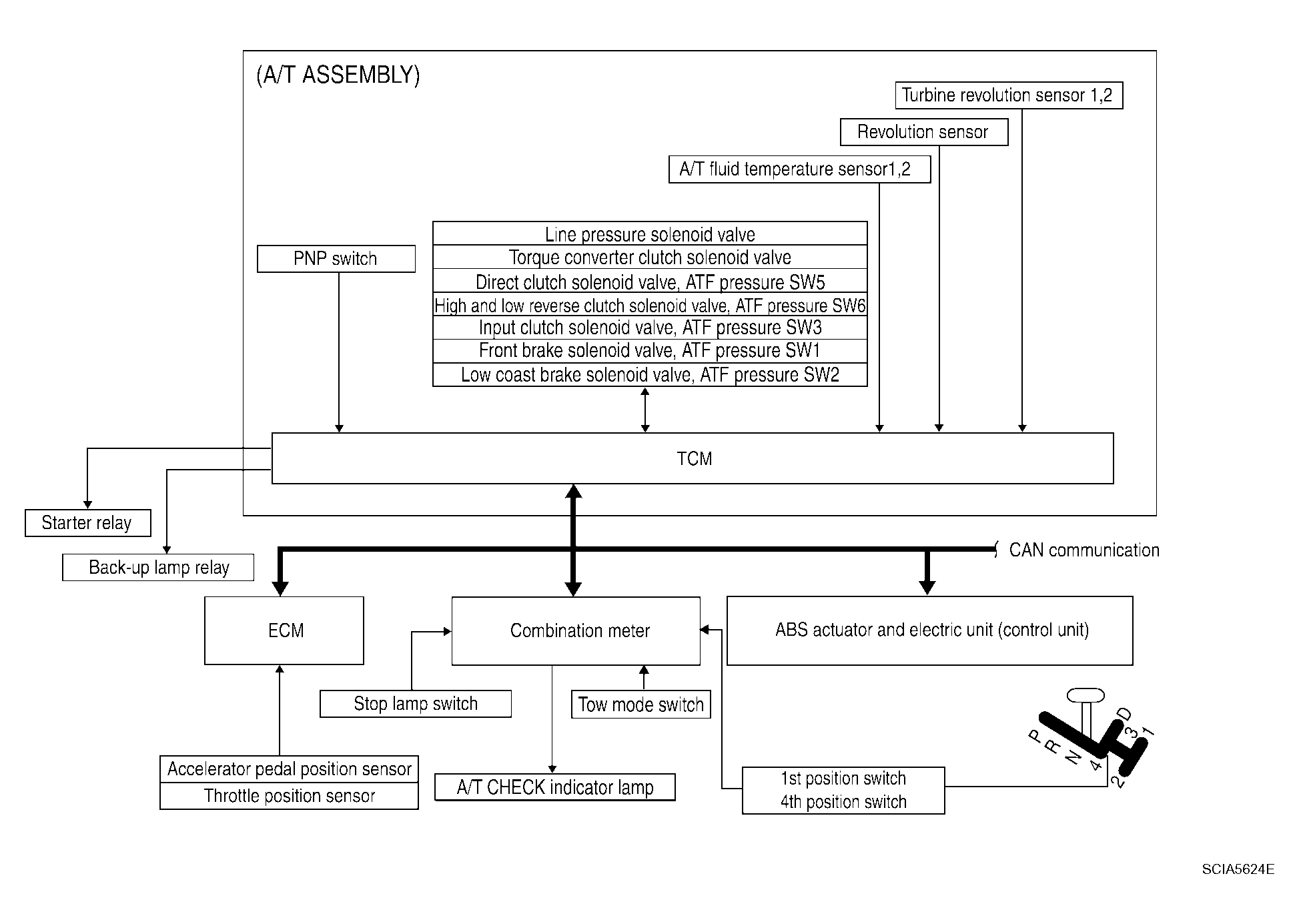

Fig 1: Identifying Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
