Assembly (2)

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install new O-ring to oil pump assembly.
    CAUTION:
    • Do not reuse O-ring.
    • Apply ATF to O-ring.

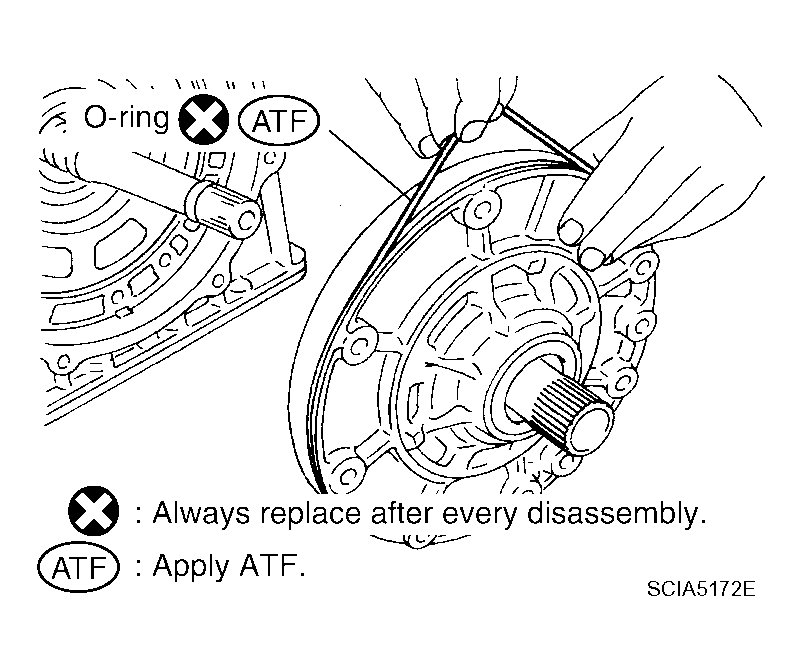

      Fig 1: Identifying O-Ring For Oil Pump Assembly
      G04186266Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install bearing race to oil pump assembly.
    CAUTION: Apply petroleum jelly to bearing race.

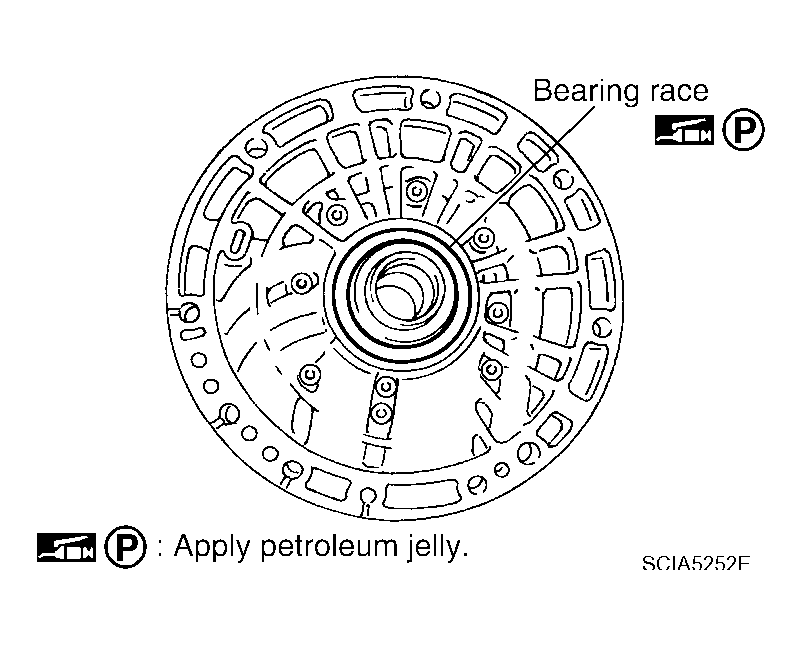

    Fig 2: Identifying Bearing Race For Oil Pump Assembly
    G04186267Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install oil pump assembly in transmission case.
    CAUTION: Apply ATF to oil pump radial bearing.
    Fig 3: Installing Oil Pump Assembly
    G04186268Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Apply recommended sealant (Genuine RTV Silicone Sealant or equivalent) to oil pump assembly as shown. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".
    CAUTION: Completely remove all moisture, oil and old sealant from the oil pump bolts and oil pump bolt surfaces.

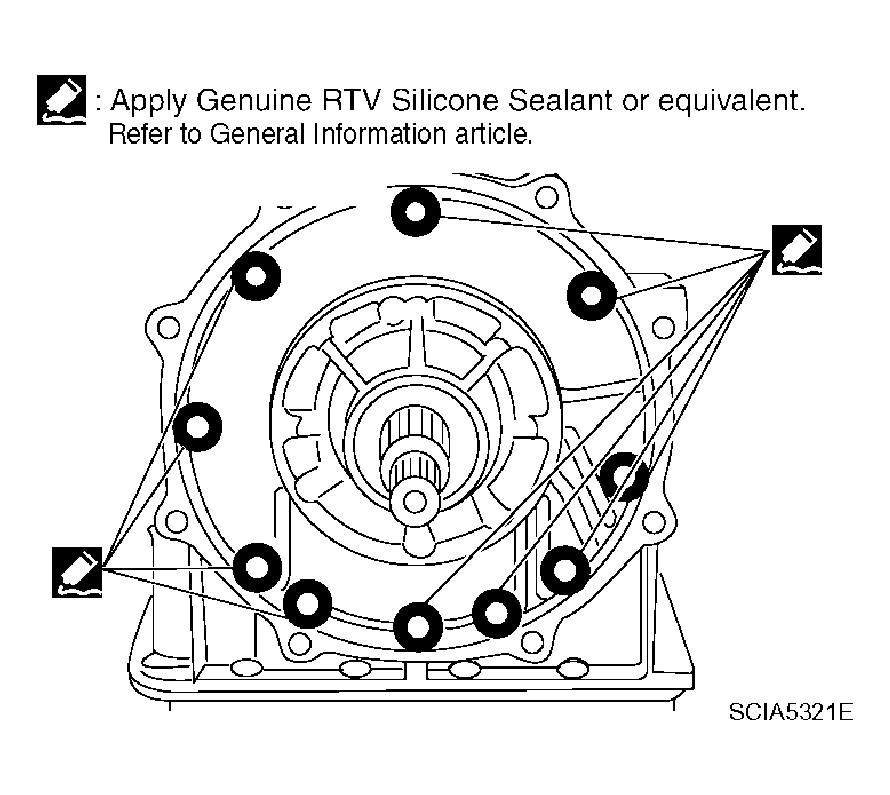

    Fig 4: Applying Recommended Sealant To Oil Pump Assembly
    G04186269Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Tighten oil pump bolts to specified torque. Refer to "COMPONENTS ".
    CAUTION: Apply ATF to oil pump bushing.
    Fig 5: Locating Oil Pump Bolts
    G04186270Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Install new O-ring to input clutch assembly.
    CAUTION:
    • Do not reuse O-ring.
    • Apply ATF to O-ring.
      Fig 6: Identifying O-Ring For Input Clutch Assembly
      G04186271Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Install converter housing to transmission case.
    CAUTION: Do not reuse self-sealing bolt.

    Converter housing bolt: 52 N.m (5.3 kg-m, 38 ft-lb)

    Self-sealing bolt: 61 N.m (6.2 kg-m, 45 ft-lb)

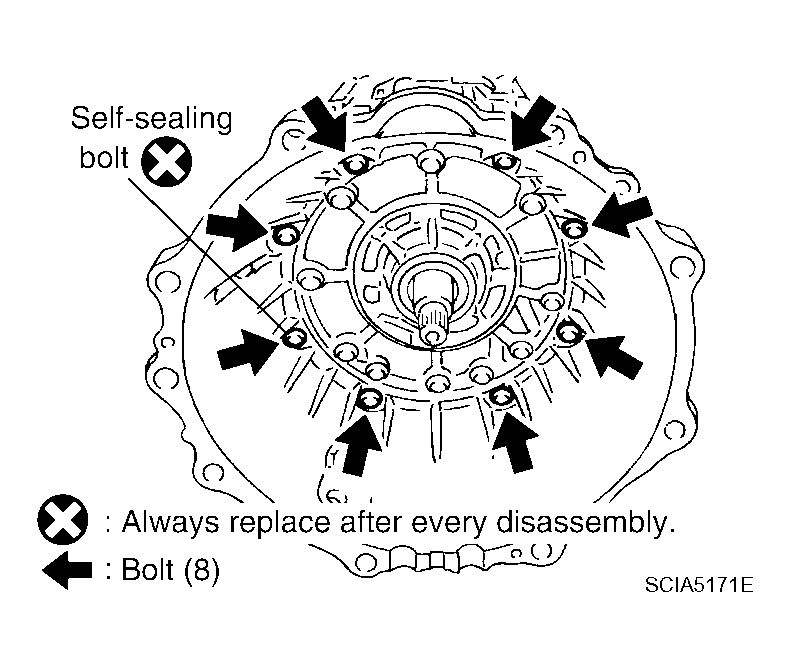

    Fig 7: Installing Converter Housing To Transmission Case
    G04186272Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Make sure that brake band does not close turbine revolution sensor hole.
    Fig 8: Locating Turbine Revolution Sensor Hole And Brake Band
    G04075663Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Install control valve with TCM.
    1. Install A/T fluid temperature sensor 2 to bracket.
      Fig 9: Locating A/T Fluid Temperature Sensor
      G04075652Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Install A/T fluid temperature sensor 2 (with bracket) in control valve with TCM. Tighten A/T fluid temperature sensor 2 bolt to the specified torque. Refer to "COMPONENTS ".
      CAUTION: Adjust bolt hole of bracket to bolt hole of control valve with TCM.
      Fig 10: Identifying A/T Fluid Temperature Sensor 2
      G04128443Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Install new O-ring to A/T assembly harness connector.
      CAUTION:
      • Do not reuse O-ring.
      • Apply ATF to O-ring.
        Fig 11: Locating Harness Connector O Ring
        G04075653Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Connect TCM connector and park/neutral position (PNP) switch connector.
      Fig 12: Locating TCM And Park Neutral Position Switch Connectors
      G04075656Courtesy of NISSAN MOTOR CO., U.S.A.
    5. Install A/T assembly harness connector to control valve with TCM.
      Fig 13: Identifying A/T Assembly Harness Connector To Control Valve With TCM
      G04186278Courtesy of NISSAN MOTOR CO., U.S.A.
    6. Connect TCM connectors.
      Fig 14: Locating TCM Connectors
      G04075654Courtesy of NISSAN MOTOR CO., U.S.A.
    7. Install control valve with TCM in transmission case.
      CAUTION:
      • Make sure that turbine revolution sensor securely installs into turbine revolution sensor hole.
      • Adjust A/T assembly harness connector of control valve with TCM to terminal hole of transmission case.
      • Hang down revolution sensor harness toward outside so as not to disturb installation of control valve with TCM.
        Fig 15: Locating Turbine Revolution Sensor Hole And Brake Band
        G04075663Courtesy of NISSAN MOTOR CO., U.S.A.
      • Assemble it so that manual valve cutout is engaged with manual plate projection.

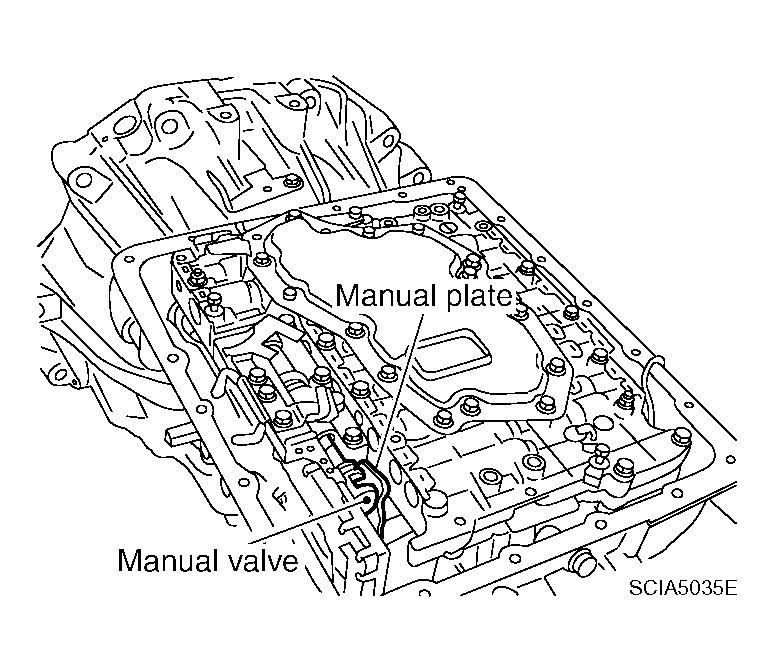

        Fig 16: Locating Manual Valve And Manual Plate
        G04186281Courtesy of NISSAN MOTOR CO., U.S.A.
    8. Install bolts A, B and C to control valve with TCM.

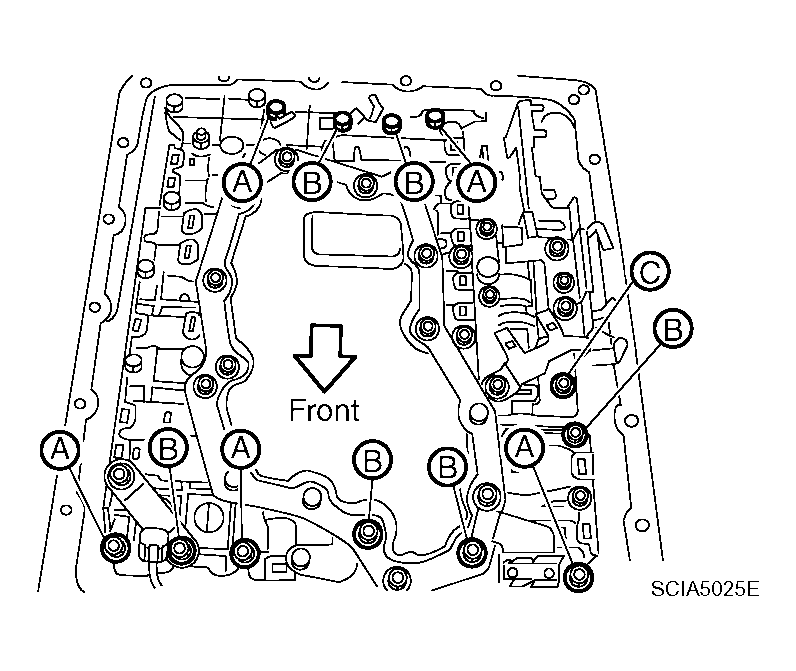

      Fig 17: Locating Bolts (1 Of 2)
      G04186282Courtesy of NISSAN MOTOR CO., U.S.A.
      BOLT SPECIFICATION

      Bolt symbol Length: mm (in) Number of bolts
      A 42 (1.65) 5
      B 55 (2.17) 6
      C 40 (1.57) 1
    9. Tighten bolt 1, 2 and 3 temporarily to prevent dislocation. Then tighten them in order (1 --> 2 --> 3), and then tighten other bolts.
    10. Tighten control valve with TCM bolts to the specified torque. Refer to "COMPONENTS ".

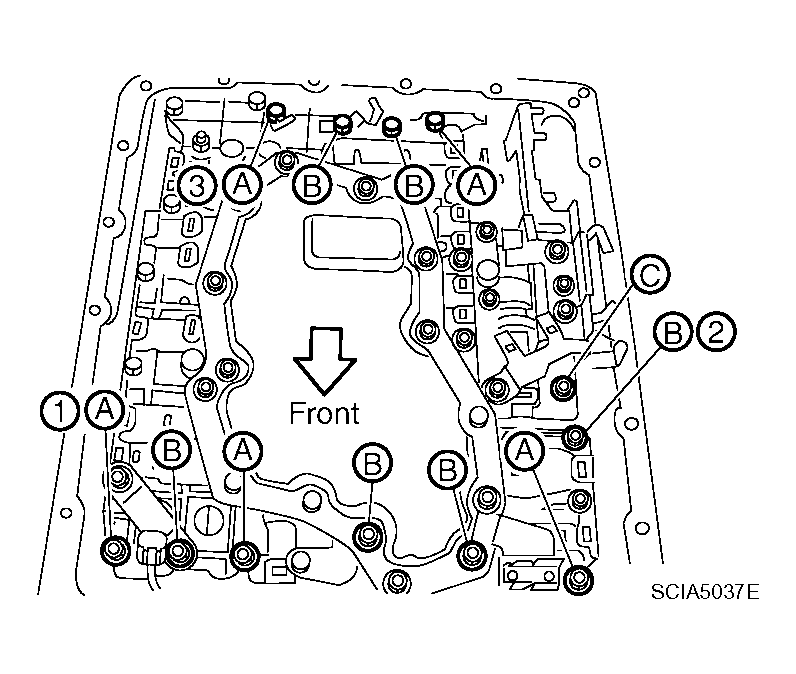

      Fig 18: Locating Bolts (2 Of 2)
      G04186283Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Connect A/T fluid temperature sensor 2 connector.
    Fig 19: Locating A/T Fluid Temperature Sensor 2
    G04075645Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Securely fasten terminal cord assembly and A/T fluid temperature sensor 2 harness with terminal clips.
    Fig 20: Locating A/T Fluid Temperatrue Sensor 2 And Terminal Clips
    G04075646Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Connect revolution sensor connector.

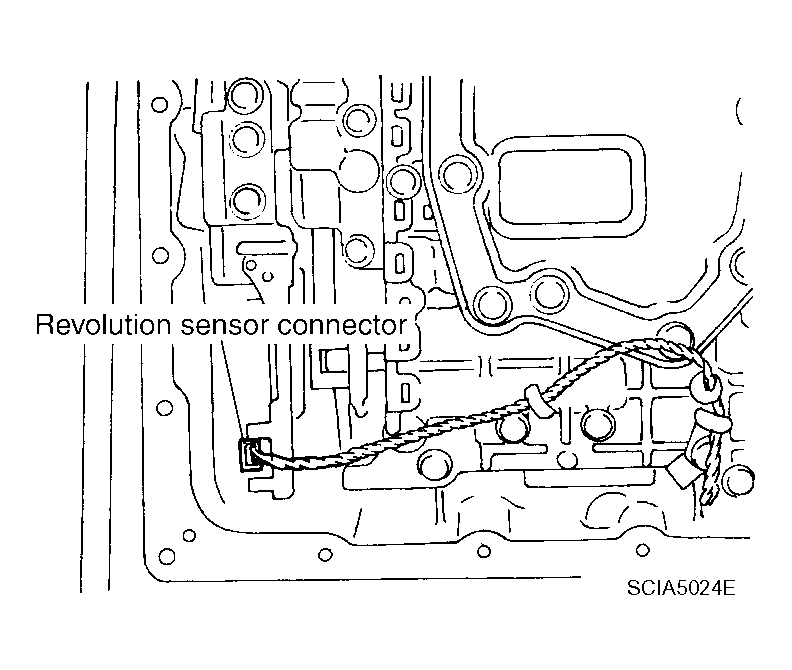

    Fig 21: Identifying Revolution Sensor Connector
    G04186286Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Securely fasten revolution sensor harness with terminal clips.

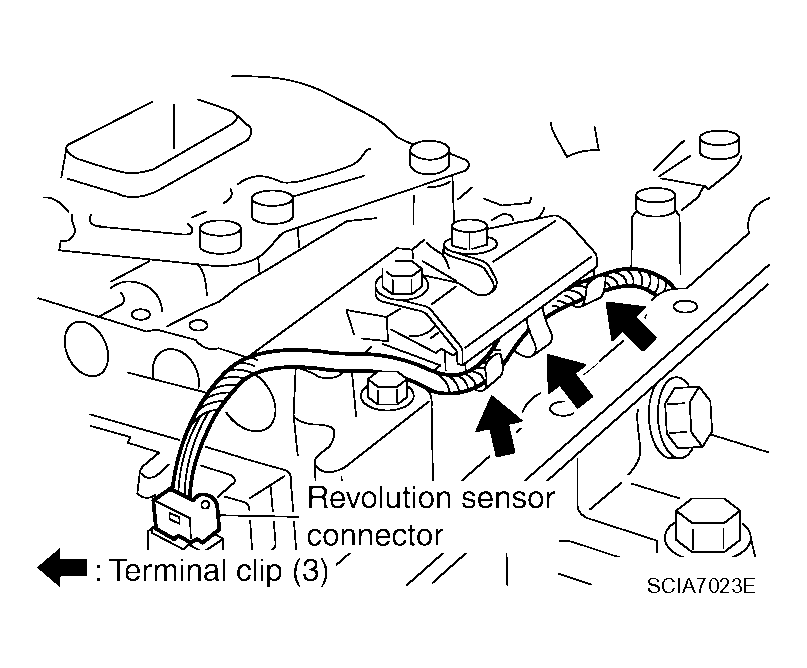

    Fig 22: Identifying Revolution Sensor Connector And Terminal Clips
    G04186287Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Pull down A/T assembly harness connector.
    CAUTION: Be careful not to damage connector.
    Fig 23: Identifying A/T Assembly Harness Connector
    G04186288Courtesy of NISSAN MOTOR CO., U.S.A.
  15. Install snap ring to A/T assembly harness connector.

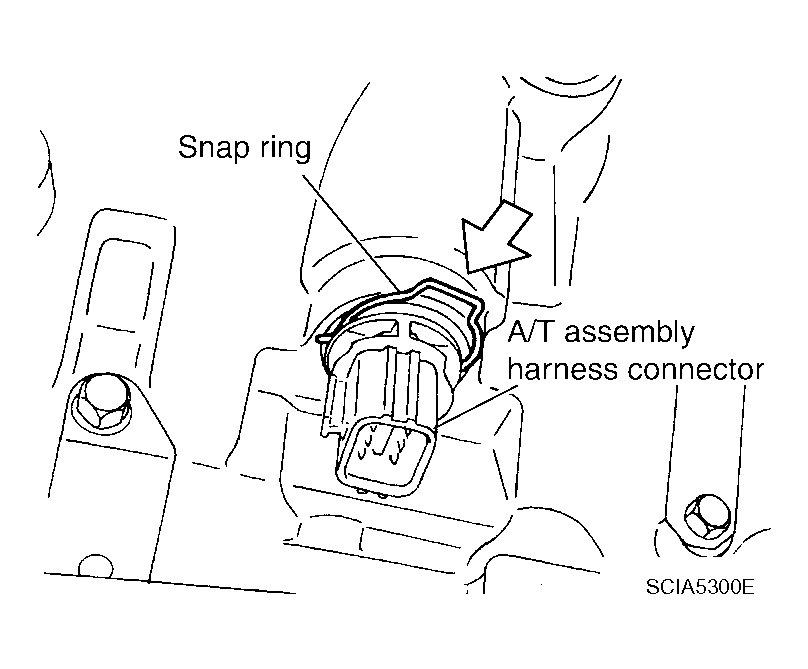

    Fig 24: Identifying Snap Ring To A/T Assembly Harness Connector
    G04186289Courtesy of NISSAN MOTOR CO., U.S.A.
  16. Install the oil pan magnets as shown.
    Fig 25: View Of Magnets In Oil Pan
    G04075644Courtesy of NISSAN MOTOR CO., U.S.A.
  17. Install the oil pan and new oil pan gasket.
    CAUTION:
    • Do not reuse the oil pan gasket.
    • Completely remove all moisture, oil and old gasket from the oil pan gasket mating surfaces and holes.
    • Always replace the oil pan bolts as they are self-sealing.
    • Be sure the oil pan drain plug hole is located to the rear of the transmission assembly.
    • Partially install the oil pan bolts in a criss-cross pattern to prevent dislocation of the gasket.
    • Be careful not to pinch harnesses.
      Fig 26: Identifying Oil Pan Bolts
      G04075672Courtesy of NISSAN MOTOR CO., U.S.A.
  18. Tighten new oil pan bolts in numerical order as shown.

    Oil pan bolts: 7.9 N.m (0.81 kg-m, 70 in-lb)

    Fig 27: Identifying Oil Pan Bolts Tightening Sequence
    G04186292Courtesy of NISSAN MOTOR CO., U.S.A.
  19. Install drain plug in oil pan with new gasket.
    CAUTION: Do not reuse the drain plug gasket.

    Drain plug: 34 N.m (3.5 kg-m, 25 ft-lb)

  20. Install torque converter.
    1. Pour ATF into torque converter.
      • Approximately 2 liter (2-1/8 US qt, 1-3/4 Imp qt) of fluid is required for a new torque converter.
      • When reusing old torque converter, add the same amount of fluid as was drained.
        Fig 28: Pouring ATF Into Torque Converter
        G04186293Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Install torque converter while aligning notches of torque converter with notches of oil pump.
      CAUTION: Install torque converter while rotating it.
      Fig 29: Identifying Torque Converter
      G04186294Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Measure distance "A" to check that torque converter is in proper position.

      Distance "A": 24.0 mm (0.94 in) or more

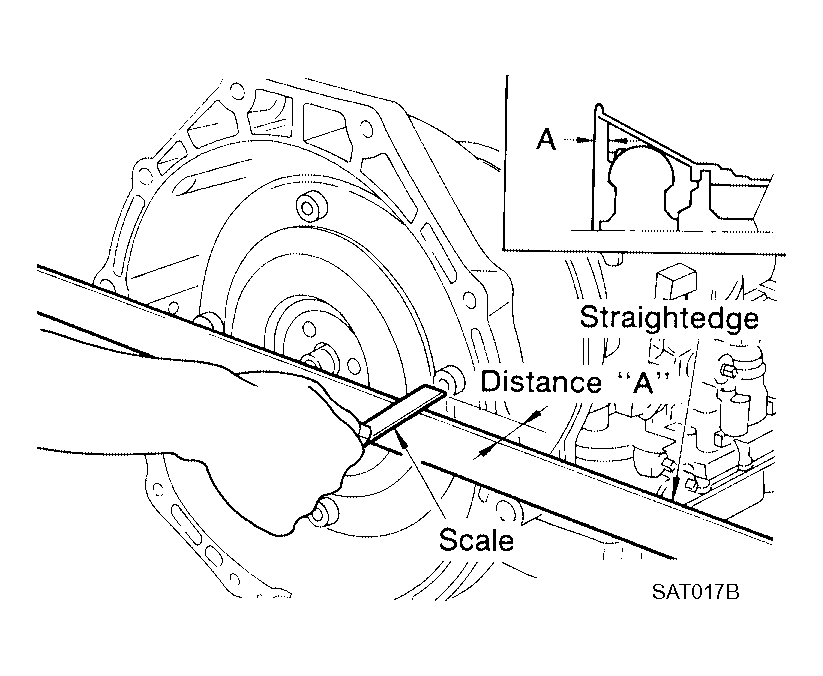

      Fig 30: Checking Torque Converter Dimension
      G04186295Courtesy of NISSAN MOTOR CO., U.S.A.
