Oil Pump: Assembly

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Install new O-ring to oil pump cover.
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.

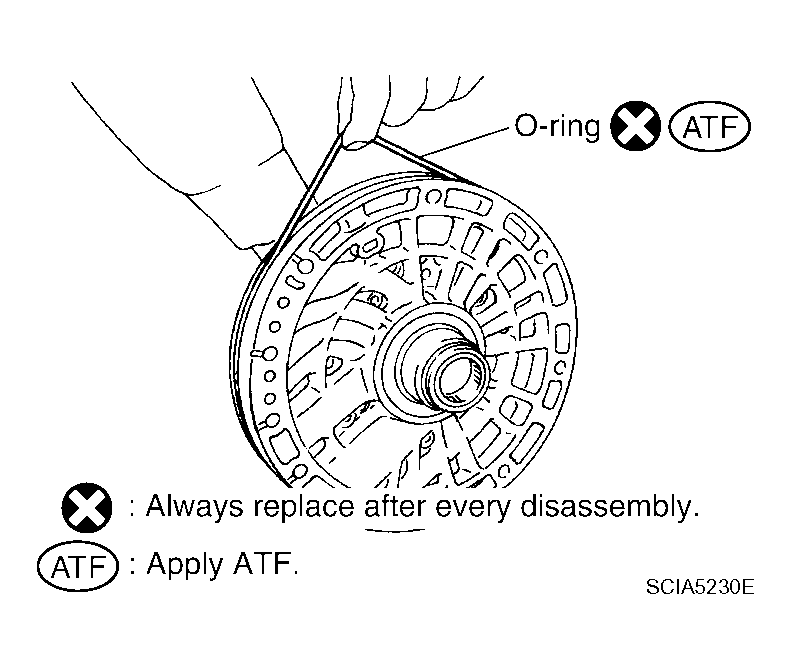

  Fig 1: Identifying O-Ring For Oil Pump Cover
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install new O-ring to oil pump housing.
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.

  Fig 2: Identifying O-Ring For Oil Pump Housing
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install new oil pump housing oil seal to the oil pump housing until it is flush with the face of oil pump housing using Tool.
CAUTION:
- Do not reuse oil seal.
- Apply ATF to oil seal.
Tool number: ST33400001 (J-26082)

Fig 3: Installing Oil Pump Housing Oil Seal To Oil Pump Housing
Courtesy of NISSAN MOTOR CO., U.S.A.
Install oil pump housing in oil pump cover. Tighten oil pump housing bolts to the specified torque. Refer to "COMPONENTS ".

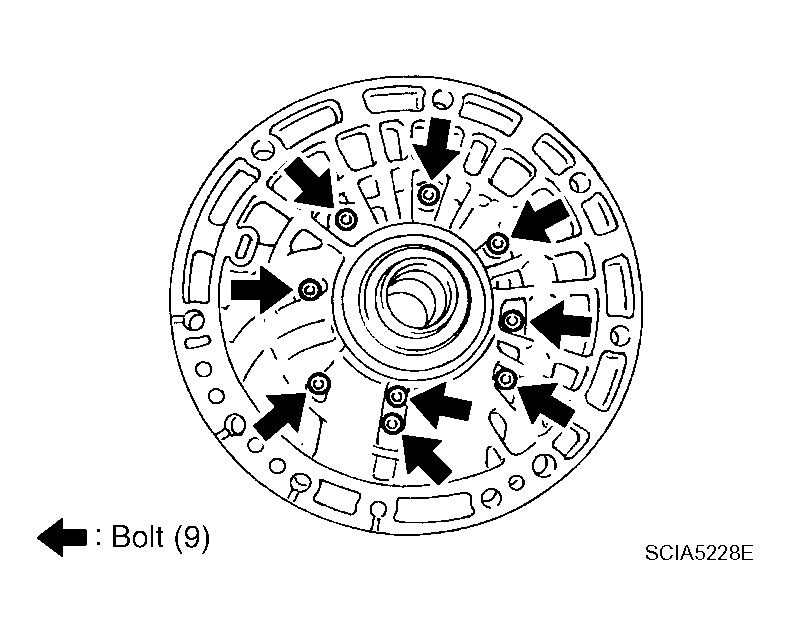

Fig 4: Locating Oil Pump Housing Bolts
