Testing Procedure

WARNING: This page is about a different car, the 2003 Lexus LS 430, 2002 Lexus LS 430, and 2001 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

For wiring diagram, see Fig 1. For testing procedure, see Fig 2 and Fig 3 .

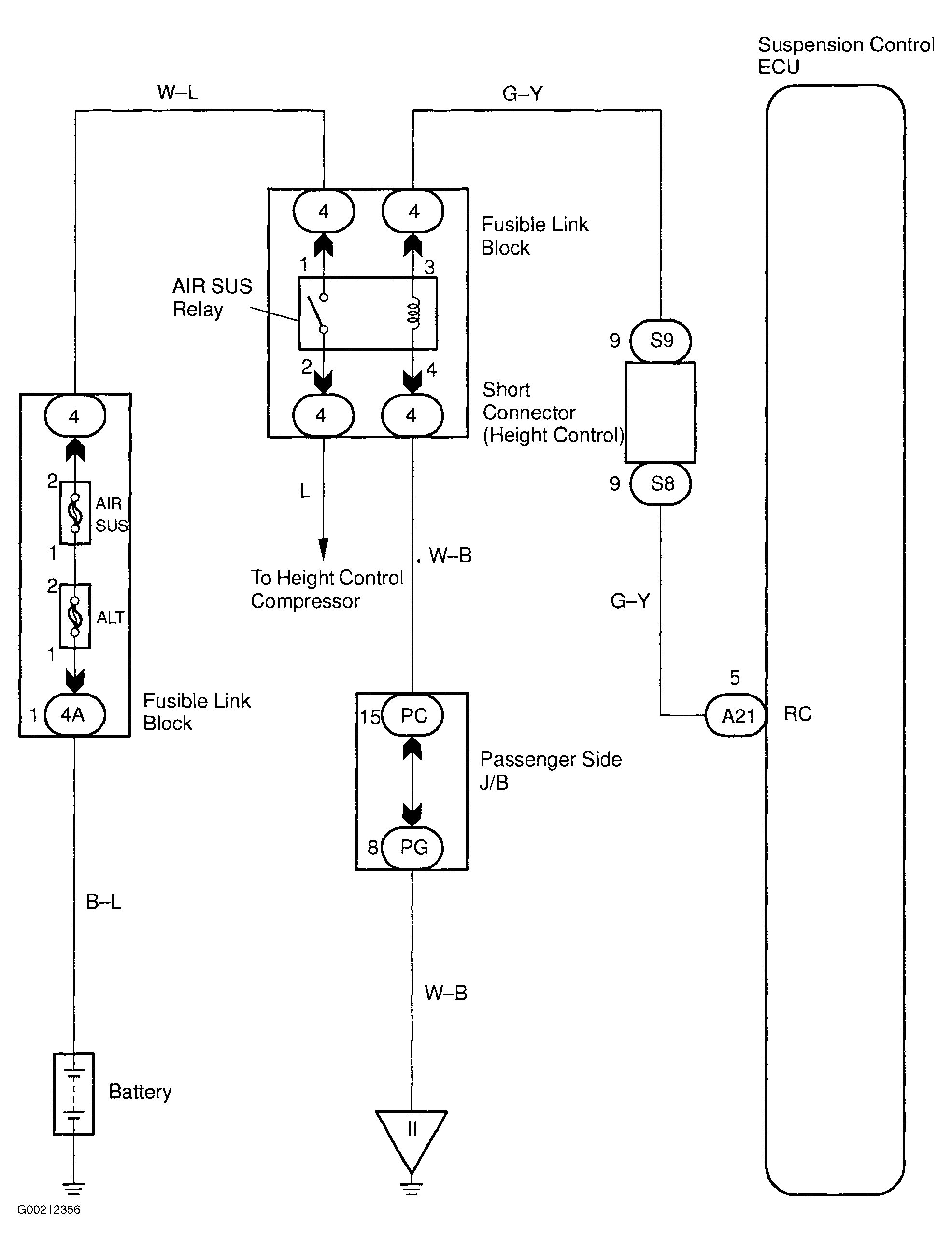

Fig 1: Wiring Diagram AIR SUS Relay Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

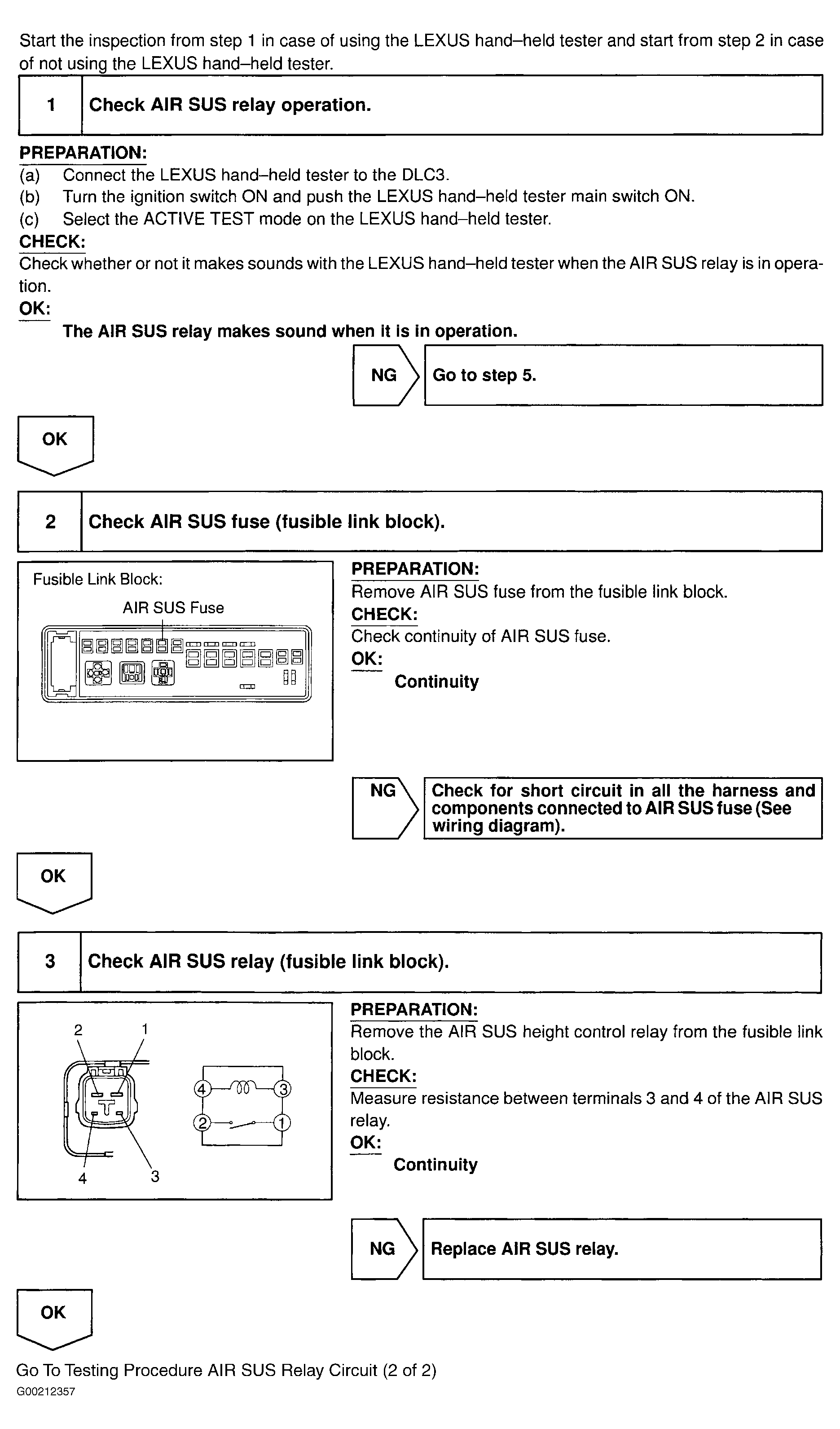

Fig 2: Testing Procedure AIR SUS Relay Circuit (1 Of 2)

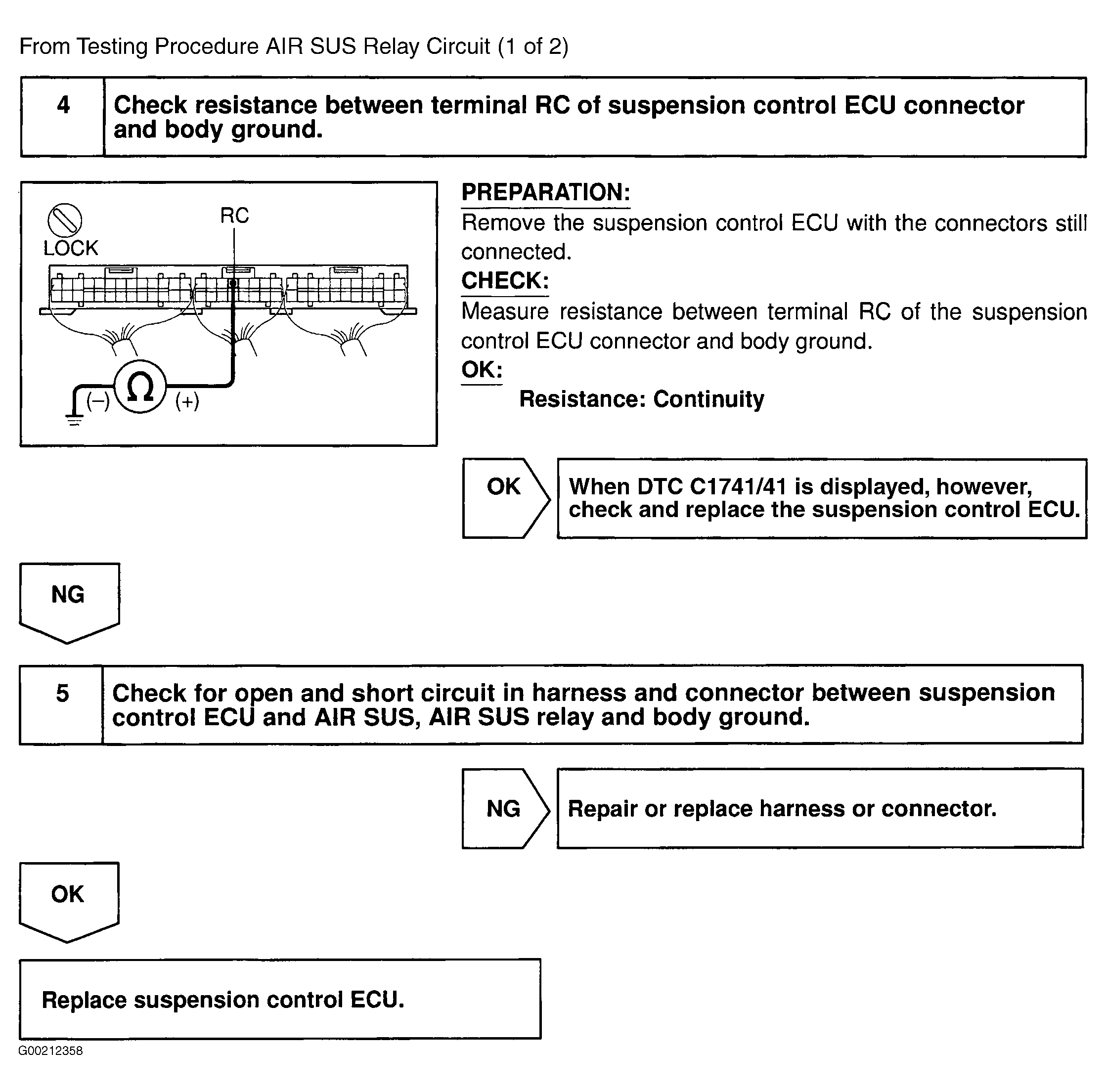

Fig 3: Testing Procedure AIR SUS Relay Circuit (2 Of 2)
