Wiring Diagram - COMPAS

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For PG-POWER references, refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

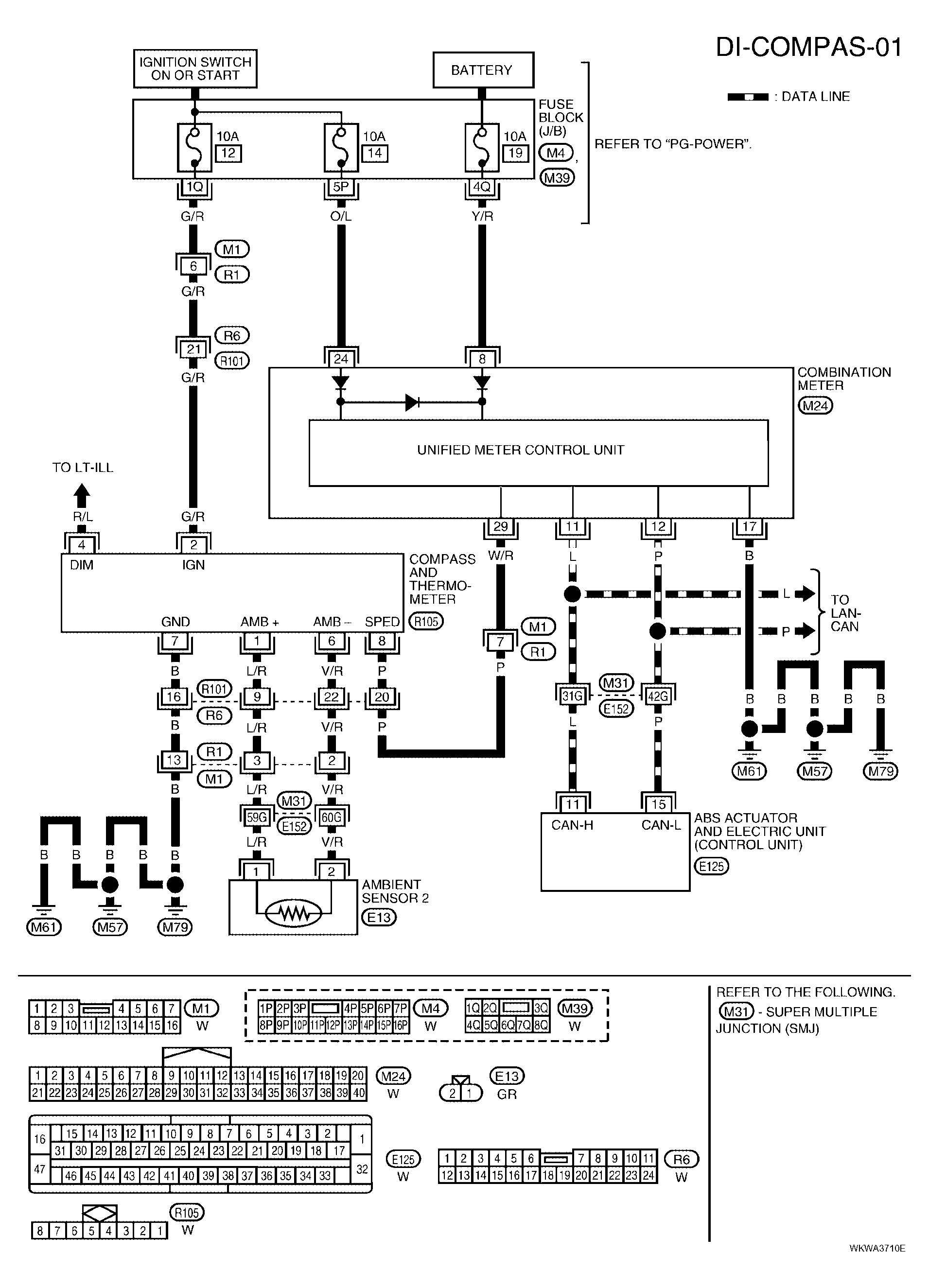

Fig 1: Identifying Wiring Diagram (DI-COMPAS-01)

Courtesy of NISSAN MOTOR CO., U.S.A.
