Disassembly and Assembly: Assembly: Journal

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Assemble the journal bearings. Apply multipurpose grease on the bearing inner surface.
NOTE: During assembly, use caution so that the needle bearings do not fall down.

Fig 1: Assembling Journal Bearings
Courtesy of NISSAN MOTOR CO., U.S.A.
Select snap rings that will provide the specified play in an axial direction of the journal, and install them. Refer to "SNAP RING ".
NOTE: Select snap rings with a difference in thickness at both sides within 0.02 mm (0.0008 in).

Fig 2: Identifying Snap Rings
Courtesy of NISSAN MOTOR CO., U.S.A.

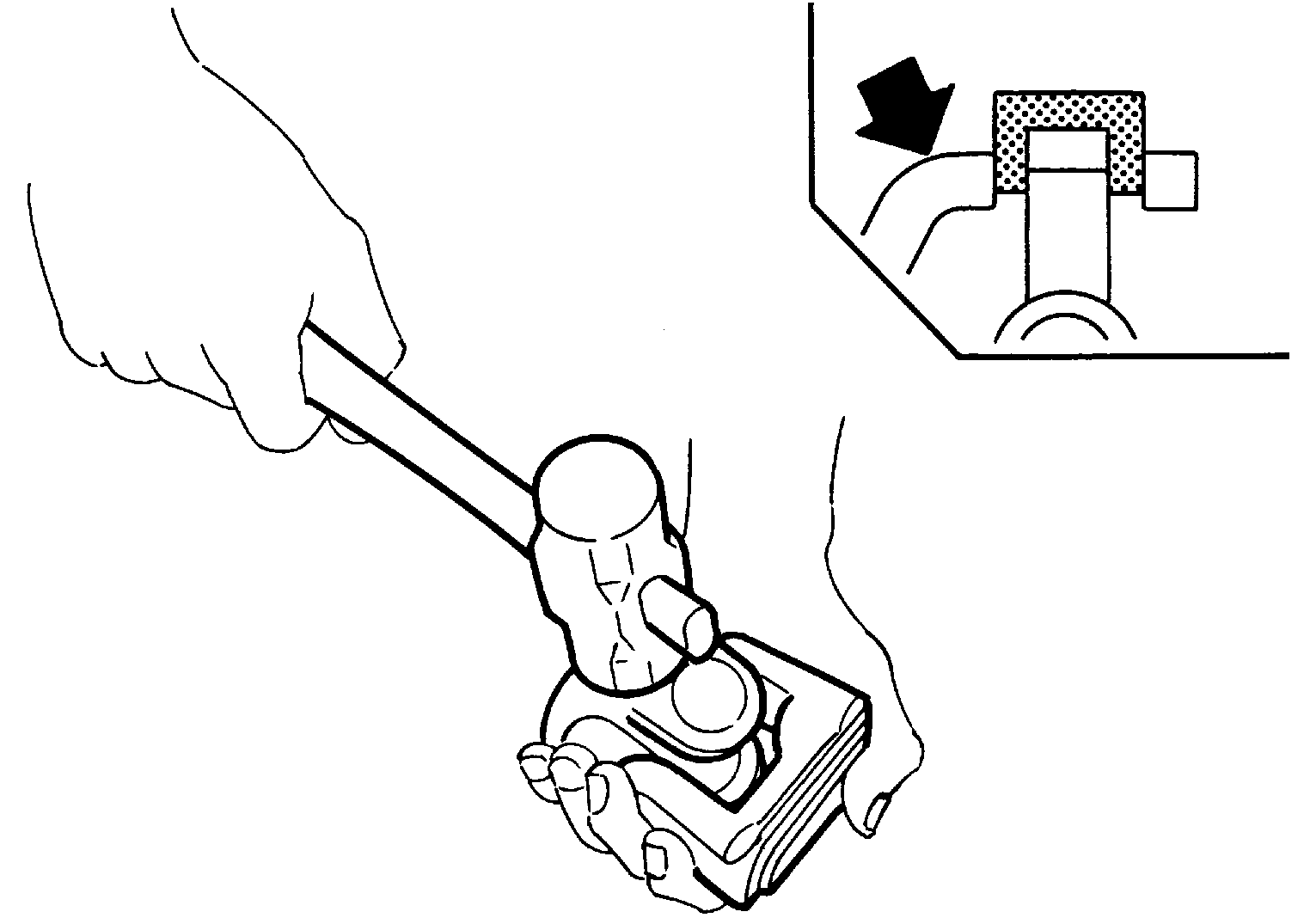

Adjust the thrust clearance between the bearing and snap ring to zero by tapping the yoke.

Fig 3: Removing U-Joint Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
Make sure that the journal moves smoothly and is below the propeller shaft joint flex effort specification.
Propeller shaft joint flex effort: 1.96 N.m (0.20 kg-m, 17 in-lb) or less

Fig 4: Identifying Journal Movement
Courtesy of NISSAN MOTOR CO., U.S.A.
