Removal and Installation: Notes

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

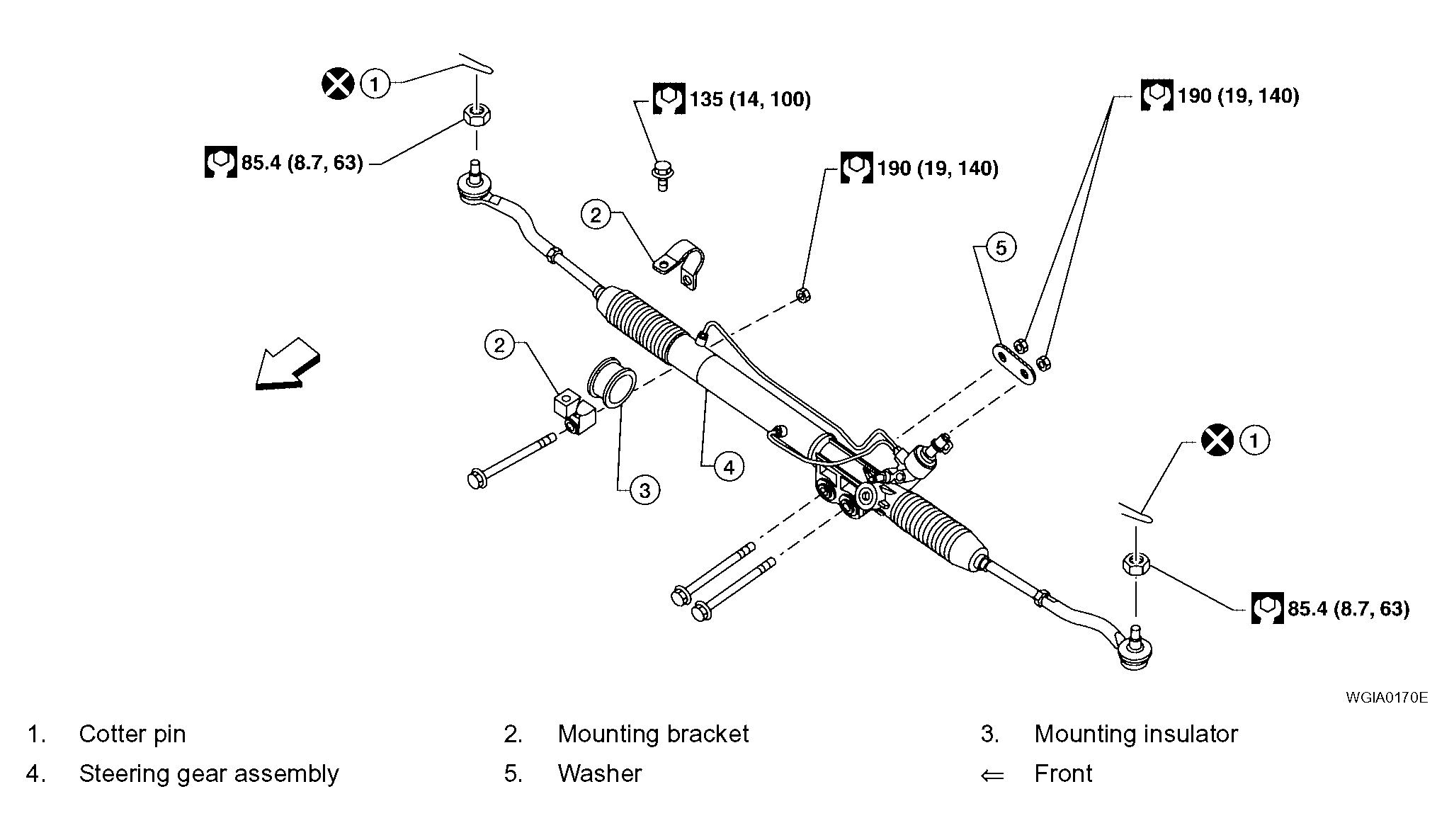

Fig 1: Removing/Installing Of Power Steering Gear And Linkage
G04175620Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Spiral cable may snap due to steering operation if the steering column is separated from the steering gear assembly. Therefore secure the steering wheel to avoid turning.
