Abs Motor
WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

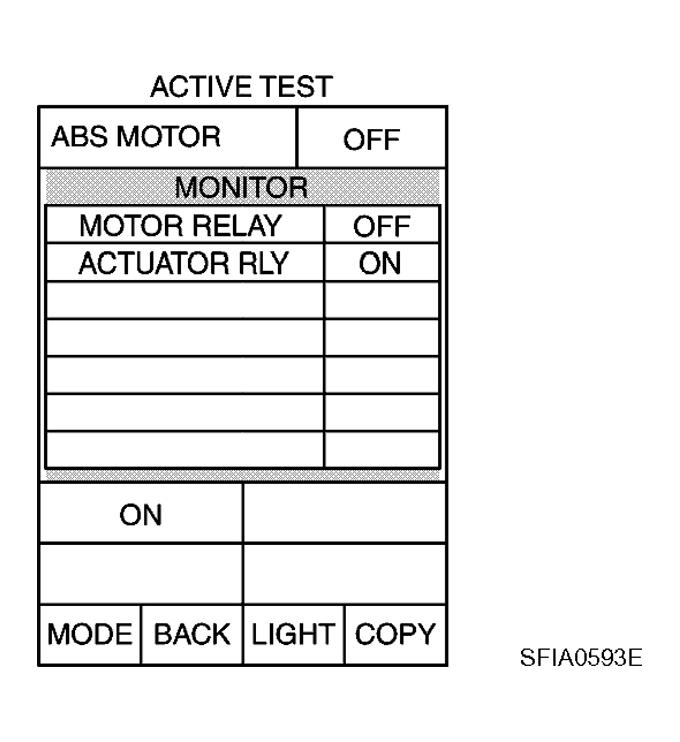

Touch "ON" and "OFF" on the screen. Check that ABS motor relay operates as shown in ABS MOTOR RELAY OPERATION CHART .
ABS MOTOR RELAY OPERATION CHART
| Operation | ON | OFF |
|---|---|---|
| MOTOR RELAY | ON | OFF |
| ACTUATOR RELAY | ON | ON |
NOTE:
- If active test is performed with brake pedal depressed, pedal stroke may change. This is normal.
- "TEST IS STOPPED" is displayed approximately 10 seconds after operation starts.
