Description & Operation: Input/Output

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

For input/output identification, see Fig 1 .

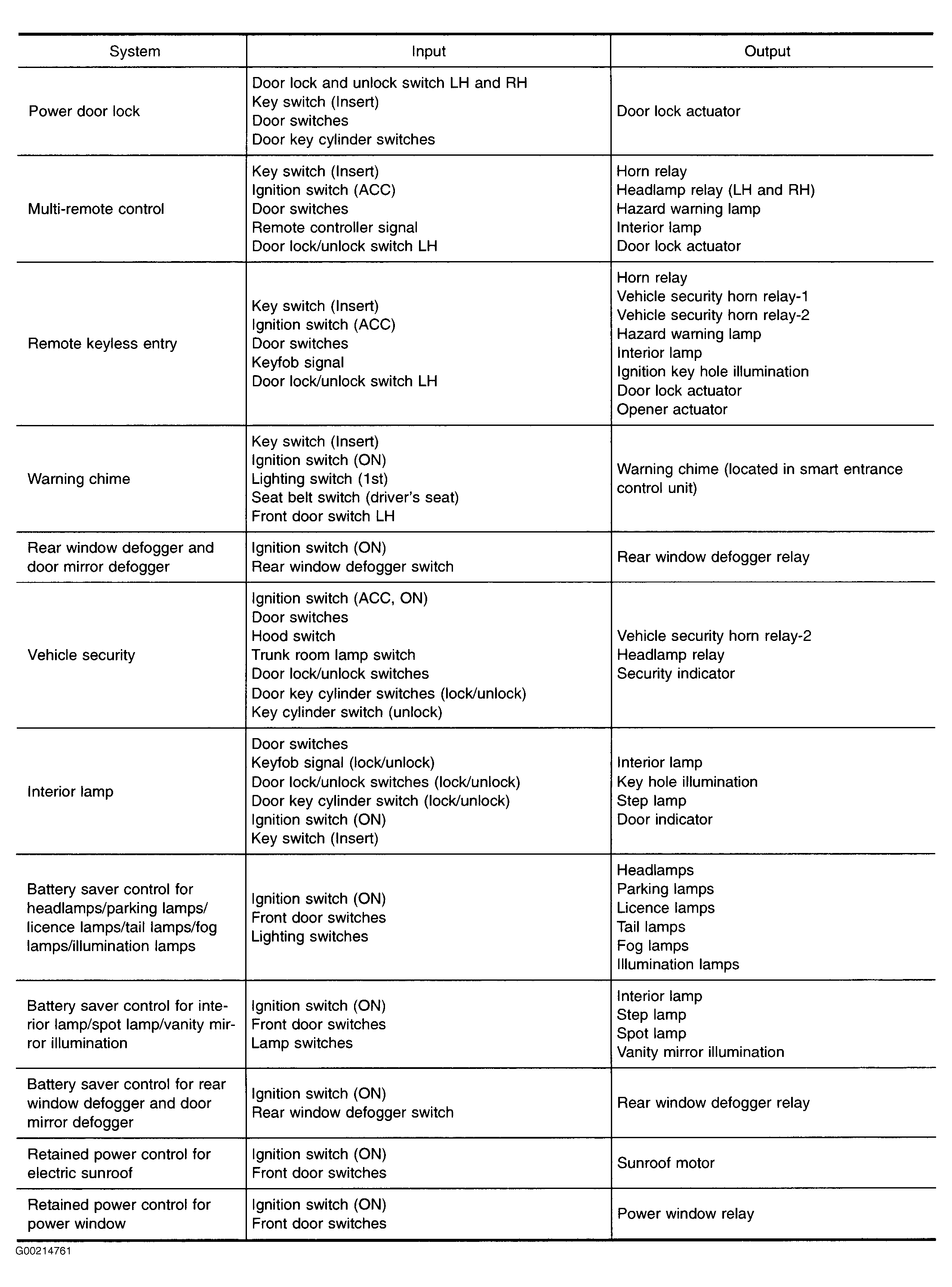

Fig 1: Identifying Inputs/Outputs

Courtesy of NISSAN MOTOR CO., U.S.A.
