Wiring Diagram - COMBSW

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For PG references see POWER SUPPLY, GROUND AND CIRCUIT ELEMENTS

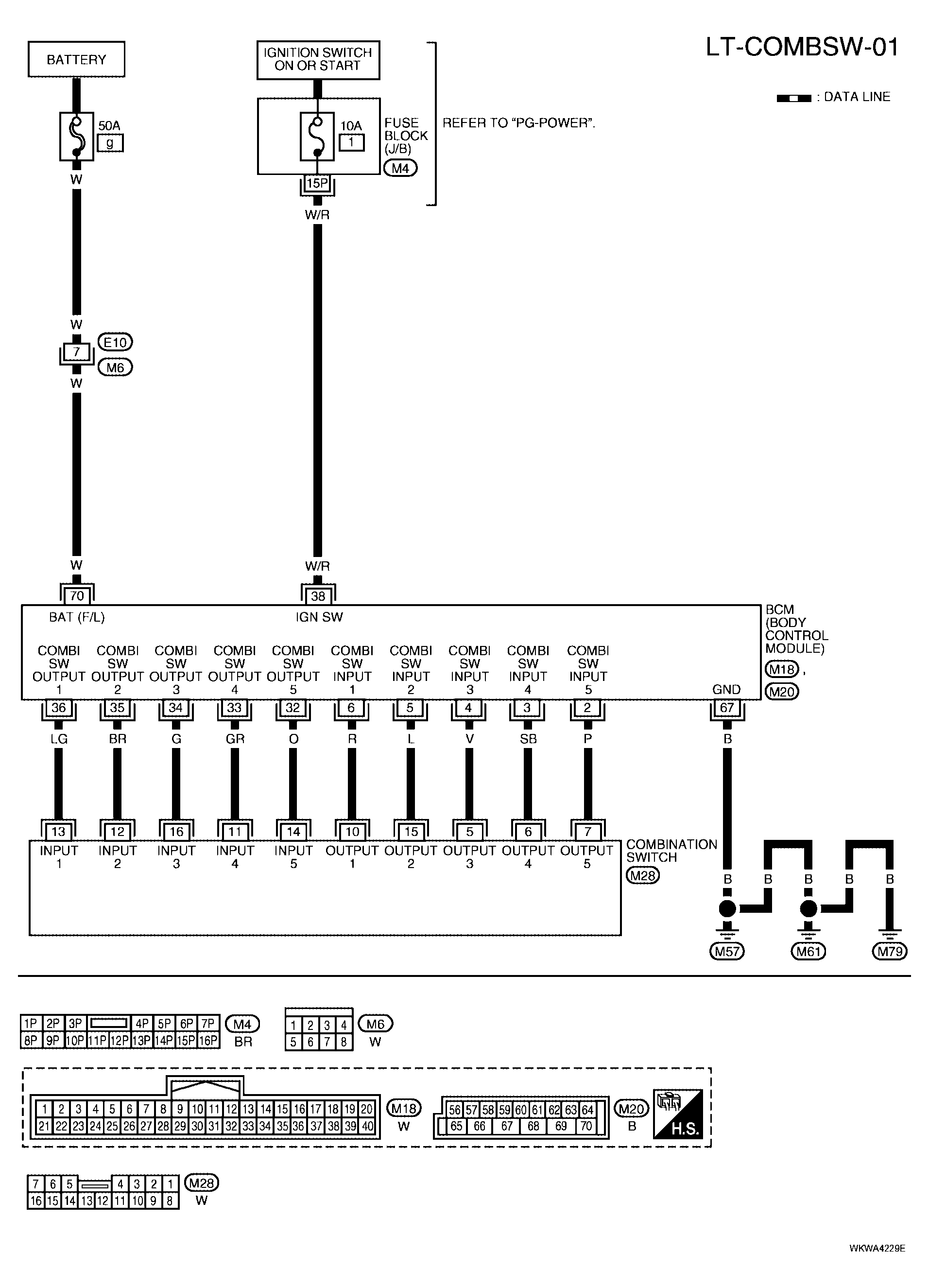

Fig 1: LT-COMBSW-01 Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
