Horn Reminder Test

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For wiring diagrams, see WIRING DIAGRAMS .

For horn reminder test, see Fig 1 -Fig 6 .

Fig 1: Identifying Horn Reminder Test, Step 1

G00218330

Courtesy of NISSAN MOTOR CO., U.S.A.

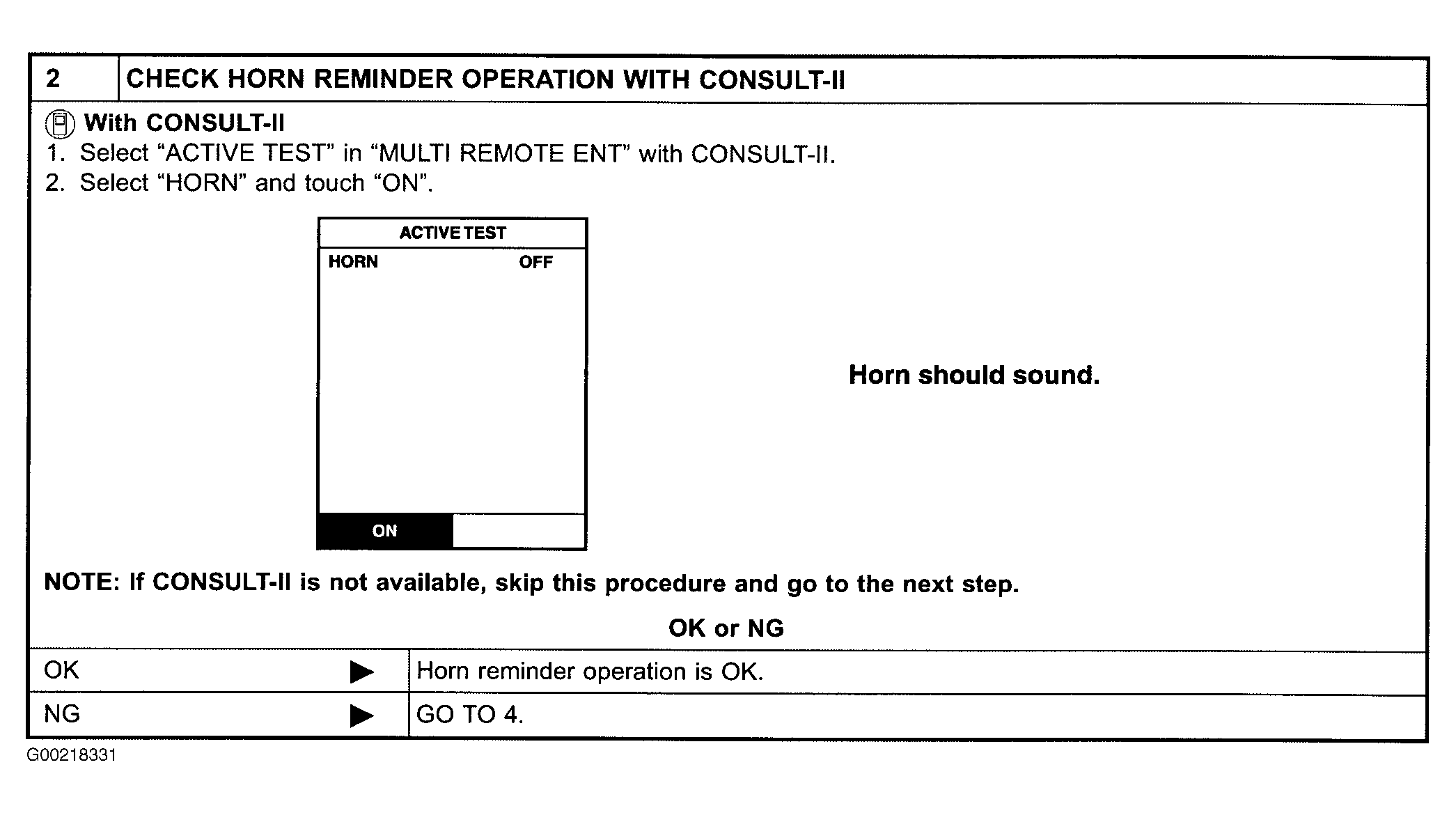

Fig 2: Identifying Horn Reminder Test, Step 2

G00218331

Courtesy of NISSAN MOTOR CO., U.S.A.

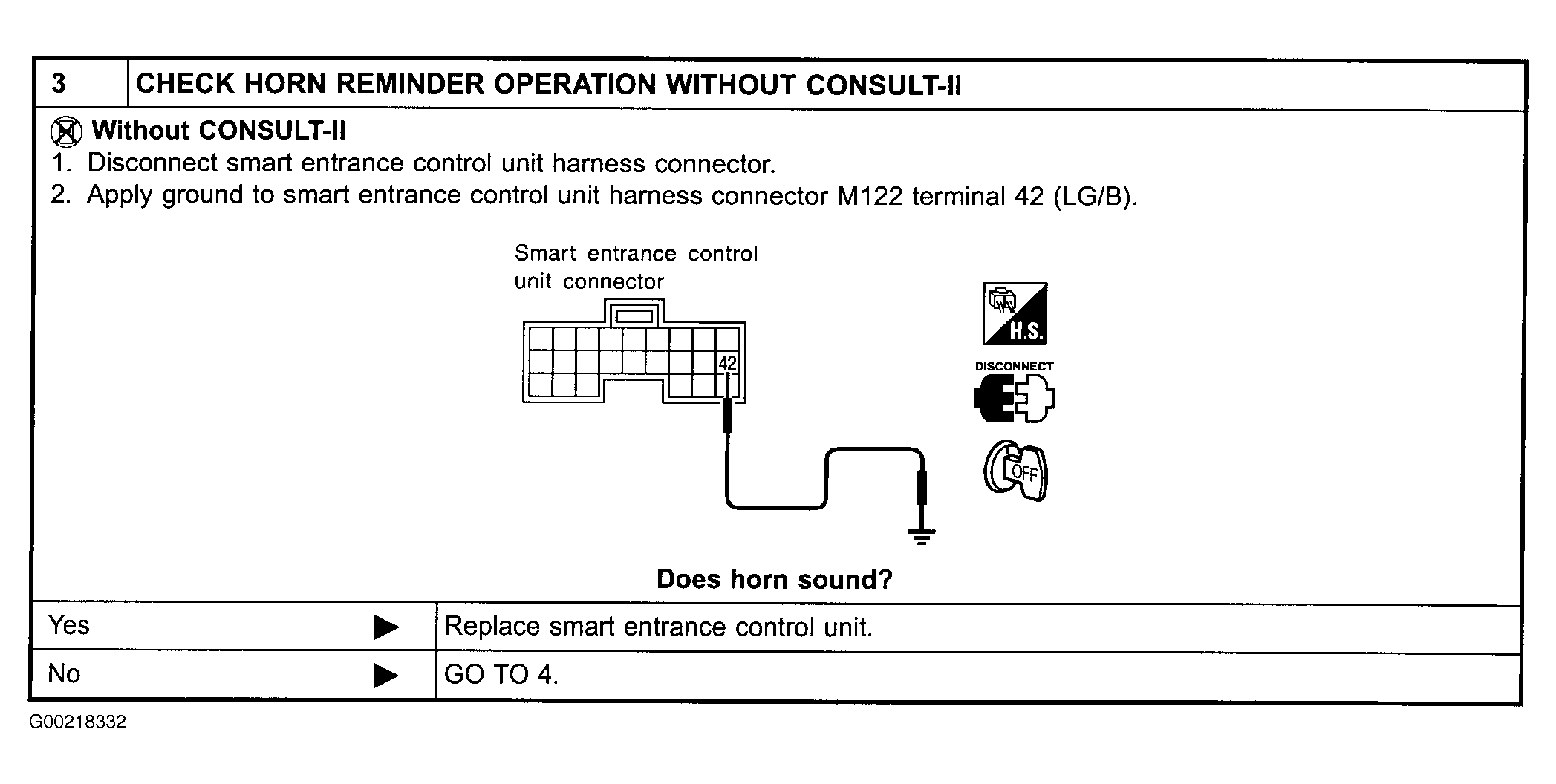

Fig 3: Identifying Horn Reminder Test, Step 3

G00218332

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying Horn Reminder Test, Step 4

G00218333

Courtesy of NISSAN MOTOR CO., U.S.A.

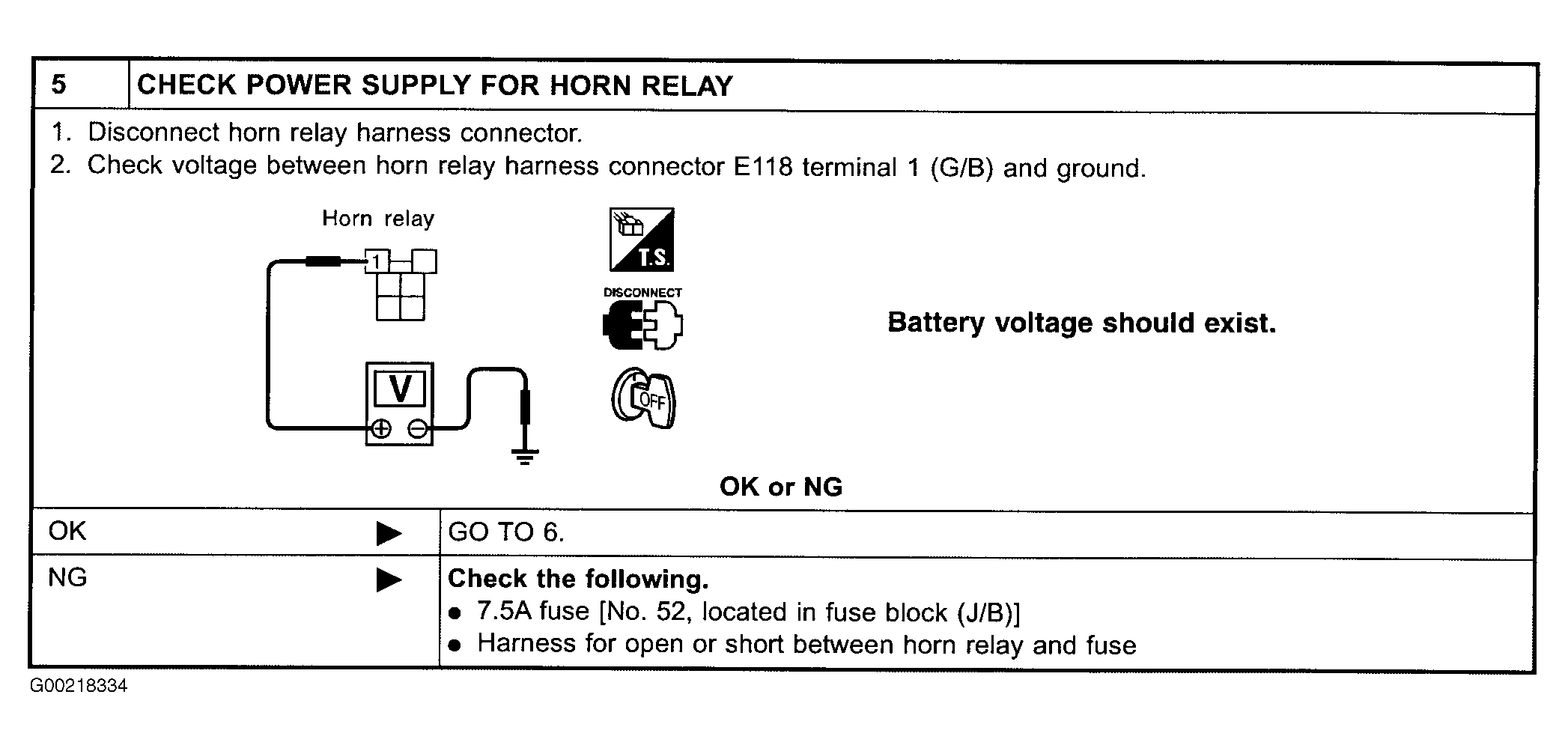

Fig 5: Identifying Horn Reminder Test, Step 5

G00218334

Courtesy of NISSAN MOTOR CO., U.S.A.

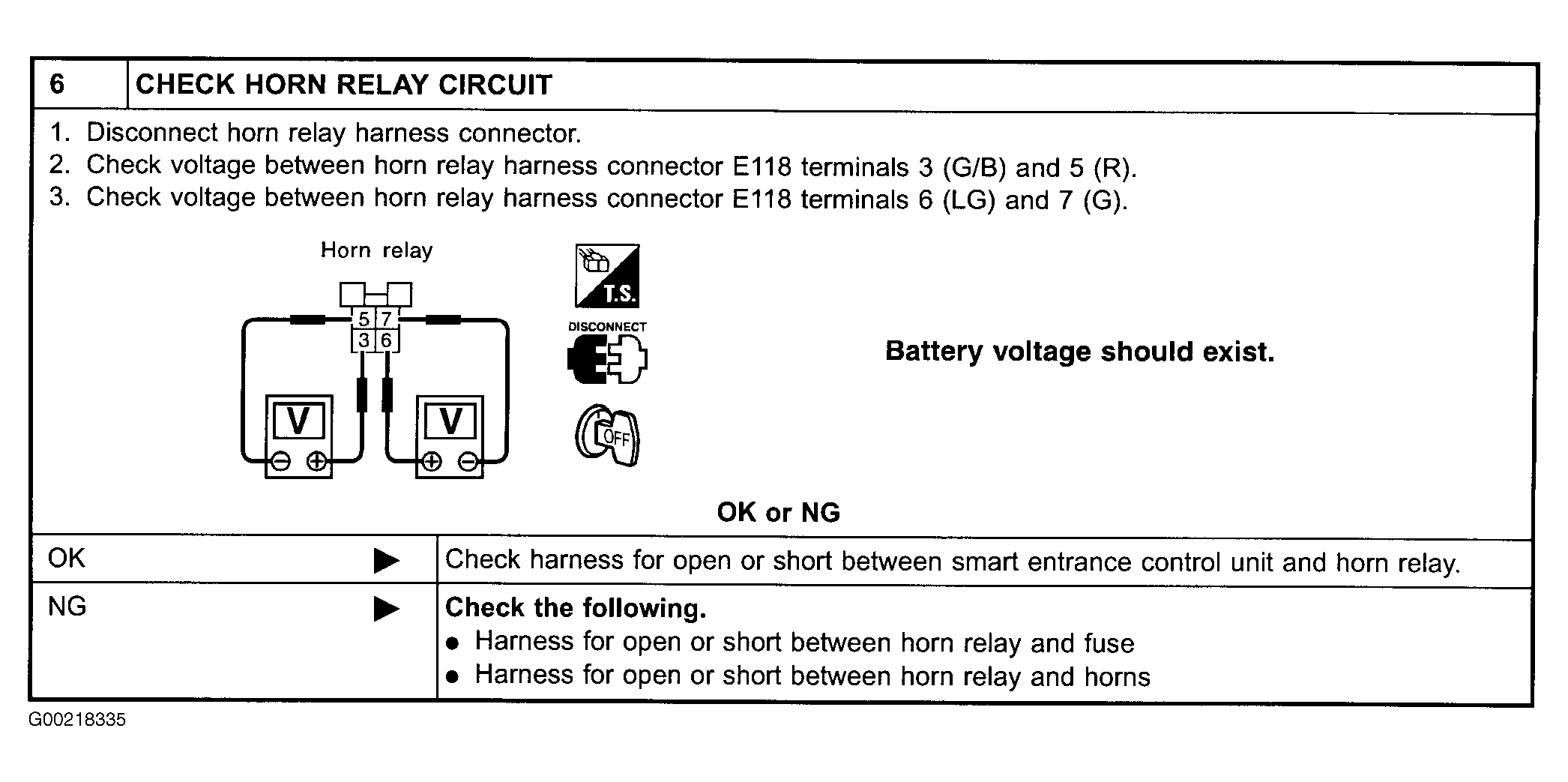

Fig 6: Identifying Horn Reminder Test, Step 6

G00218335

Courtesy of NISSAN MOTOR CO., U.S.A.
