Thermal Transmitter Tests

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

For thermal transmitter check, see Fig 1.

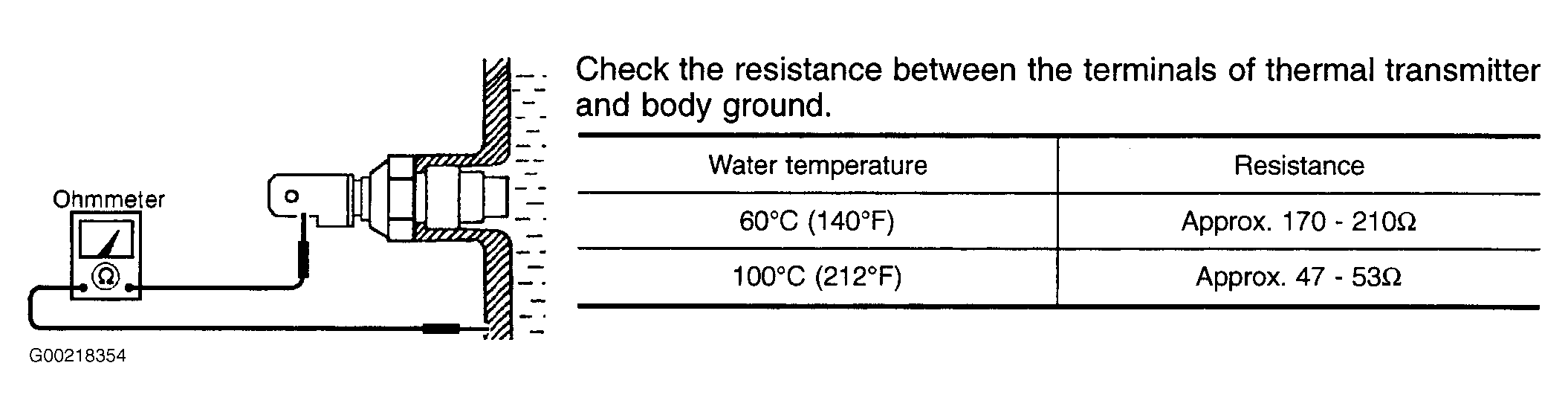

Fig 1: Identifying Thermal Transmitter Tests

Courtesy of NISSAN MOTOR CO., U.S.A.
