Removal & Installation

WARNING: This page is about a different car, the 2002 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

For removal and installation, see Fig 1.

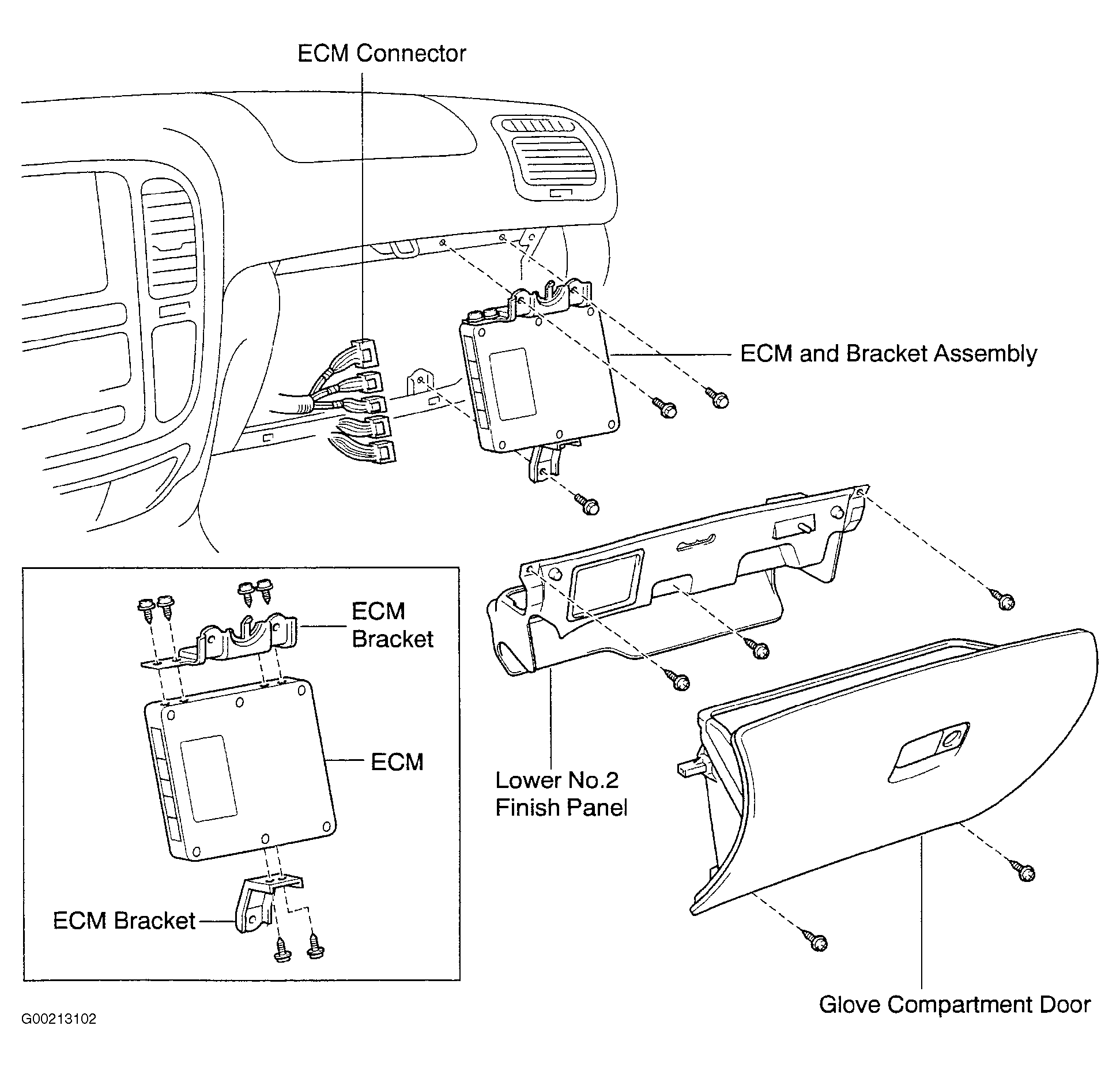

Fig 1: Removing & Installing Engine Control Module (ECM)
