CONSULT-II Start Procedure

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Turning ignition switch off when performing CAN diagnosis could cause CAN memory to be erased.

Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.

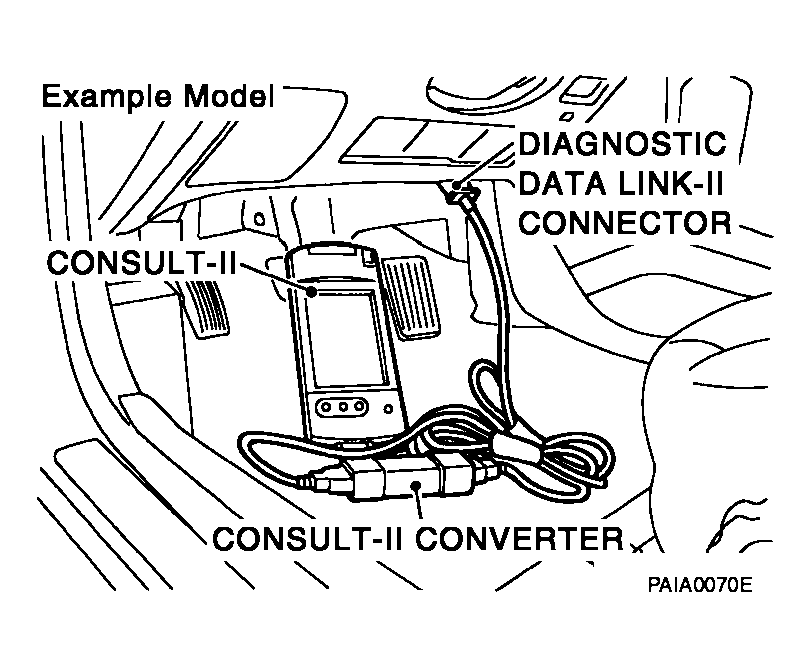

Fig 1: Connecting CONSULT-II And CONSULT-II Converter To Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
If necessary, turn on the ignition switch.
Touch "START(NISSAN BASED VHCL)" or System Shortcut key (eg: ENGINE) on the screen.

Fig 2: Display START(NISSAN BASED VHCL)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch necessary system on "SELECT SYSTEM" screen. If necessary system is not indicated, check power supply and ground of system control unit. If it is normal, refer to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

Fig 3: Consult-II SELECT SYSTEM Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Select the desired part to be diagnosed on the "SELECT DIAG MODE" screen.

Fig 4: Consult-II SELECT DIAG MODE Display Screen
