WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

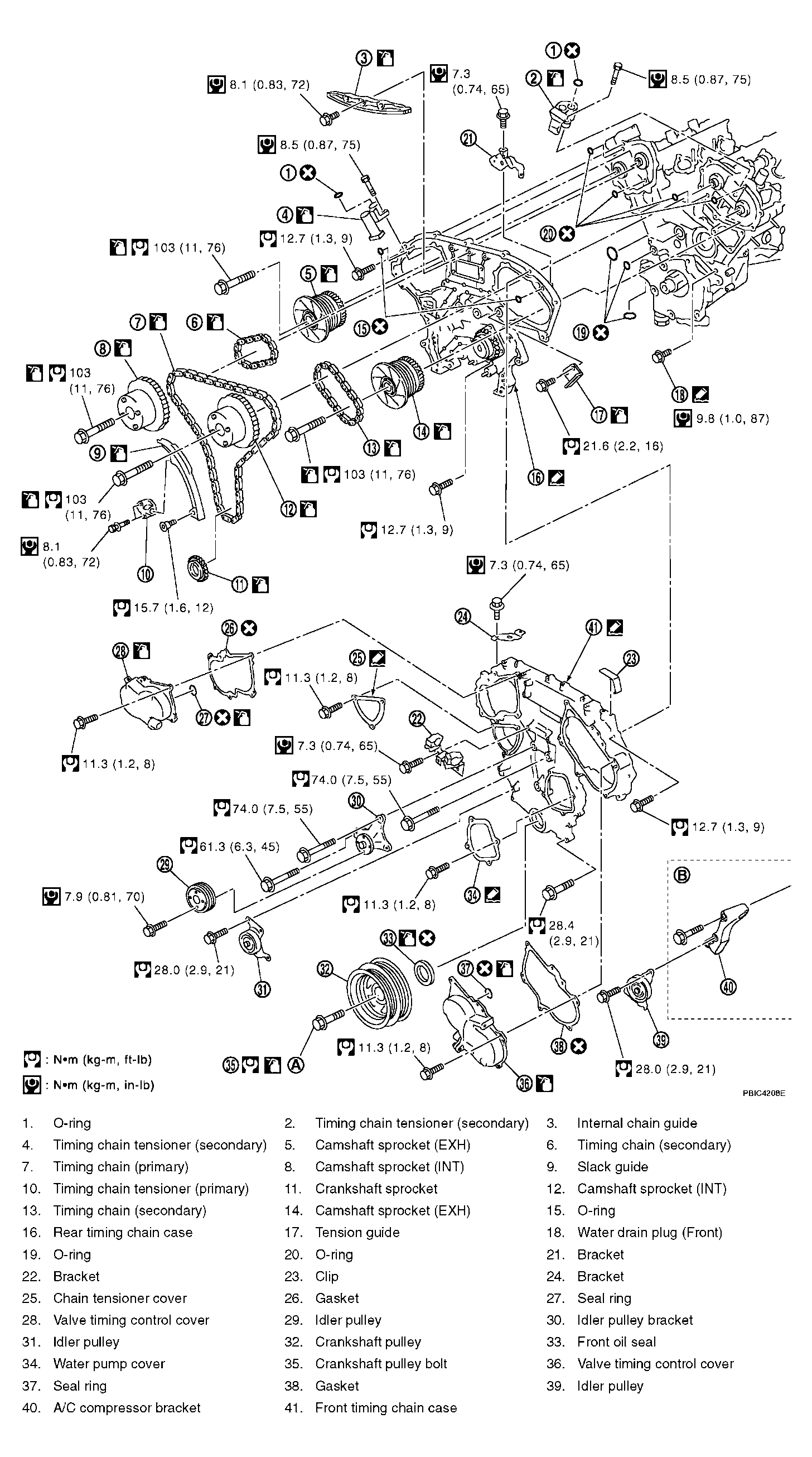

Fig 1: Exploded View Of Timing Chain Components With Torque Specifications (M/T Model)
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to
"COMPONENTS
" for symbol mark in the figure.
