Work Flow

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

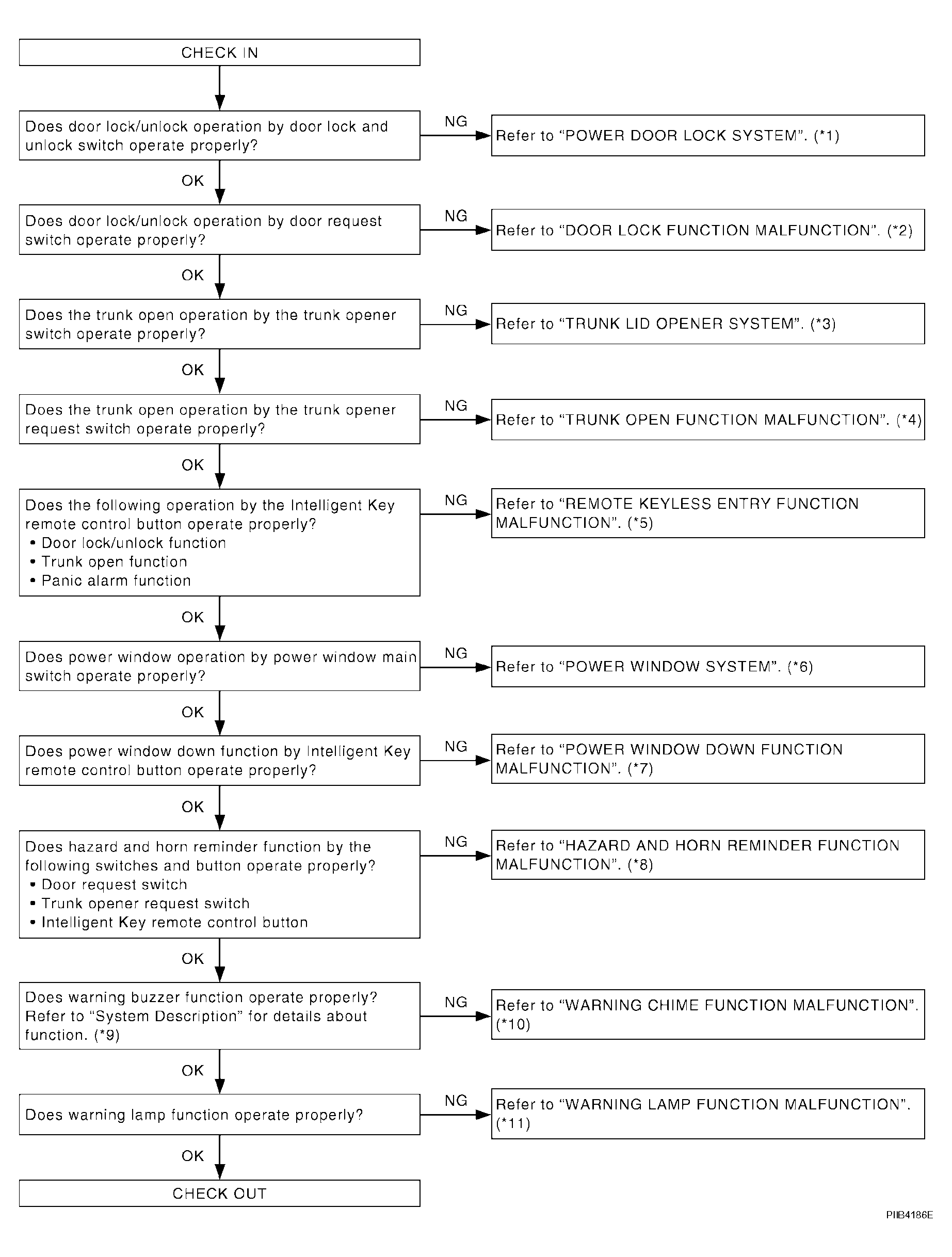

Fig 1: Trouble Diagnosis Work Flow Chart

G04122395

Courtesy of NISSAN MOTOR CO., U.S.A.

TROUBLE DIAGNOSIS WORK FLOW CHART REFERENCES

*1. POWER DOOR LOCK SYSTEM

*2. DOOR LOCK/UNLOCK FUNCTION MALFUNCTION

*3. TRUNK LID OPENER

*4. TRUNK OPEN FUNCTION MALFUNCTION

*5. REMOTE KEYLESS ENTRY FUNCTION

*6. POWER WINDOW SYSTEM

*7. POWER WINDOW DOWN FUNCTION MALFUNCTION

*8. TRUNK OPEN FUNCTION MALFUNCTION

*9. WARNING CHIME FUNCTION

*10. POWER WINDOW DOWN FUNCTION MALFUNCTION

*11. CHECK CAN COMMUNICATION SYSTEM.
