Disassembly and Assembly for Combination Meter: Notes

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

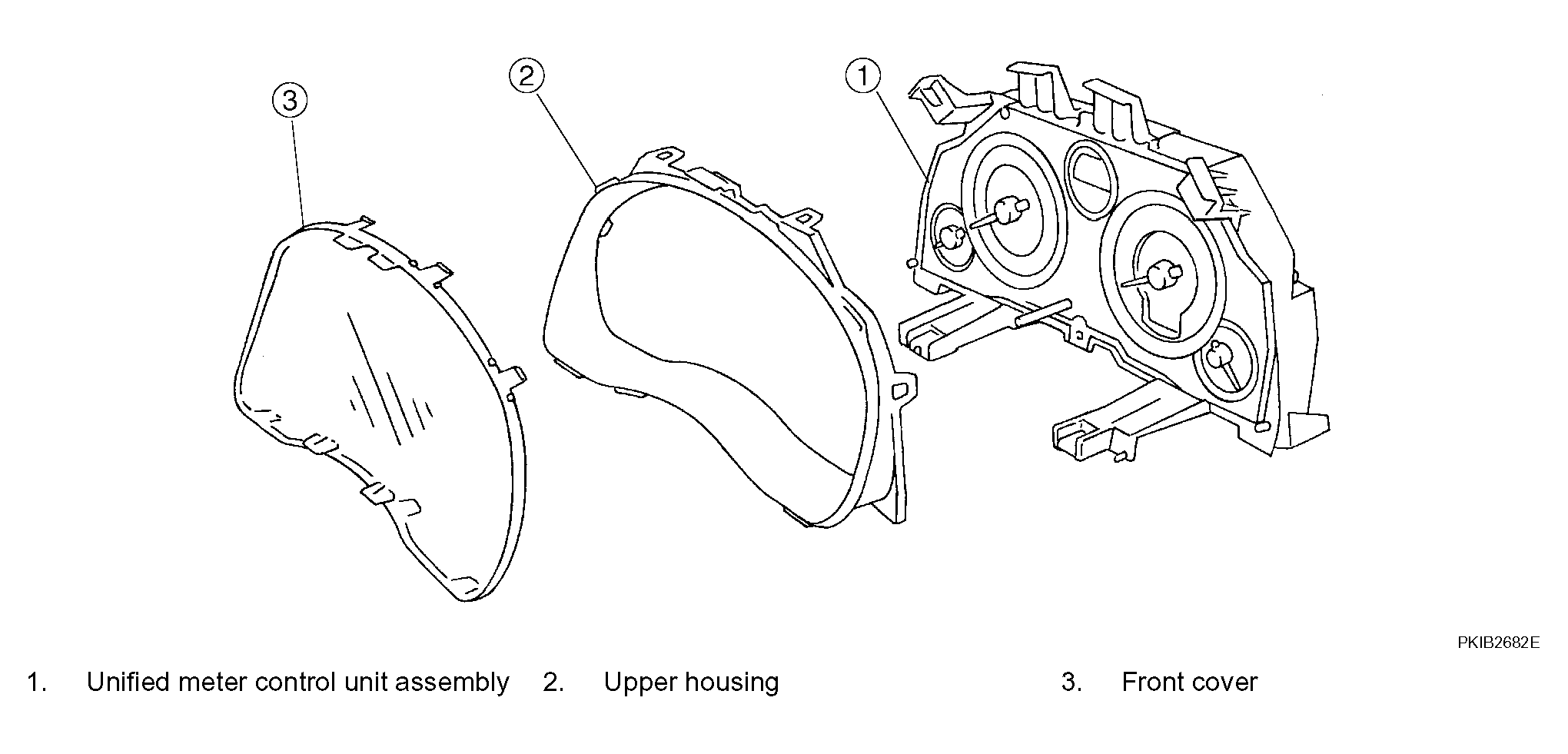

Fig 1: Identifying Combination Meter Components

Courtesy of NISSAN MOTOR CO., U.S.A.
