Removal and Installation of Compass: Removal
WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
- Remove instrument panel and pad. Refer to "INSTRUMENT PANEL ASSEMBLY ".

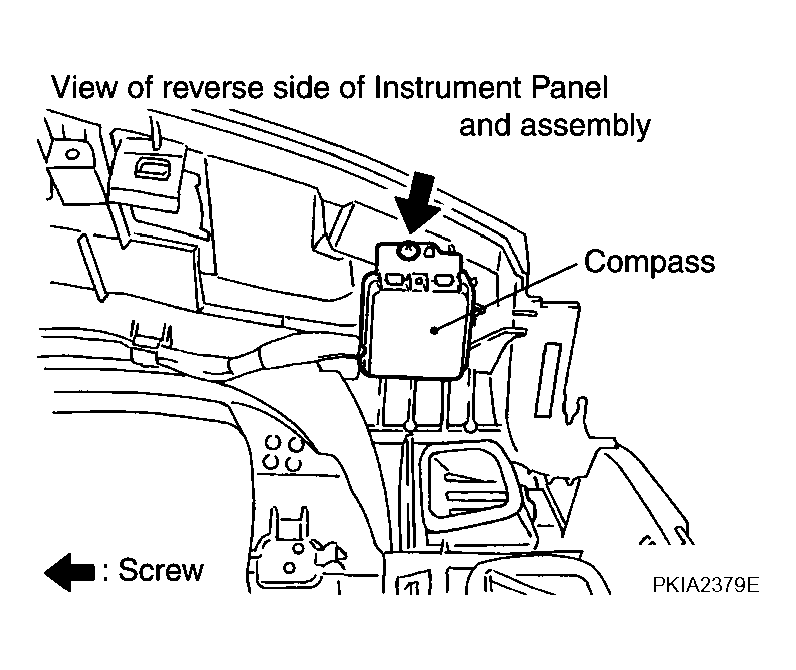

- Remove screw (1), and remove compass.
