Brake Master Cylinder: Components

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

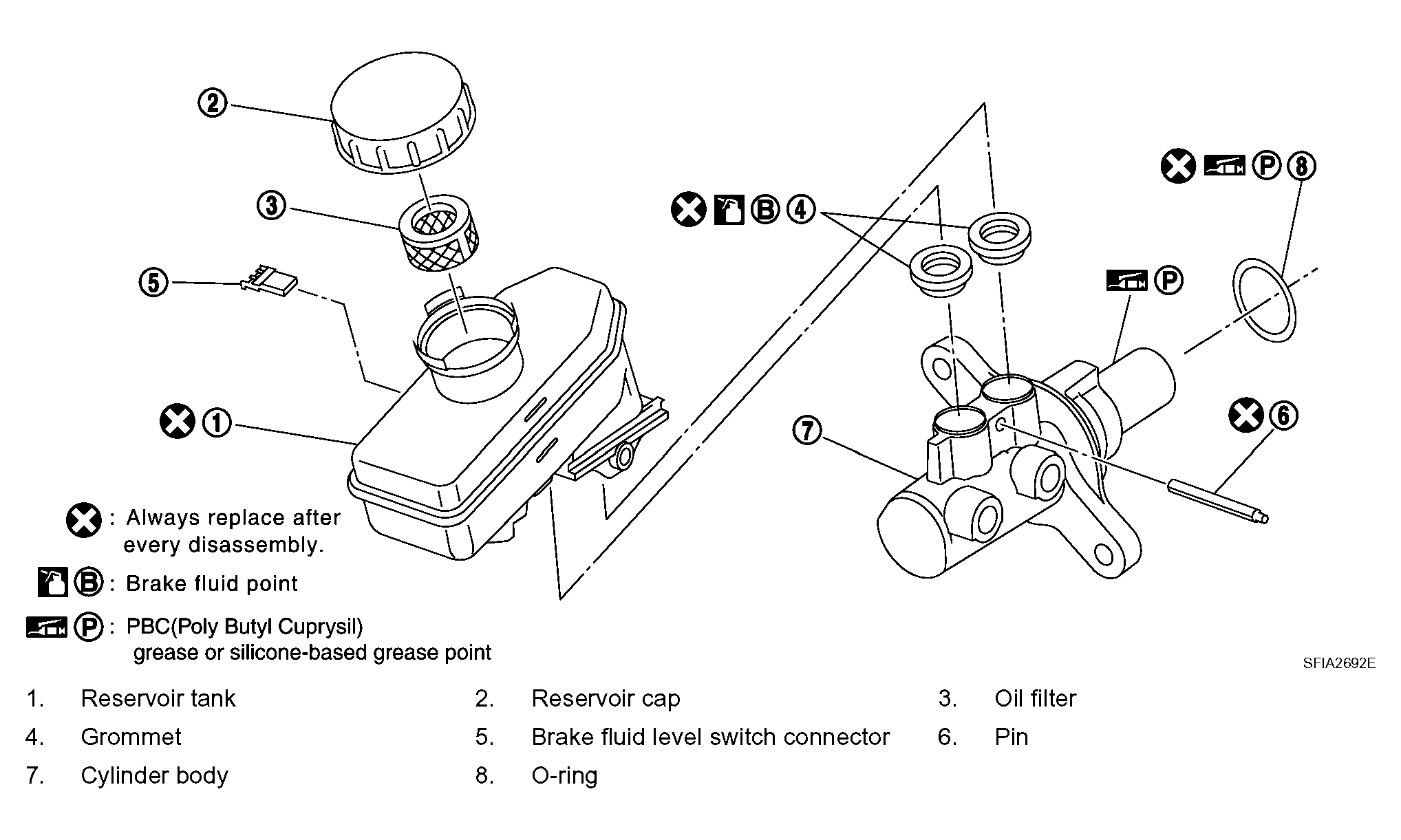

Fig 1: Master Cylinder Replacement Components With Torque Specifications (2WD Models)
G04121935Courtesy of NISSAN MOTOR CO., U.S.A.

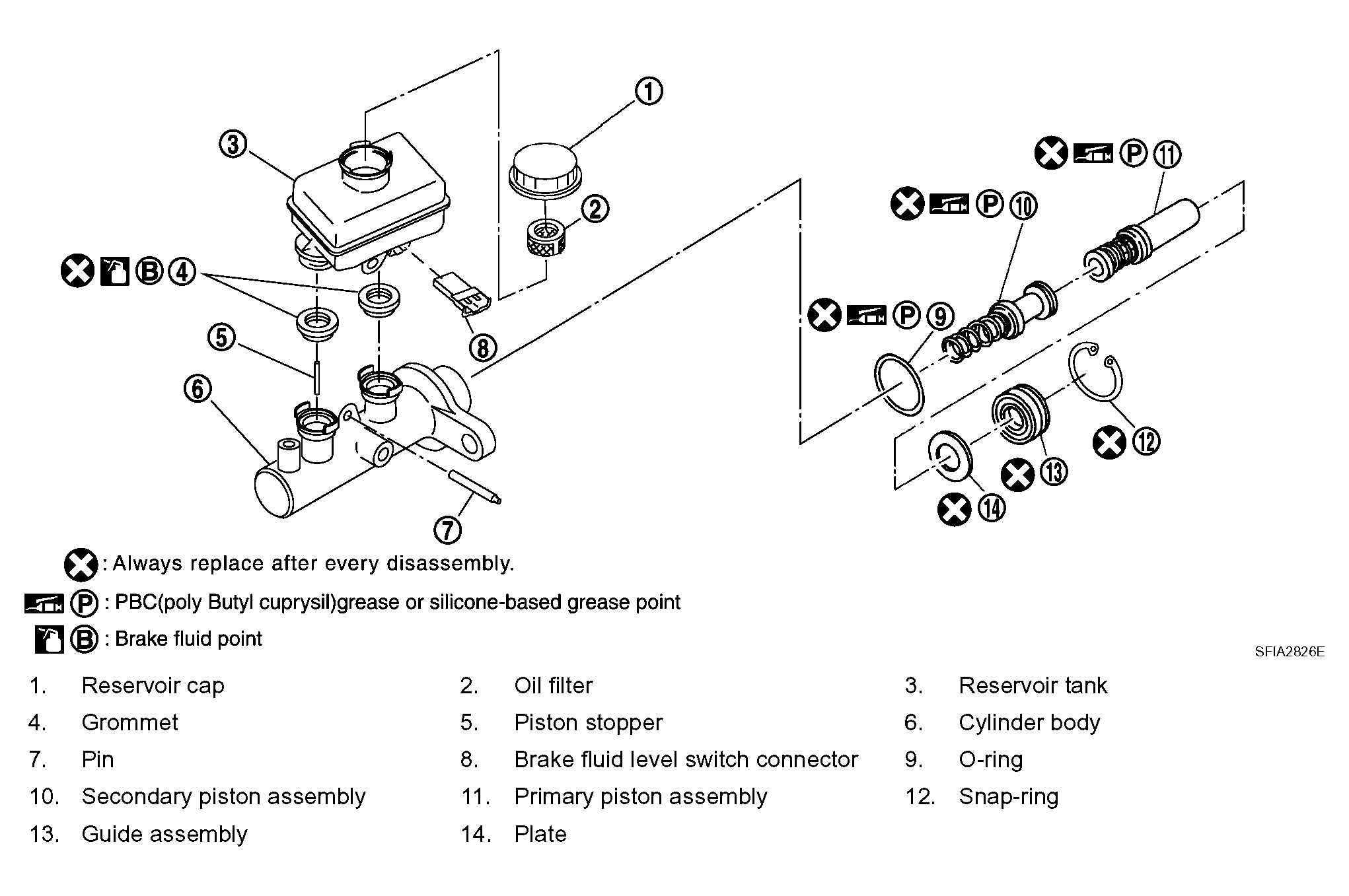

Fig 2: Master Cylinder Replacement Components With Torque Specifications (AWD Models)
G04121936Courtesy of NISSAN MOTOR CO., U.S.A.
