Memory Switch Operation

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Selecting the memory

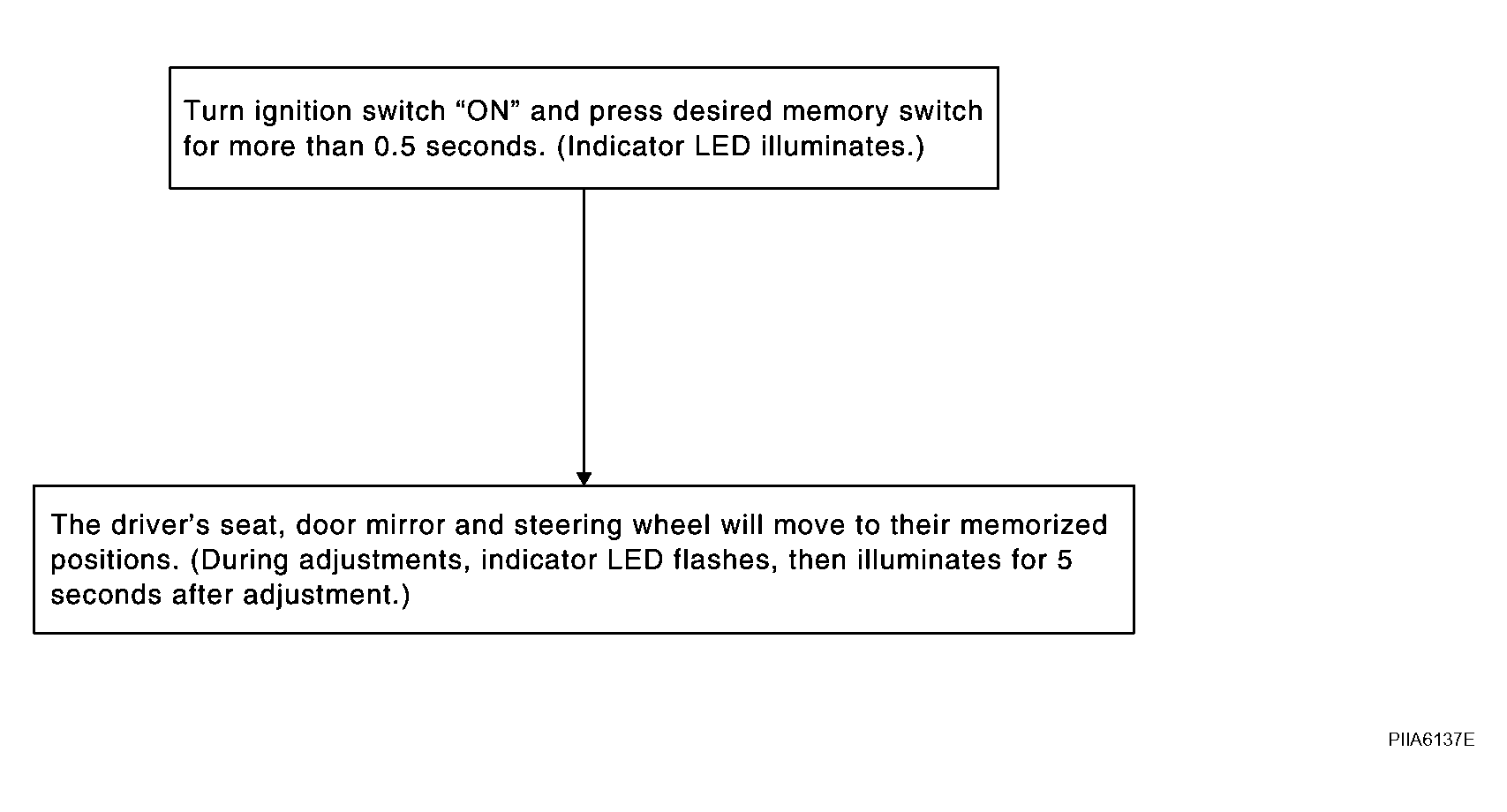

Fig 1: Memory Switch Operation Flow Chart - Selecting Memory
G04123014Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: The driver's seat position and steering adjustment functions (see the following table) operate simultaneously in the order of priority.
MEMORY SWITCH OPERATION

Priority Function Priority Function
1 Seat sliding 4 Seat reclining
2 Steering wheel telescoping 5 Seat lifter-FR
3 Steering wheel tilt 6 Seat lifter-RR
