Wiring Diagram - R/VIEW -

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

For wiring diagram abbreviations, see WIRING DIAGRAM ABBREVIATIONS IDENTIFICATION TABLE .

For PG-Power, refer to SYSTEM WIRING DIAGRAMS .

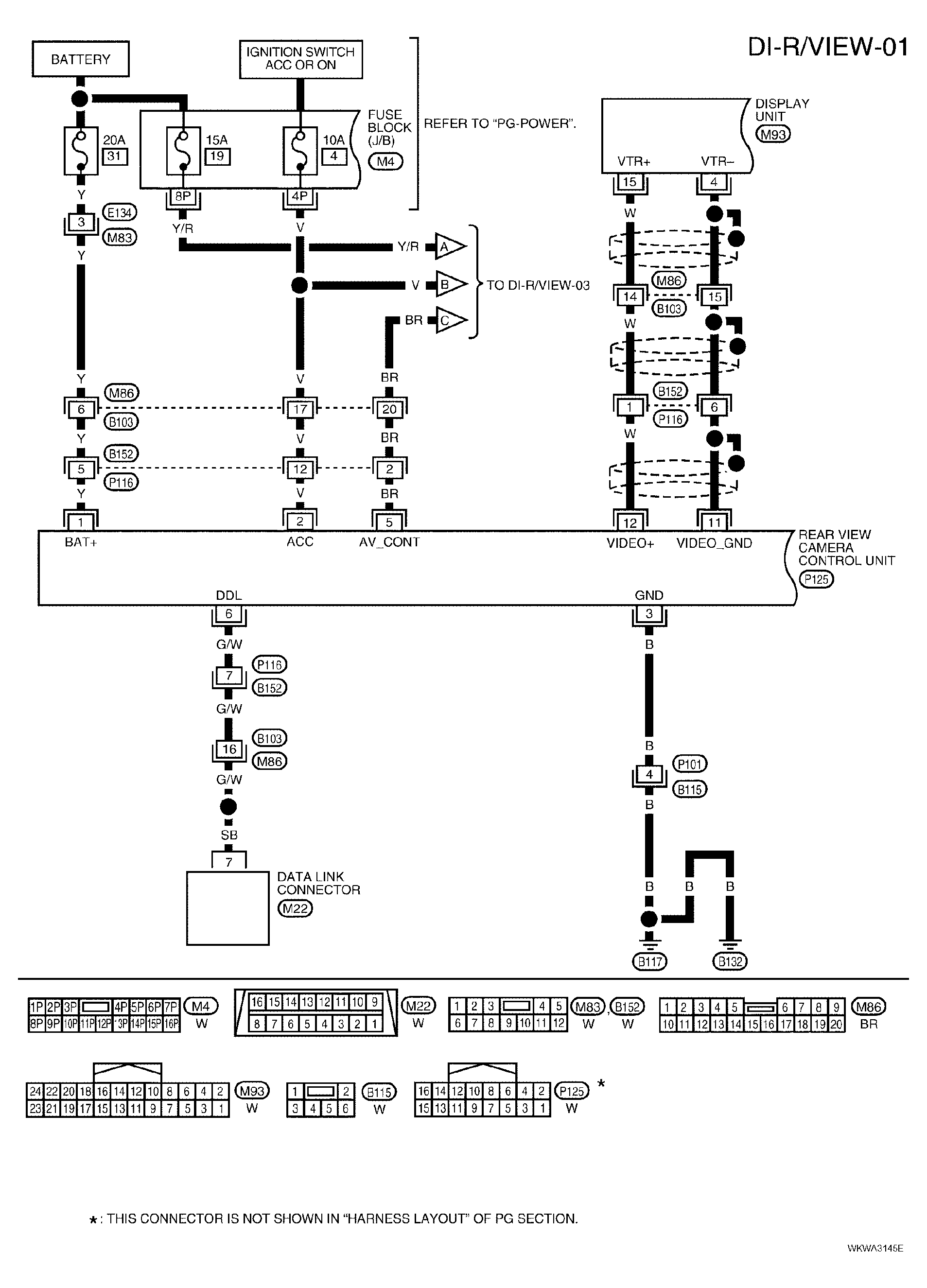

Fig 1: DI-R/VIEW-01 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

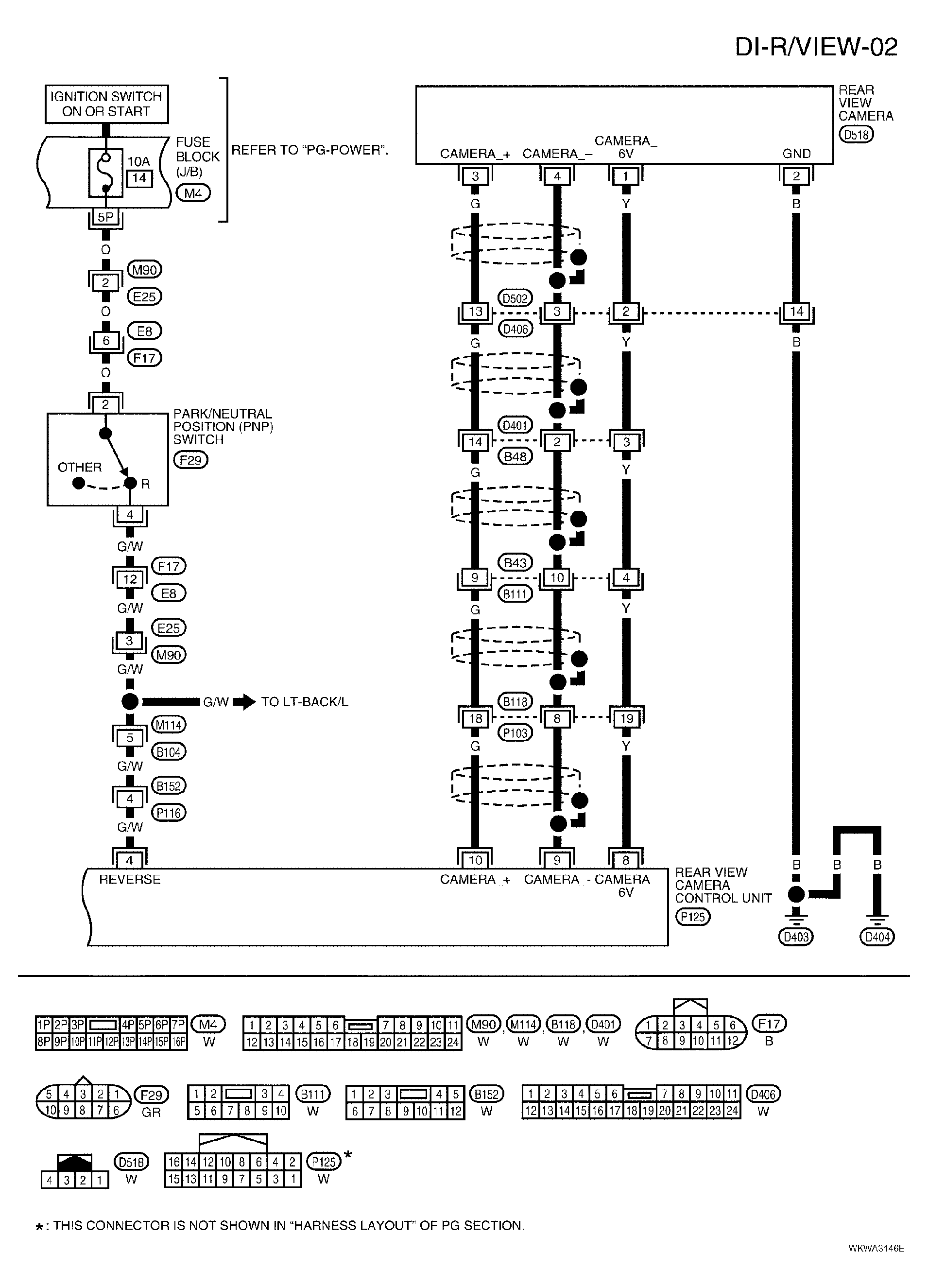

Fig 2: DI-R/VIEW-02 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

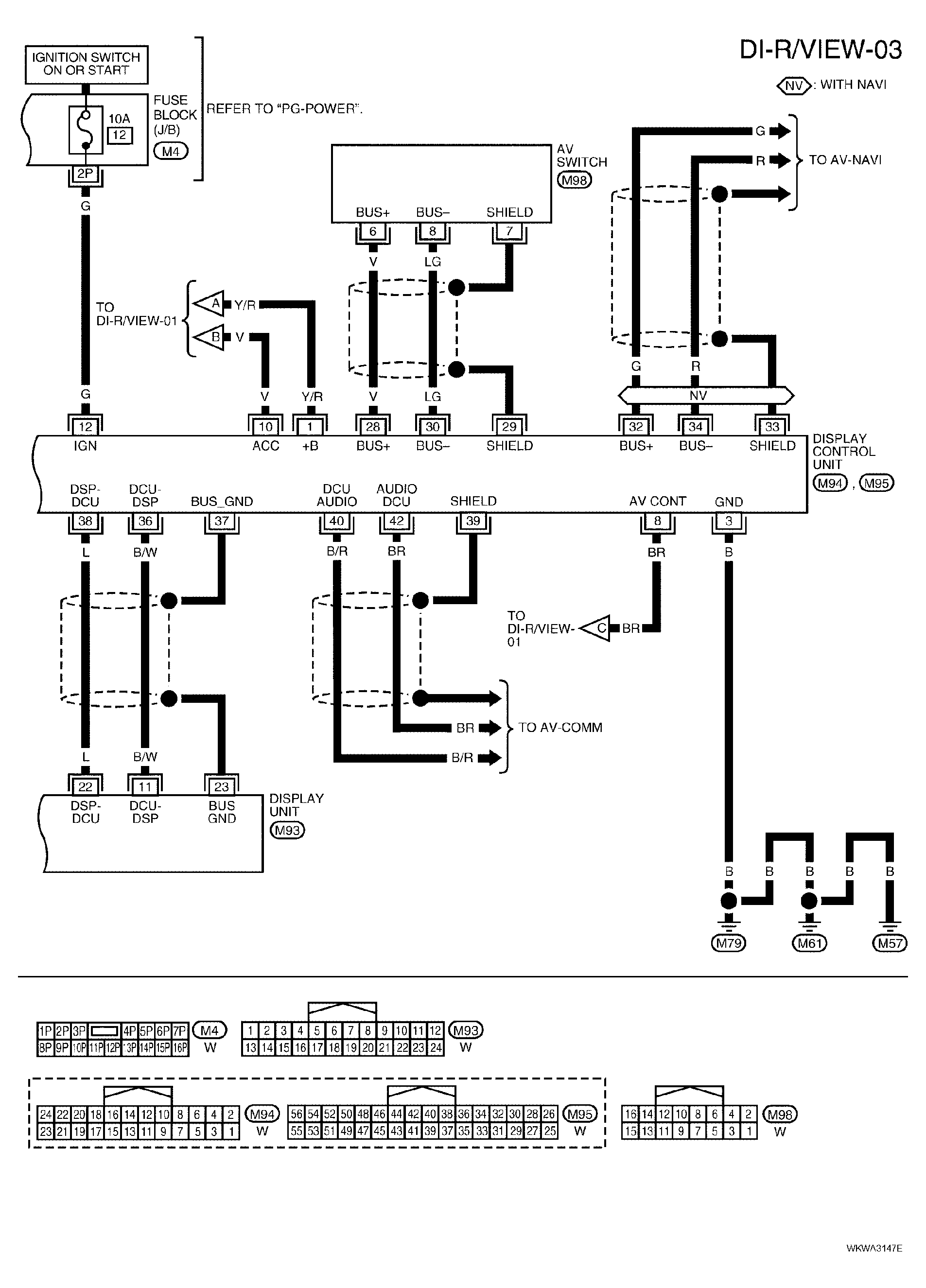

Fig 3: DI-R/VIEW-03 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
