Removal And Installation: Removal
WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect battery negative cable.
- Remove center console lower cover. Refer to , "INSTRUMENT PANEL ASSEMBLY ".
- Remove cluster lid C. Refer to , "CLUSTER LID C ".
- Remove instrument lower panel LH. Refer to , "REMOVAL ".
- Remove storage tray. Refer to , "INSTRUMENT PANEL ASSEMBLY ".
- Remove glove box. Refer to , "GLOVE BOX "
- Remove center console. Refer to , "INSTRUMENT PANEL ASSEMBLY ".
- Disconnect electrical connectors.

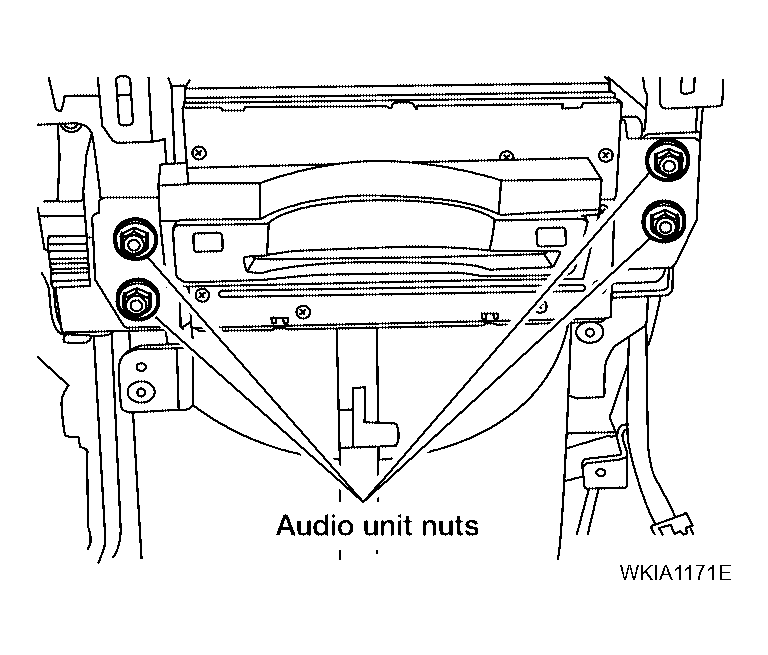

- Remove the four audio unit nuts, using power tool.
- Pull out audio unit and disconnect audio unit electrical connectors.
