Wiring Diagram - COMM -

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For PG-POWER references, see SYSTEM WIRING DIAGRAMS .

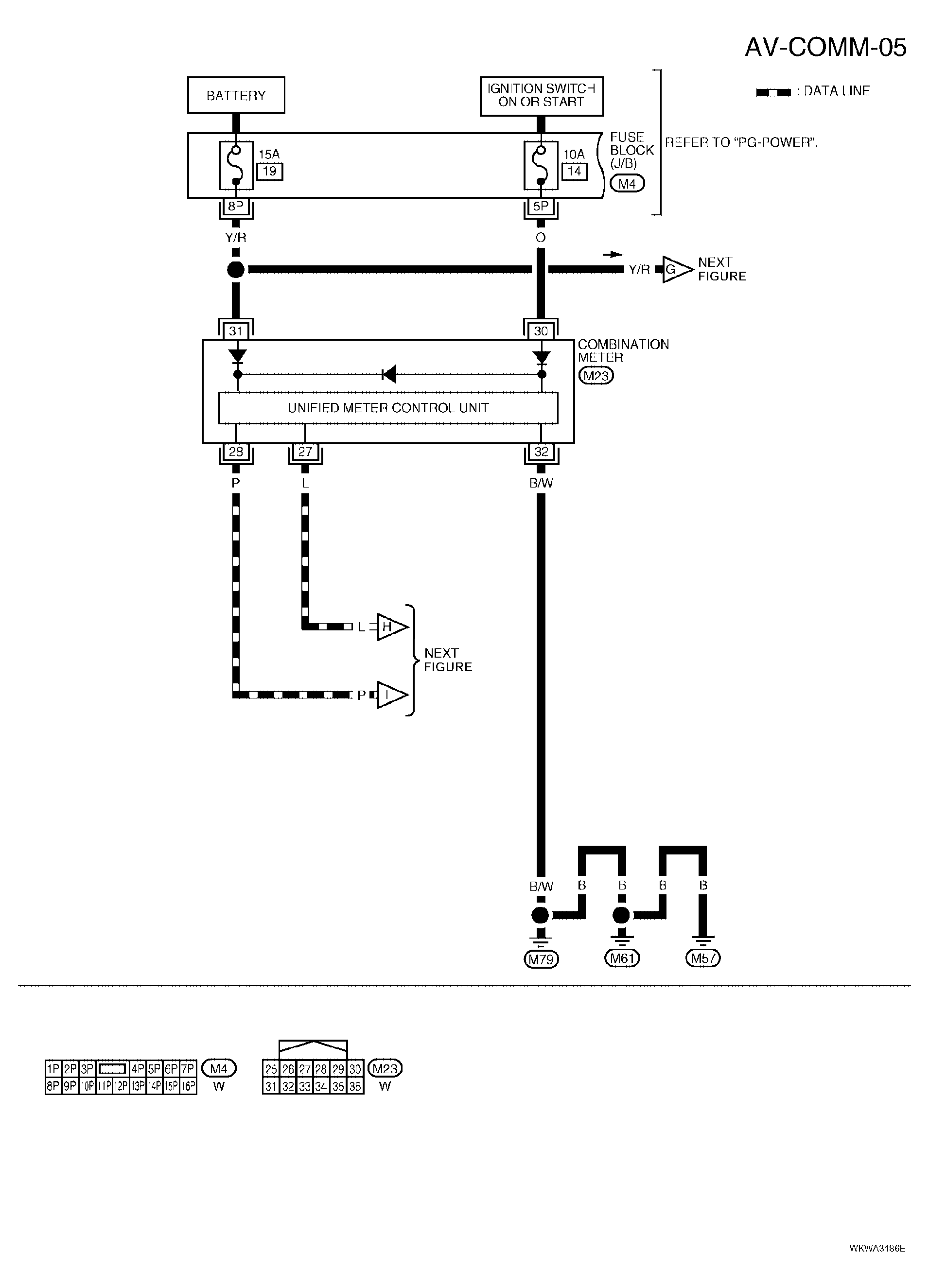

Fig 1: AV-COMM-05 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

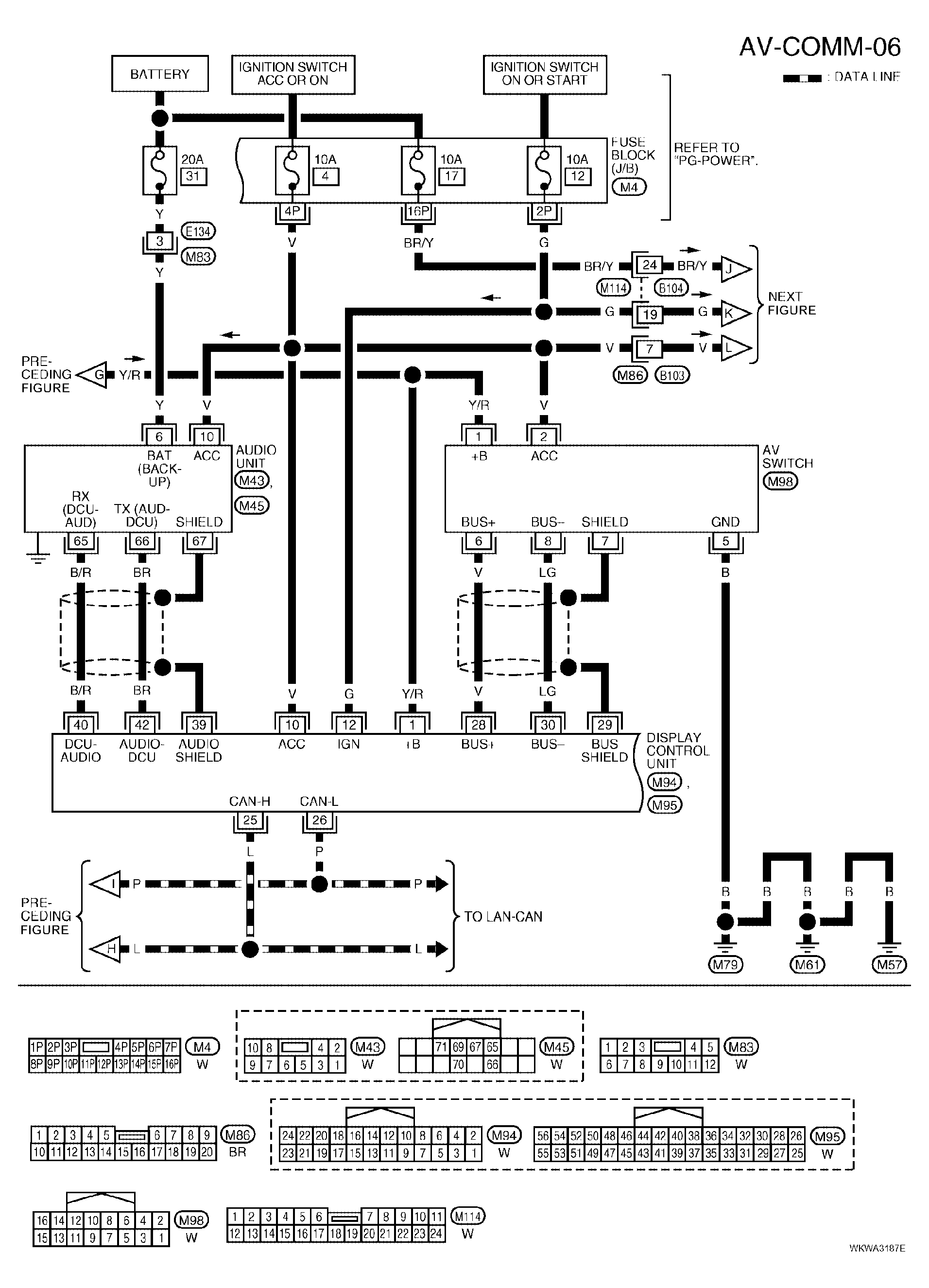

Fig 2: AV-COMM-06 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

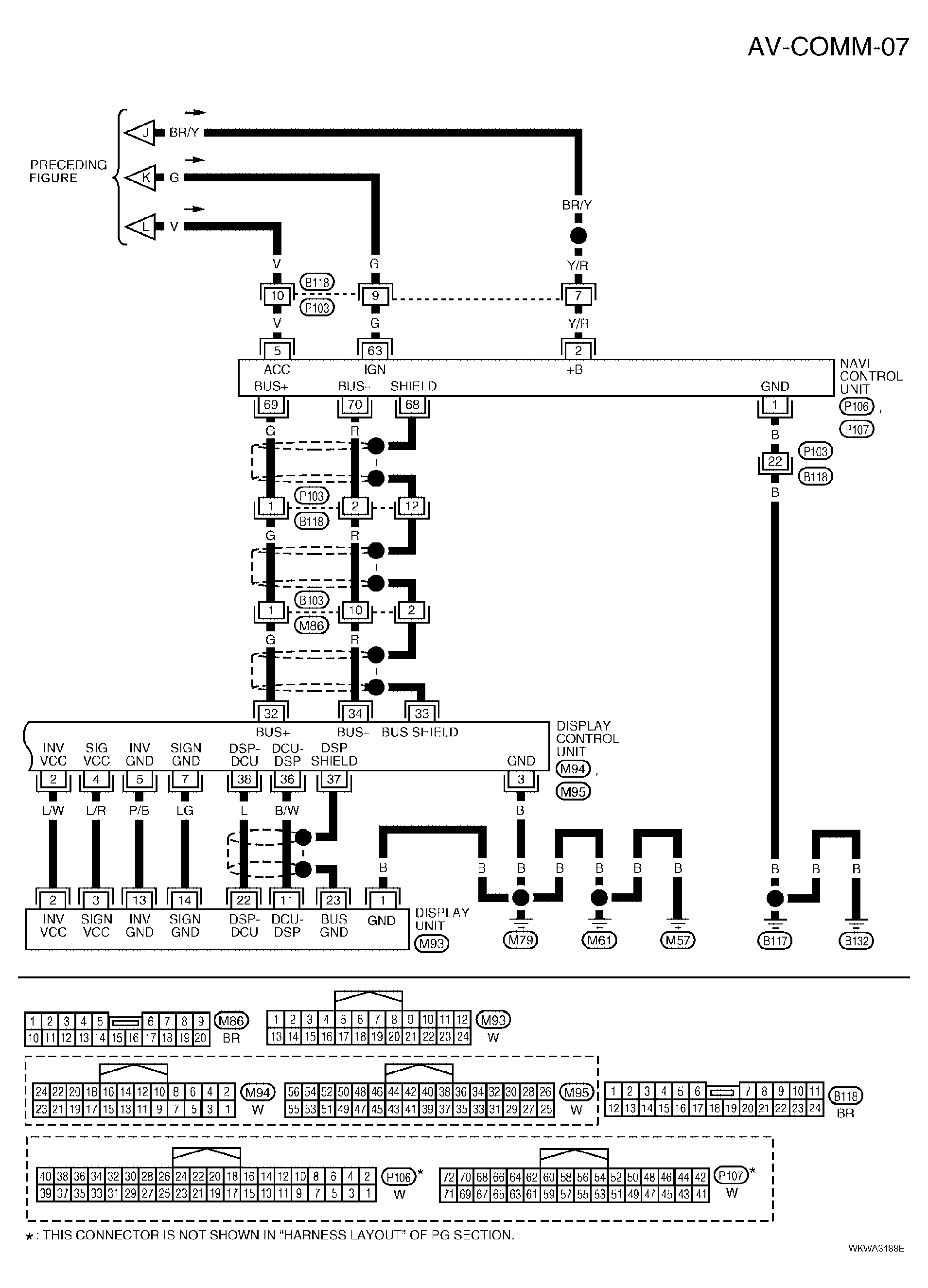

Fig 3: AV-COMM-07 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
