M/T Models

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

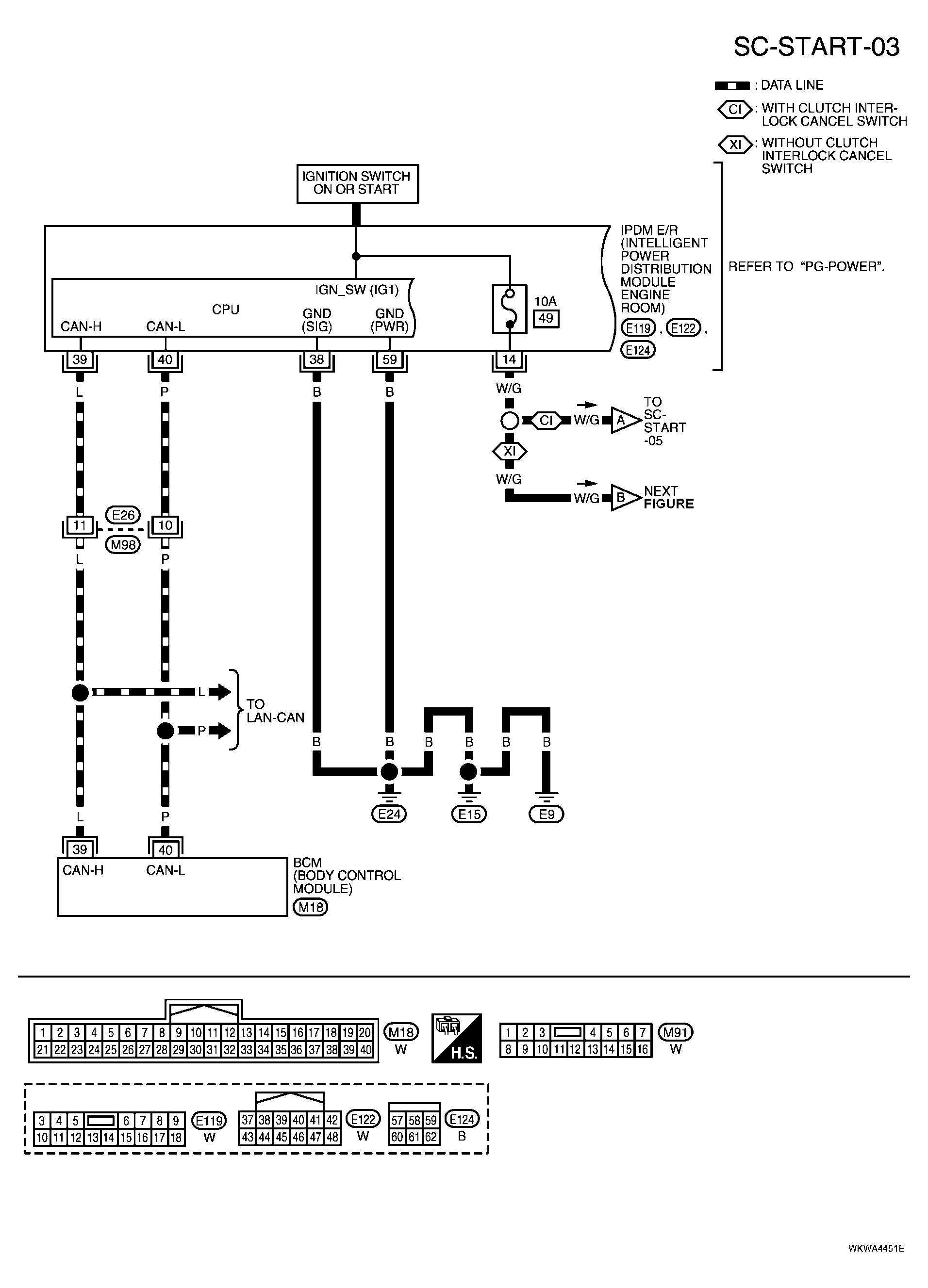

Fig 1: SC-START-03 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

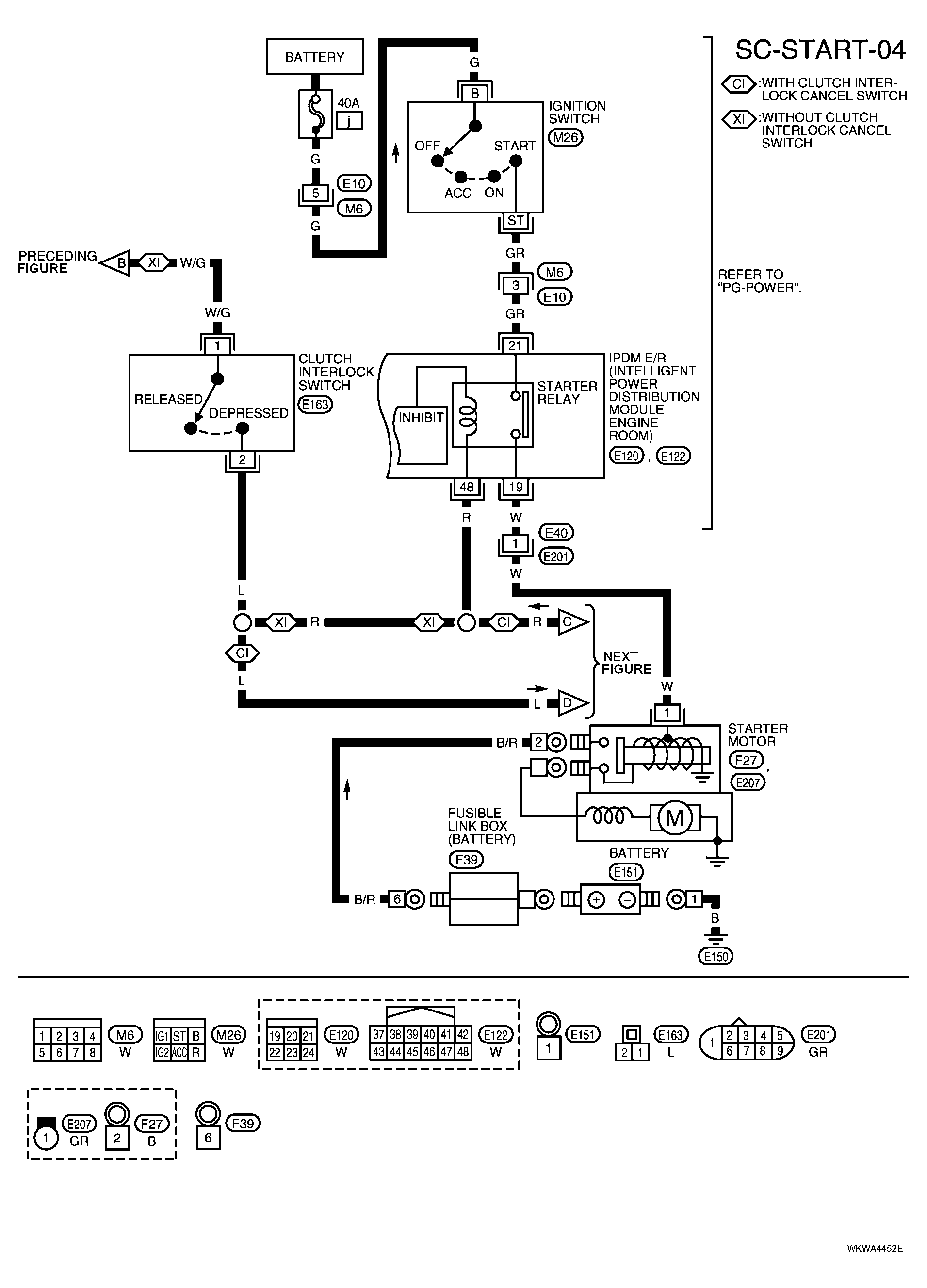

Fig 2: SC-START-04 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

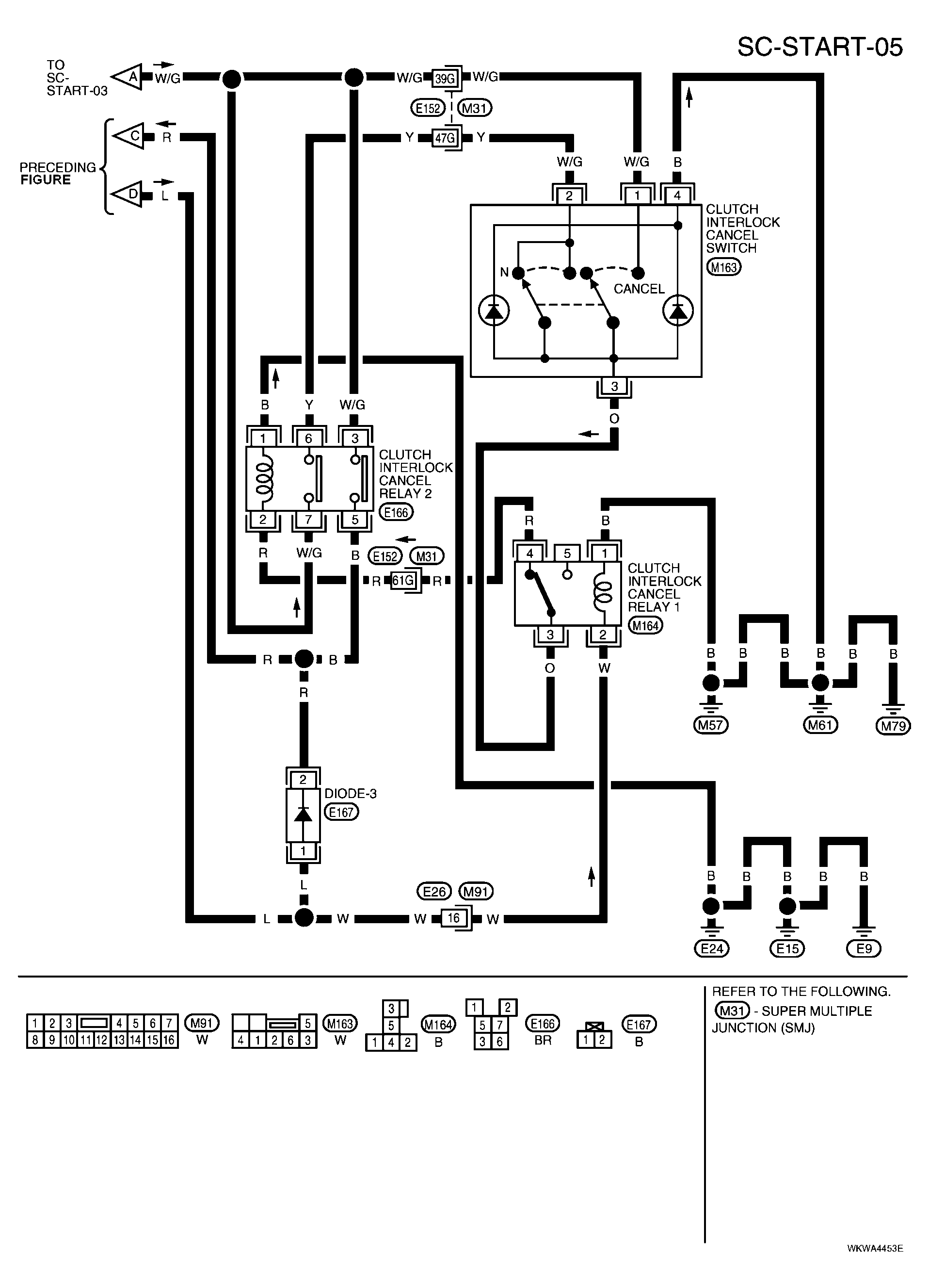

Fig 3: SC-START-05 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
