Oil Pump: Disassembly

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Remove oil pump housing from oil pump cover.

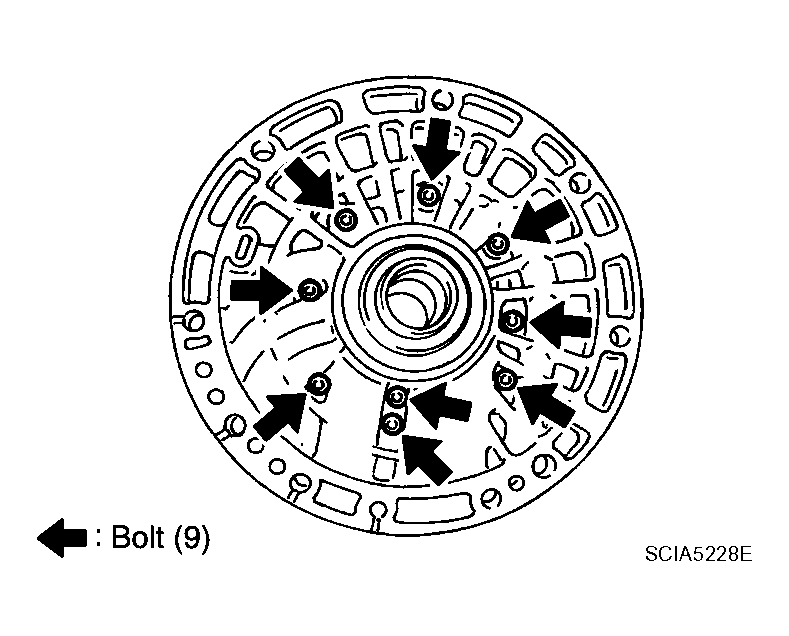

Fig 1: Identifying Oil Pump Housing Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove oil pump housing oil seal using suitable tool.
CAUTION: Be careful not to scratch oil pump housing.

Fig 2: Removing Oil Seal From Oil Pump Housing
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove O-ring from oil pump housing.

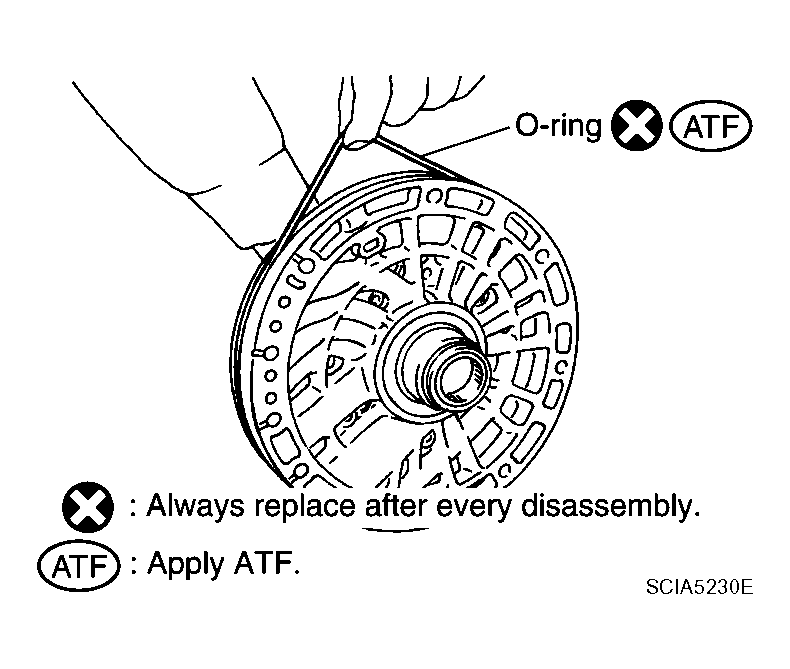

Fig 3: Removing O-Ring From Oil Pump Housing
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove O-ring from oil pump cover.

Fig 4: Removing O-Ring From Oil Pump Cover

Courtesy of NISSAN MOTOR CO., U.S.A.
