Precautions in undercoating

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Do not apply undercoating to any place unless specified (such as the areas above the muffler and three way catalyst which are subjected to heat).
  2. Do not undercoat the exhaust pipe or other parts which become hot.
  3. Do not undercoat rotating parts.
  4. Apply bitumen wax after applying undercoating.

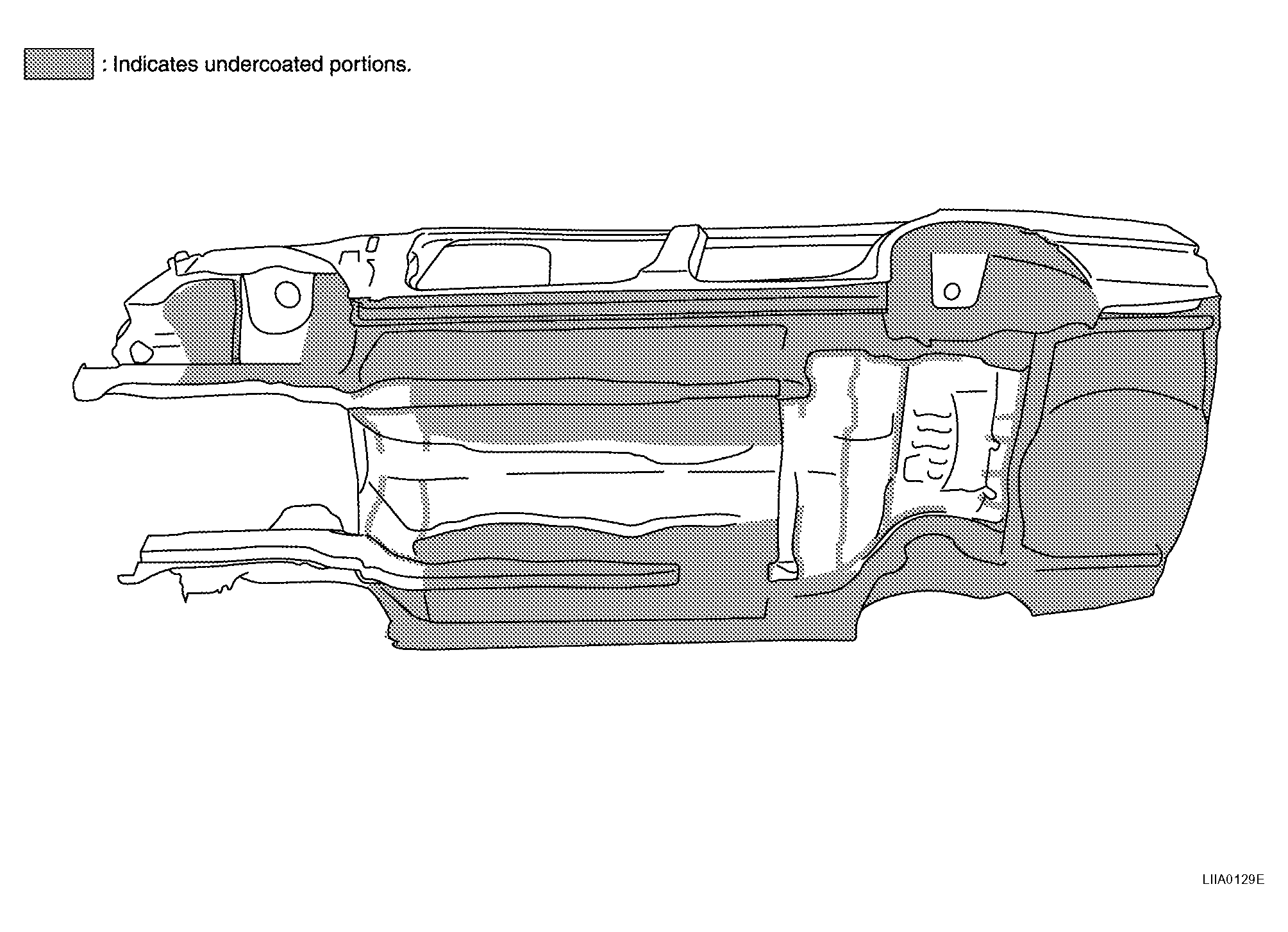

Fig 1: Identifying Undercoating
G04205577Courtesy of NISSAN MOTOR CO., U.S.A.
