Body Mounting

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

When removing, be sure to replace bolts and nuts (sealant applied bolts or self-lock nuts are used for all mounting).
Unless otherwise noted, the bushings and insulators have paint marks that are to be installed facing outward.

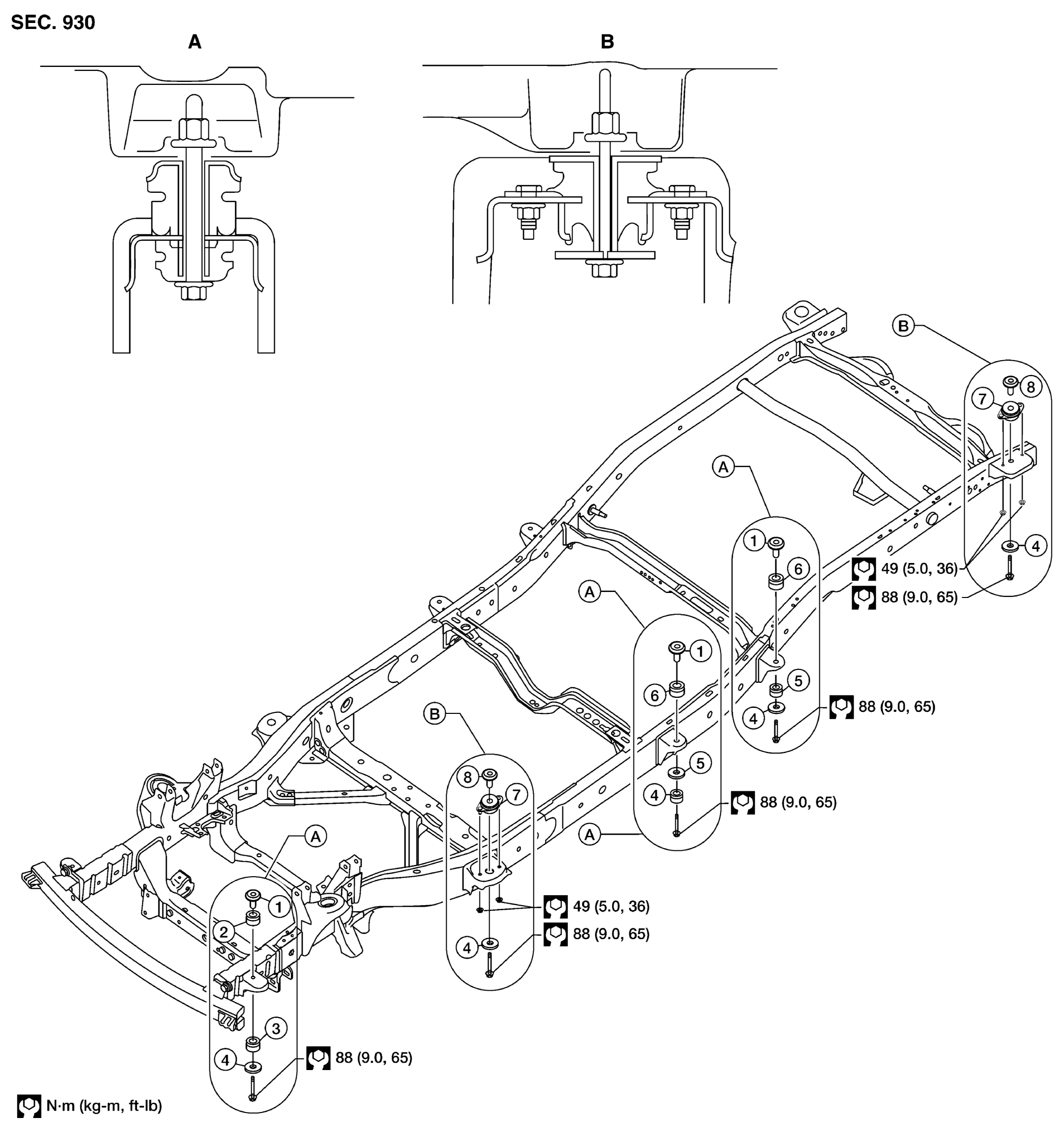

Fig 1: Body Mounting With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
