Floor Shift Lever Assembly: Components

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

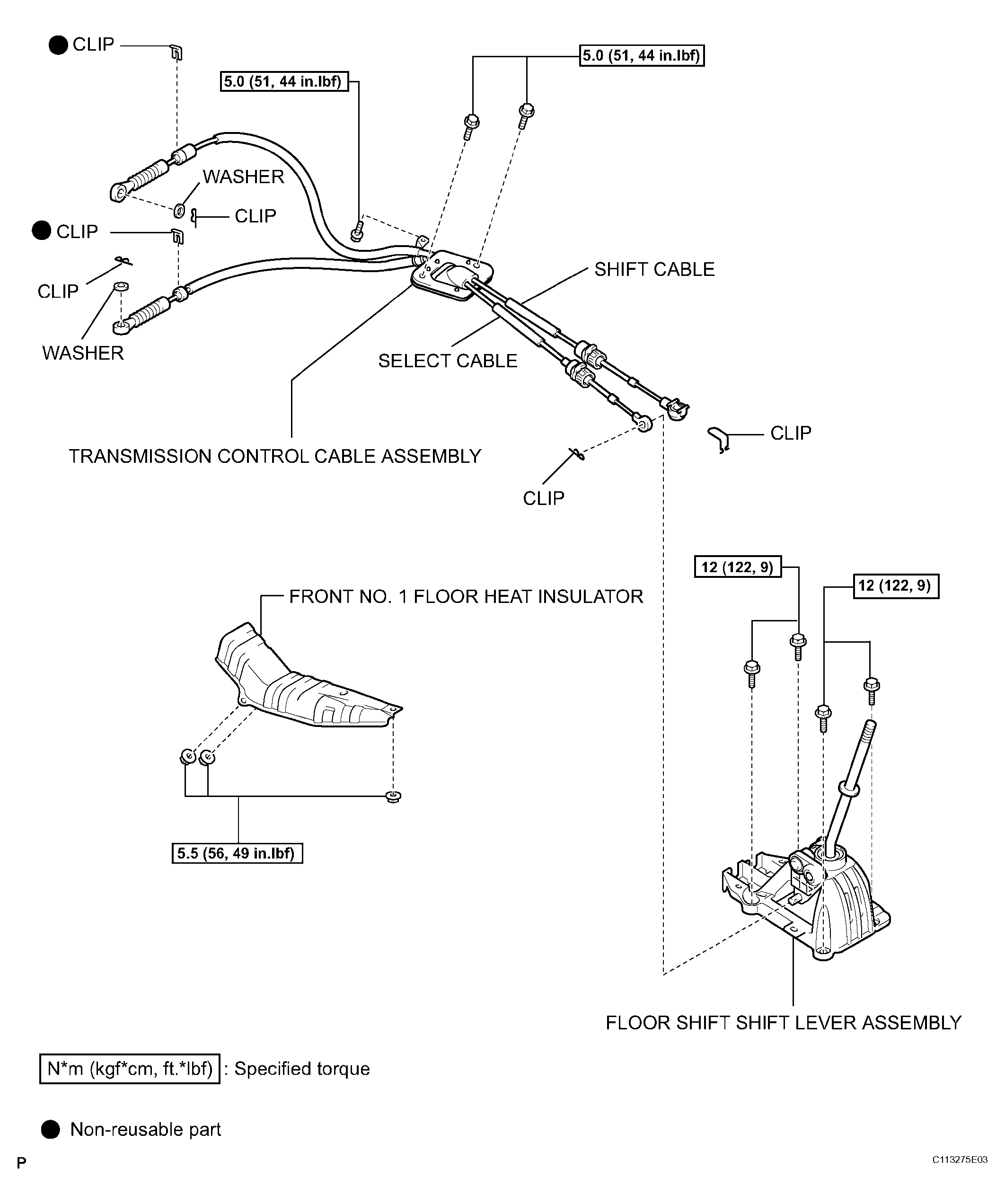

Fig 1: Floor Shift Lever Assembly Replacement Components With Torque Specifications (1 Of 2)

Fig 2: Floor Shift Lever Assembly Replacement Components With Torque Specifications (2 Of 2)
