Back Door: Components

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

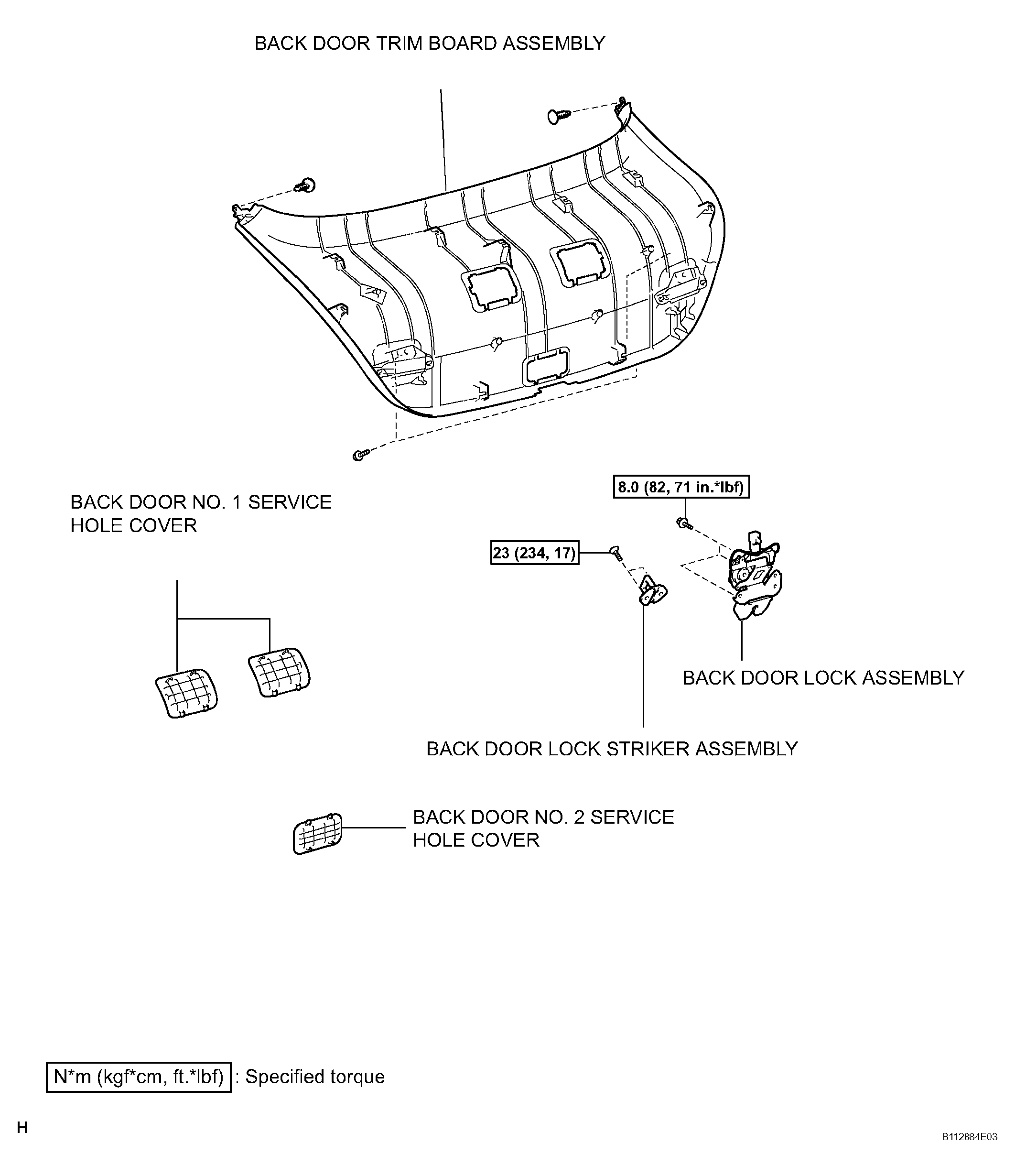

Fig 1: Back Door Replacement Components With Torque Specifications (1 Of 2)
G04224707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

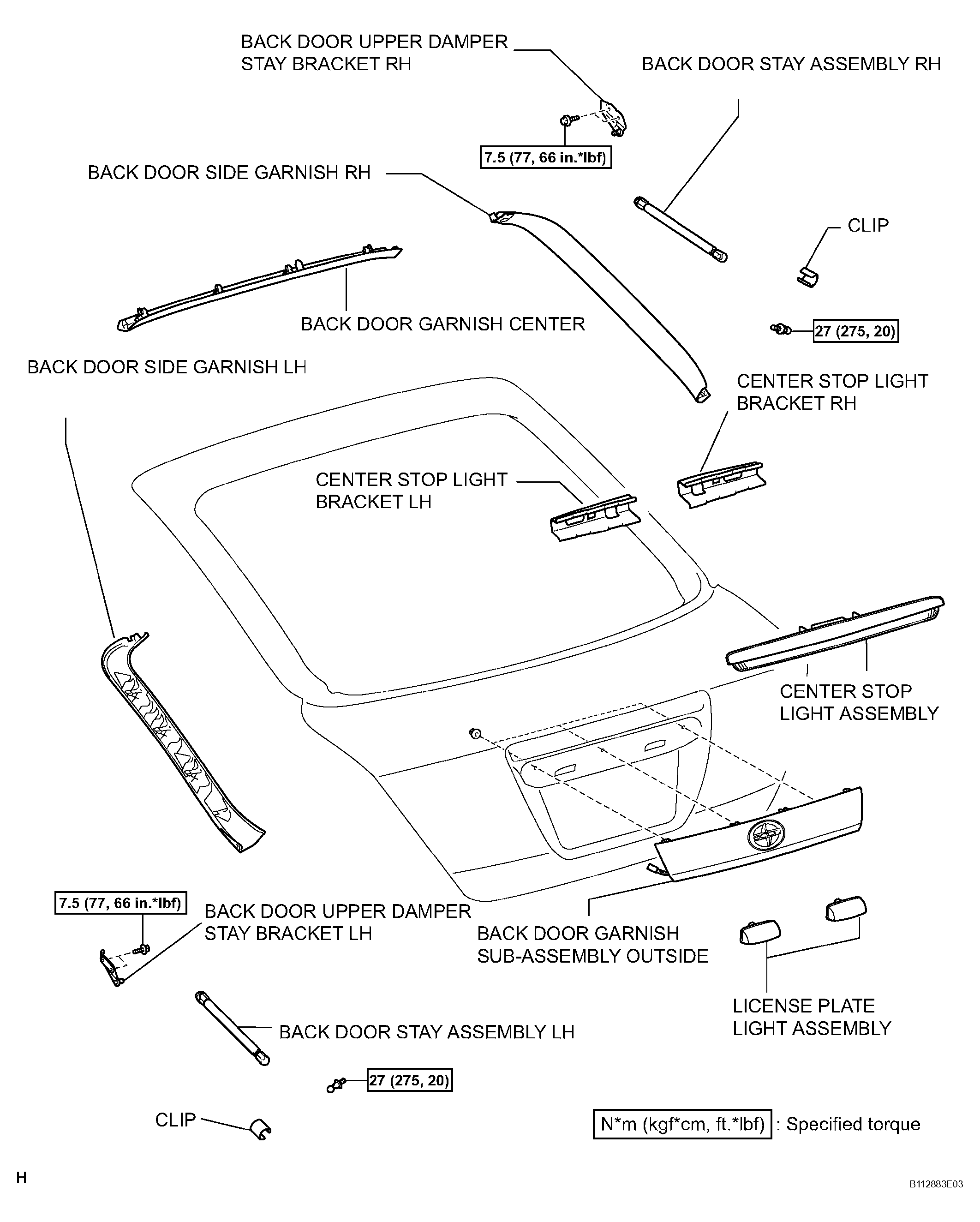

Fig 2: Back Door Replacement Components With Torque Specifications (2 Of 2)
G04224708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
