Front Stabilizer Bar: Installation

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FRONT STABILIZER BAR
  2. INSTALL FRONT NO. 1 STABILIZER BAR BUSH
    1. Install the bushes to the outer side of the bush stopper on the stabilizer bar.
      NOTE: Place the cutout of the stabilizer bush facing the rear side.
    Fig 1: Installing Bushes To Outer Side Of Bush Stopper
    G04222989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL FRONT NO. 1 STABILIZER BRACKET LH
    1. Install the No. 1 stabilizer bracket to the suspension crossmember with the 2 bolts.

      Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

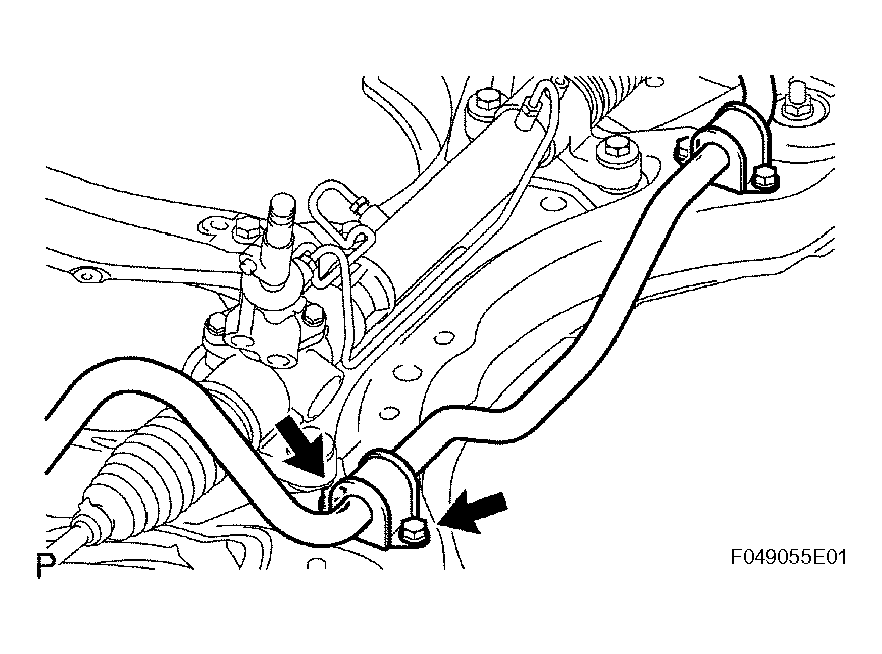

    Fig 2: Installing Stabilizer Bracket To Suspension Crossmember With Bolts
    G04222990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL FRONT NO. 1 STABILIZER BRACKET RH

    HINT:

    Use the same procedures described for the LH side.

  5. INSTALL FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY (See  INSTALLATION  )
  6. INSTALL NO. 1 HOOK (See  INSTALLATION  )
  7. CONNECT FRONT SUSPENSION NO. 1 LOWER ARM SUB-ASSEMBLY LH (See  INSTALLATION   )
  8. CONNECT FRONT SUSPENSION NO. 1 LOWER ARM SUB-ASSEMBLY RH

    HINT:

    Use the same procedures described for LH side.

  9. INSTALL FRONT STABILIZER LINK ASSEMBLY LH
  10. INSTALL FRONT STABILIZER LINK ASSEMBLY RH
  11. CONNECT PRESSURE FEED TUBE ASSEMBLY (See  INSTALLATION  )
  12. CONNECT TIE ROD END SUB-ASSEMBLY LH
    1. Connect the tie rod end LH (See INSTALLATION ).
  13. CONNECT TIE ROD END SUB-ASSEMBLY RH

    HINT:

    Use the same procedures described for LH side.

  14. INSTALL CENTER EXHAUST PIPE ASSEMBLY (See  INSTALLATION  )
  15. INSTALL FRONT FLOOR PANEL BRACE (See  INSTALLATION  )
  16. INSTALL FRONT WHEEL
  17. CONNECT NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY
  18. CONNECT NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY (See  INSTALLATION  )
  19. INSTALL COLUMN HOLE COVER SILENCER SHEET
    1. Install the silencer sheet (See INSTALLATION ).
  20. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY
  21. ADD POWER STEERING FLUID
  22. BLEED POWER STEERING FLUID
    1. Bleed the power steering fluid (See ON-VEHICLE INSPECTION ).
  23. CHECK POWER STEERING FLUID LEVEL IN RESERVOIR
    1. Check the power steering fluid level in reservoir (See ON-VEHICLE INSPECTION ).
  24. CHECK POWER STEERING FLUID LEAKS
  25. INSPECT HOOD SUB-ASSEMBLY
  26. ADJUST HOOD SUB-ASSEMBLY (See  ADJUSTMENT  )
  27. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT
    1. Inspect and adjust front wheel alignment  (see ).
  28. INSTALL ENGINE UNDER COVER LH
  29. INSTALL ENGINE UNDER COVER RH
