Rear Stabilizer Bar: Installation

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL REAR STABILIZER BAR
1. Install the 2 stabilizer bushes to the stabilizer bar.
  HINT:
  - Install the stabilizer bush to the outer side of the stopper ring on the stabilizer bar.
  - Install the stabilizer bush with the protrusion facing towards the inside of the vehicle.
  Fig 1: Installing Stabilizer Bush With Protrusion
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the stabilizer bar and 2 No. 3 stabilizer bar brackets with the 2 bolts and 2 nuts.
  Torque: 35 N*m (357 kgf*cm, 26 ft.*lbf)

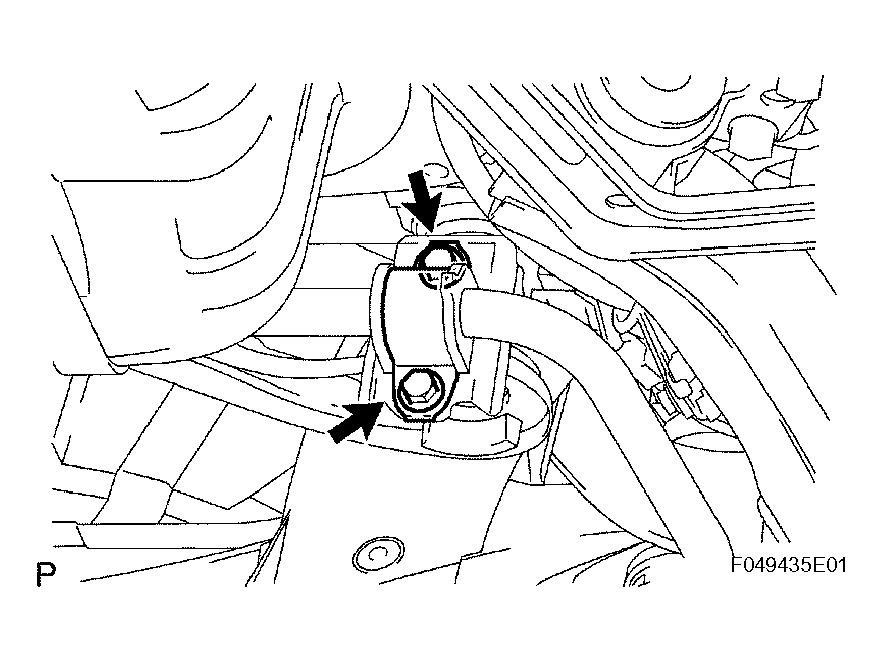

Fig 2: Installing Stabilizer Bar Brackets With Bolts And Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR STABILIZER LINK ASSEMBLY LH
1. Install the stabilizer link LH with the 2 nuts.
  Torque: 44 N*m (49 kgf*cm, 32 ft.*lbf)

  HINT:

  If the ball joint turns together with the nut, use a 5 mm hexagon wrench to hold the stud.
INSTALL REAR STABILIZER LINK ASSEMBLY RH
HINT:

Use the same procedures described for the LH side.
INSTALL REAR WHEEL ALIGNMENT
1. Inspect and ADJUST the REAR WHEEL ALIGNMENT .

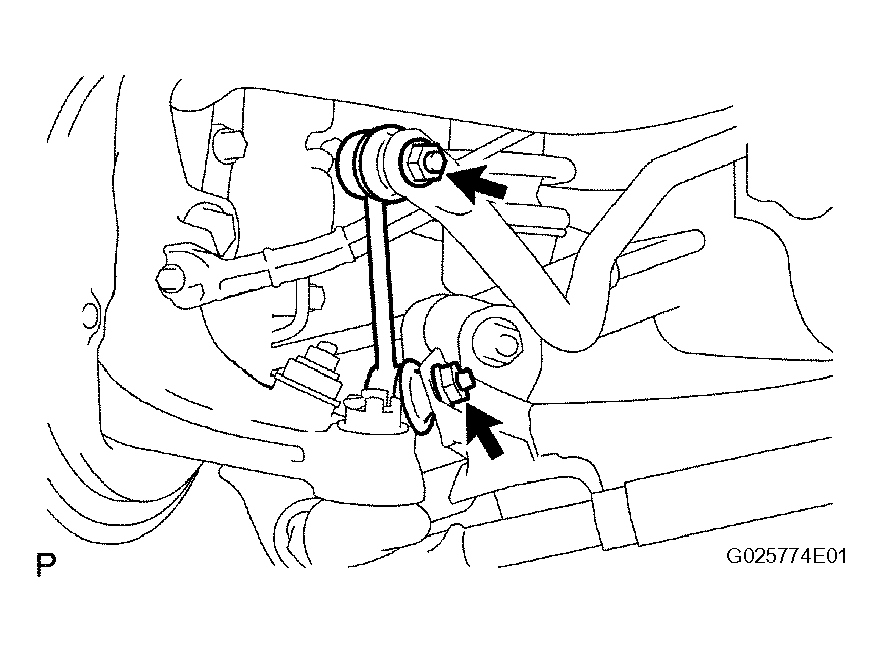

Fig 3: Installing Stabilizer Link LH With Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
