Section 1927 (Suspension)
›
Rear Upper Control Arm
›
Components
Rear Upper Control Arm: Components
WARNING:
This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

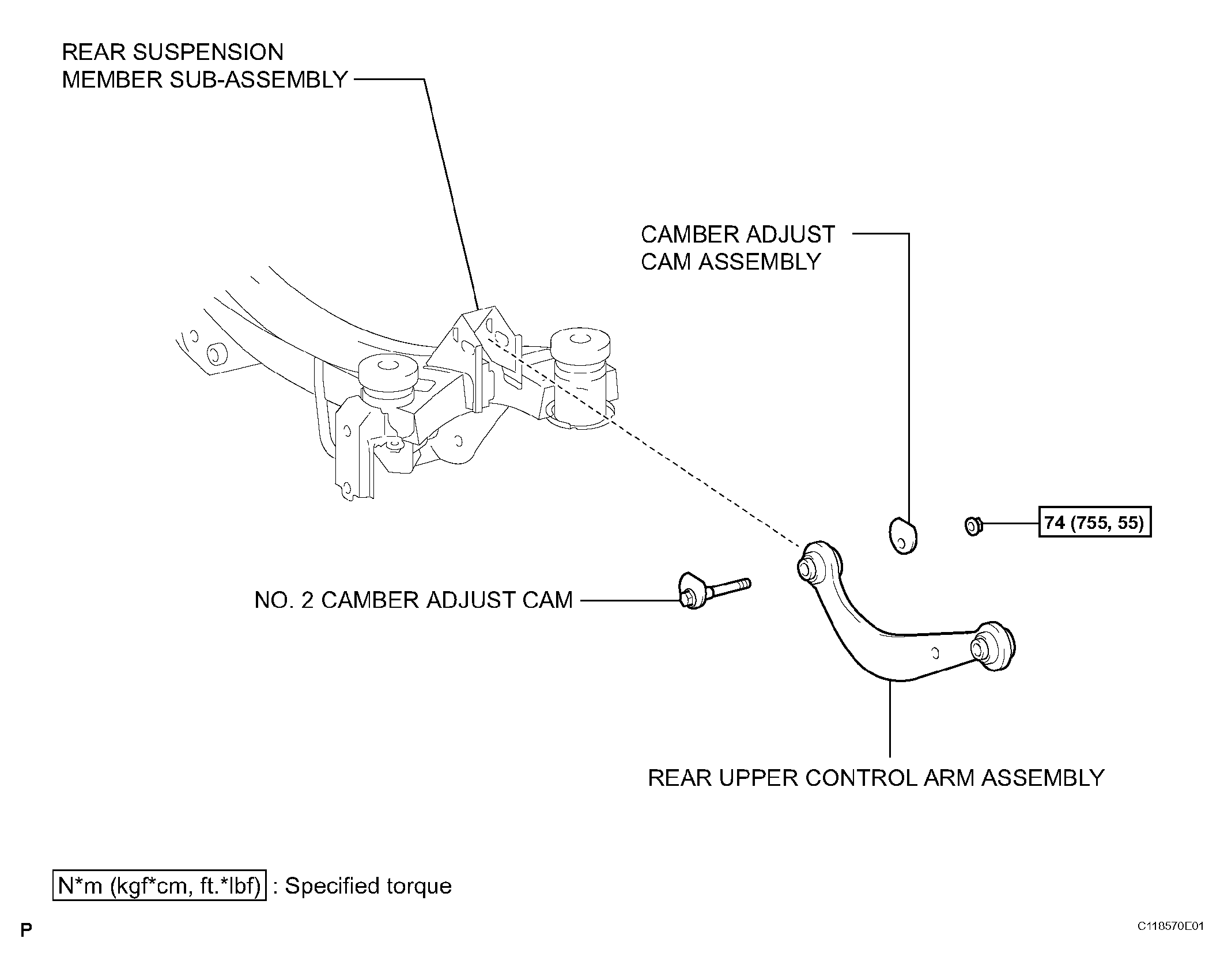

Fig 1: Identifying Rear Upper Control Arm Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
