Rear Upper Control Arm: Removal

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE REAR WHEEL
REMOVE REAR UPPER CONTROL ARM ASSEMBLY
1. Support the No. 1 suspension arm.

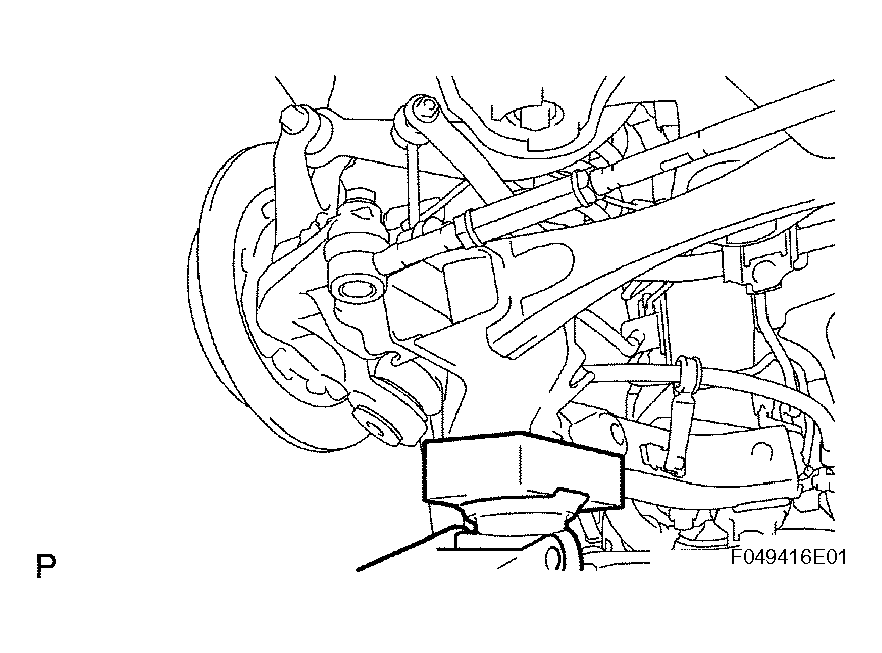

  Fig 1: Supporting No. 1 Suspension Arm
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt and nut, and disconnect the upper control arm.
  NOTE: When removing the bolt, hold the nut in place.

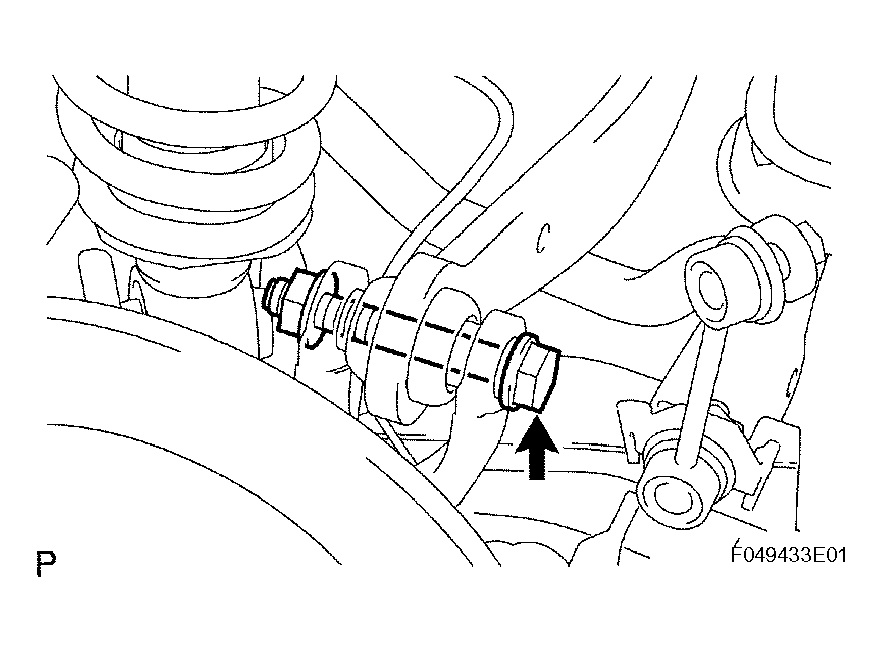

  Fig 2: Removing Upper Control Arm Bolt And Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Put matchmarks on the camber adjust cam, No. 2 camber adjust cam and suspension member.
4. Remove the nut, No. 2 camber adjust cam and camber adjust cam.

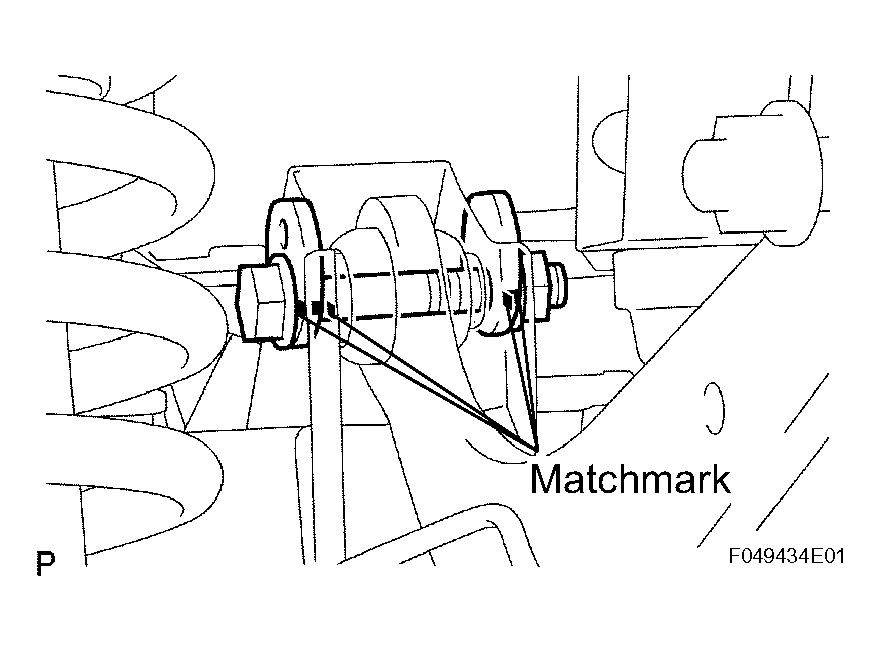

Fig 3: Putting Matchmarks On Camber Adjust Cam
