Blower Unit: Disassembly

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

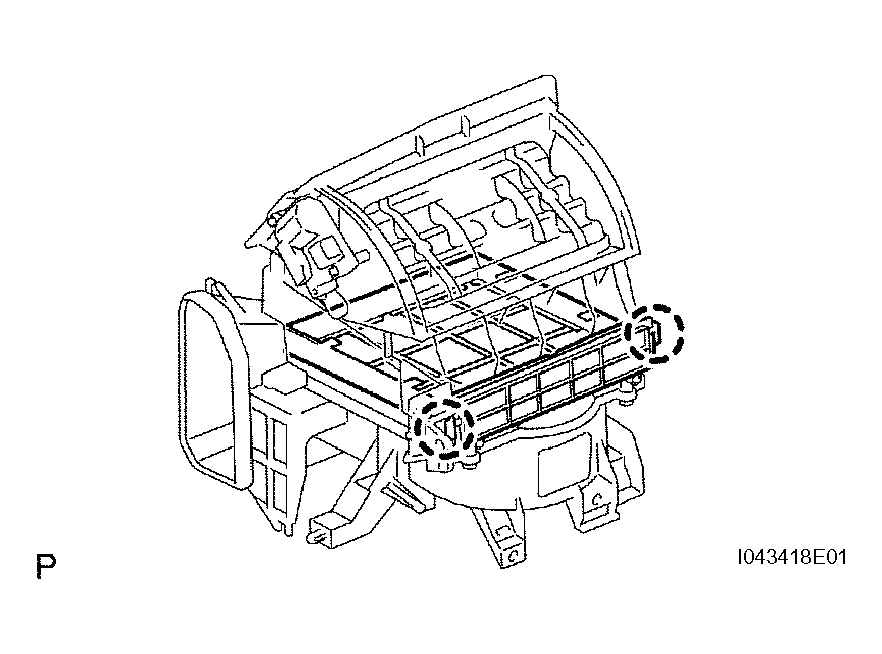

  1. REMOVE AIR FILTER CASE
    1. Detach the 2 claws and remove the air filter case.
    Fig 1: Detaching Claws And Removing Air Filter Case
    G04223577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE AIR INLET SERVO MOTOR
    1. Remove the 2 screws and air inlet servo motor.
    Fig 2: Removing Screws And Air Inlet Servo Motor
    G04223578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

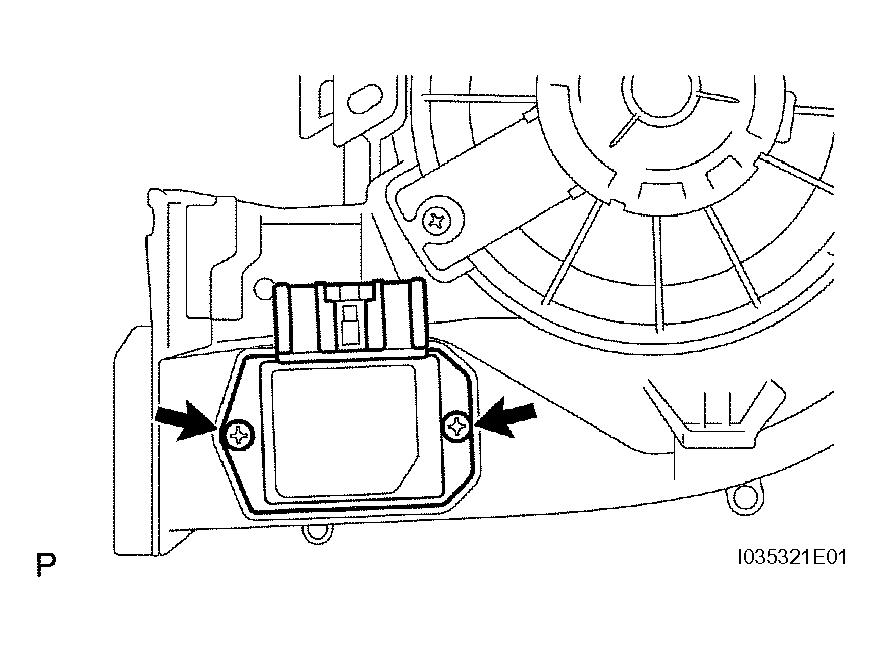

  3. REMOVE BLOWER MOTOR CONTROL
    1. Remove the 2 screws and blower motor control.
    Fig 3: Removing Screws And Blower Motor Control
    G04223579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

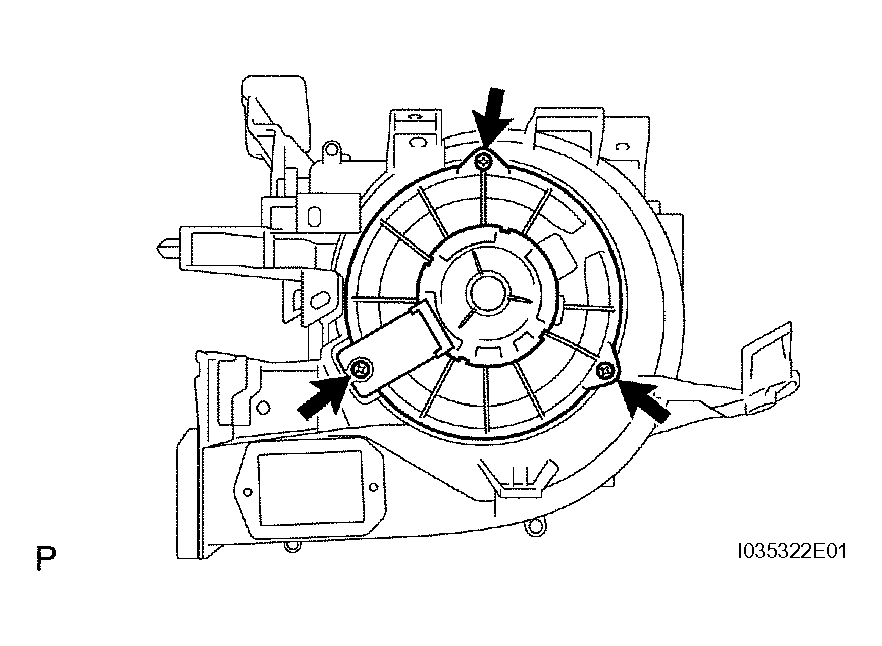

  4. REMOVE BLOWER WITH FAN MOTOR SUBASSEMBLY
    1. Remove the 3 screws and blower w/ fan motor.
    Fig 4: Removing Screws And Blower W/ Fan Motor
    G04223580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
