Blower Unit: Reassembly

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL BLOWER WITH FAN MOTOR SUBASSEMBLY
    1. Install the blower motor with the 3 screws.

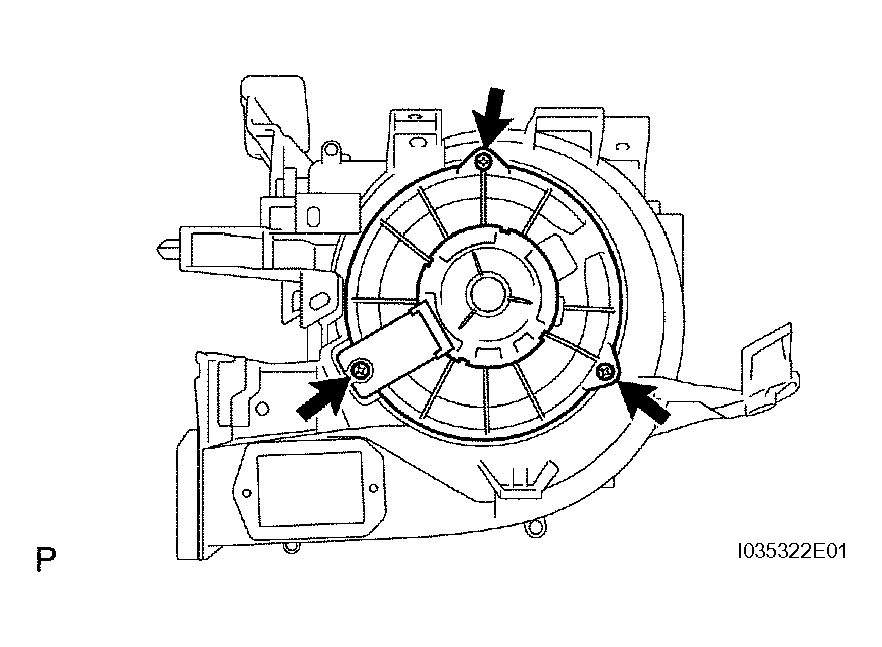

    Fig 1: Installing Blower Motor With Screws
    G04223581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL BLOWER MOTOR CONTROL
    1. Install the blower motor control with the 2 screws.

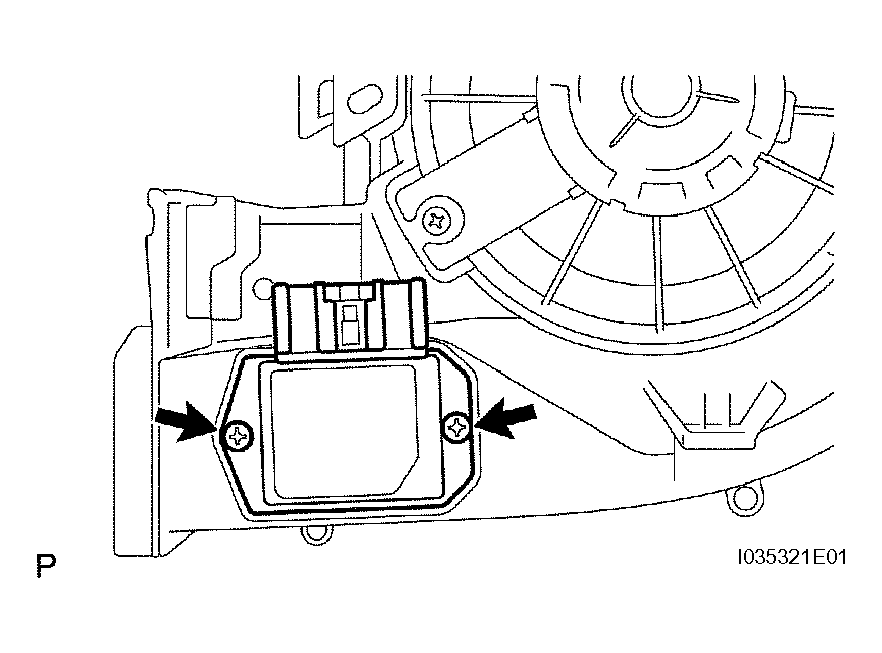

    Fig 2: Installing Blower Motor Control With Screws
    G04223582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL AIR INLET SERVO MOTOR
    1. Install the air inlet servo motor with the 2 screws.
    Fig 3: Installing Air Inlet Servo Motor With Screws
    G04223583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL AIR FILTER CASE
    1. Install the air filter case and attach the 2 claws.

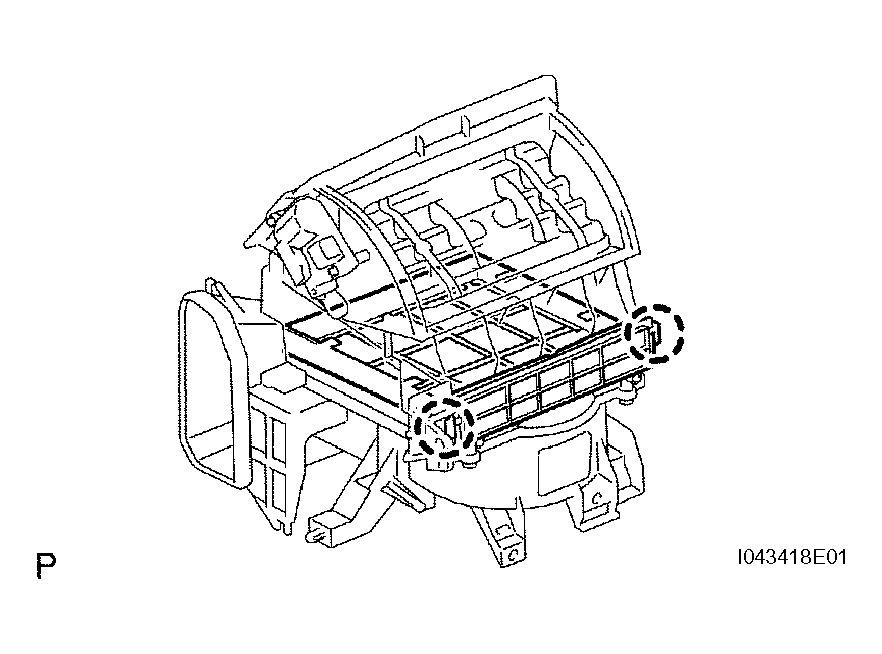

    Fig 4: Installing Air Filter Case And Attaching Claws
    G04223584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
