Rear Combination Light Assembly: Removal

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE REAR BUMPER COVER (See REMOVAL )
REMOVE REAR FLOOR SERVICE HOLE COVER
1. Detach the claw and remove the rear floor service hole cover.
Fig 1: Removing Rear Floor Service Hole Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR COMBINATION LIGHT ASSEMBLY LH
1. Disconnect the connector.
2. Remove the 3 nuts.
3. Remove the pin, and then remove the rear combination light.

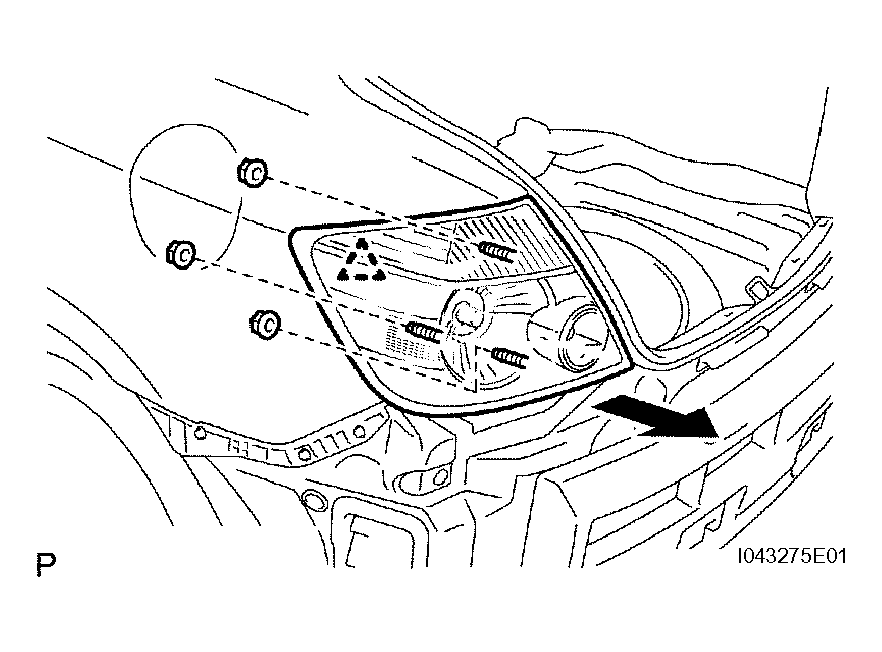

  Fig 2: Removing Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE BACK DOOR GARNISH CENTER (See DISASSEMBLY )
REMOVE BACK DOOR SIDE GARNISH LH (See DISASSEMBLY )
REMOVE BACK DOOR SIDE GARNISH RH (See DISASSEMBLY )
REMOVE BACK DOOR GARNISH SUB - ASSEMBLY OUTSIDE (See REMOVAL )
