Front Bumper: Disassembly

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE HOOD TO FRONT END PANEL SEAL
1. Using a clip remover, detach the 8 clips and remove the panel seal.
REMOVE FRONT BUMPER REINFORCEMENT
1. Using a clip remover, remover the 2 clips and reinforcement from the bumper cover.
REMOVE RADIATOR GRILLE LOWER
REMOVE FRONT BUMPER HOLE COVER
REMOVE FRONT BUMPER GUARD COVER LH
1. Using a screwdriver, detach the 3 claws and remove the cover.
  HINT:

  Tape the screwdriver tip before use.

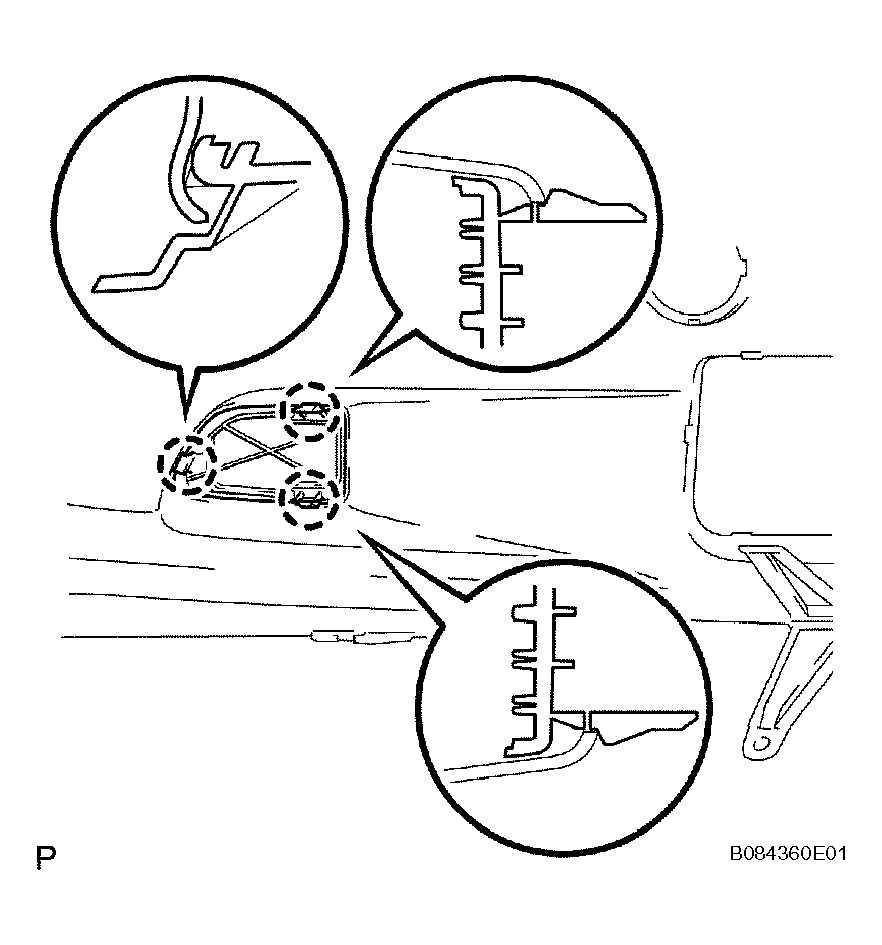

  Fig 1: Bumper Guard Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT BUMPER GUARD COVER RH
HINT:

Use the same procedures described for the LH side.
