Front Bumper: Reassembly

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL FRONT BUMPER GUARD COVER LH
1. Attach the 3 claws to install the cover.

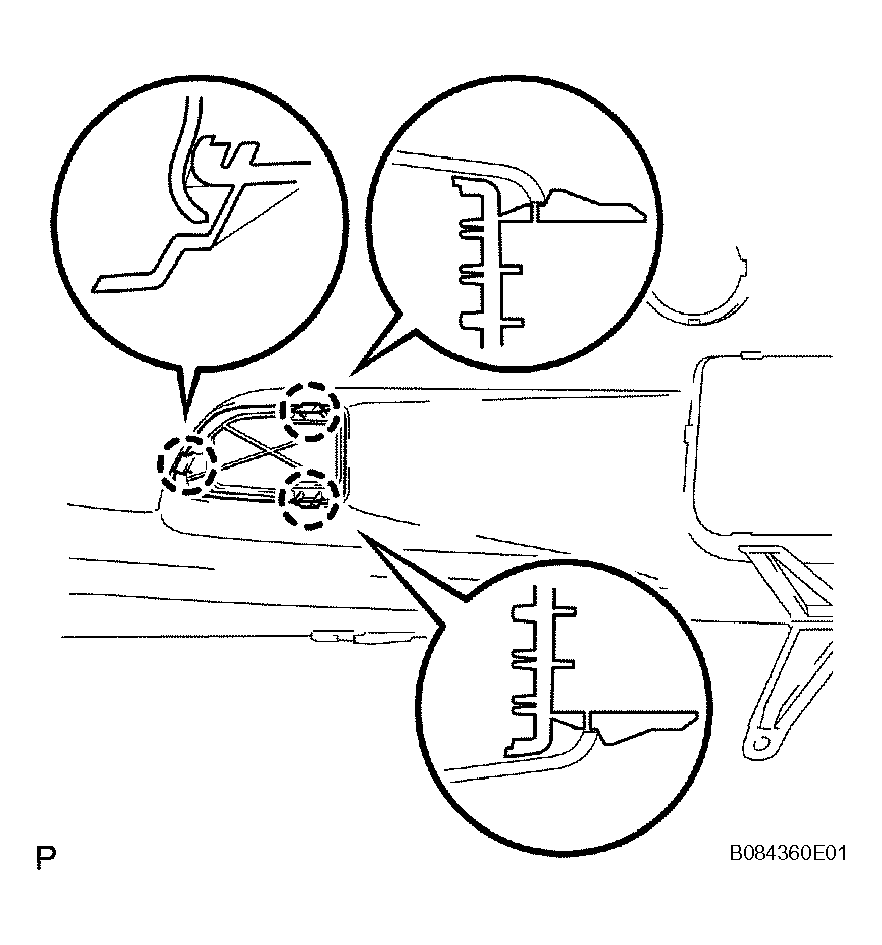

Fig 1: Bumper Guard Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT BUMPER GUARD COVER RH
HINT:

Use the same procedures described for the LH side.
INSTALL FRONT BUMPER HOLE COVER
INSTALL RADIATOR GRILLE LOWER
INSTALL FRONT BUMPER REINFORCEMENT
1. Install the reinforcement to the bumper cover with the 2 clips.
INSTALL HOOD TO FRONT END PANEL SEAL
1. Attach the 8 clips to install the panel seal.
