Name Plate: Installation

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not heat the vehicle body, emblem and name plate excessively.

HINT:

When installing the emblem and name plate, heat the vehicle body, emblem and name plate using a heat light.

Standard heating temperature

Item	Temperature
Vehicle Body	40 to 60°C (104 to 140°F)
Name Plate	20 to 30°C (68 to 86°F)

INSTALL NO. 5 BACK DOOR NAME PLATE

Clean the vehicle body surface.
1. Using a heat light, heat the vehicle body surface.
2. Remove the double-sided tape from the vehicle body.
3. Wipe off any tape adhesive residue with cleaner.
If reusing the name plate:
Clean the name plate.
1. Using a heat light, heat the name plate.
2. Remove the double-sided tape from the name plate.
3. Wipe off any tape adhesive residue with cleaner.
4. Apply new double-sided tape to the emblem.
Install the name plate.
1. Using a heat light, heat the vehicle body and name plate.
2. Remove the peeling paper from the face of the name plate.
  HINT:

  After removing the peeling paper, keep the exposed adhesive free from foreign matter.
3. Install the name plate.
  NOTE: Install the name plate exactly according to the specifications below.

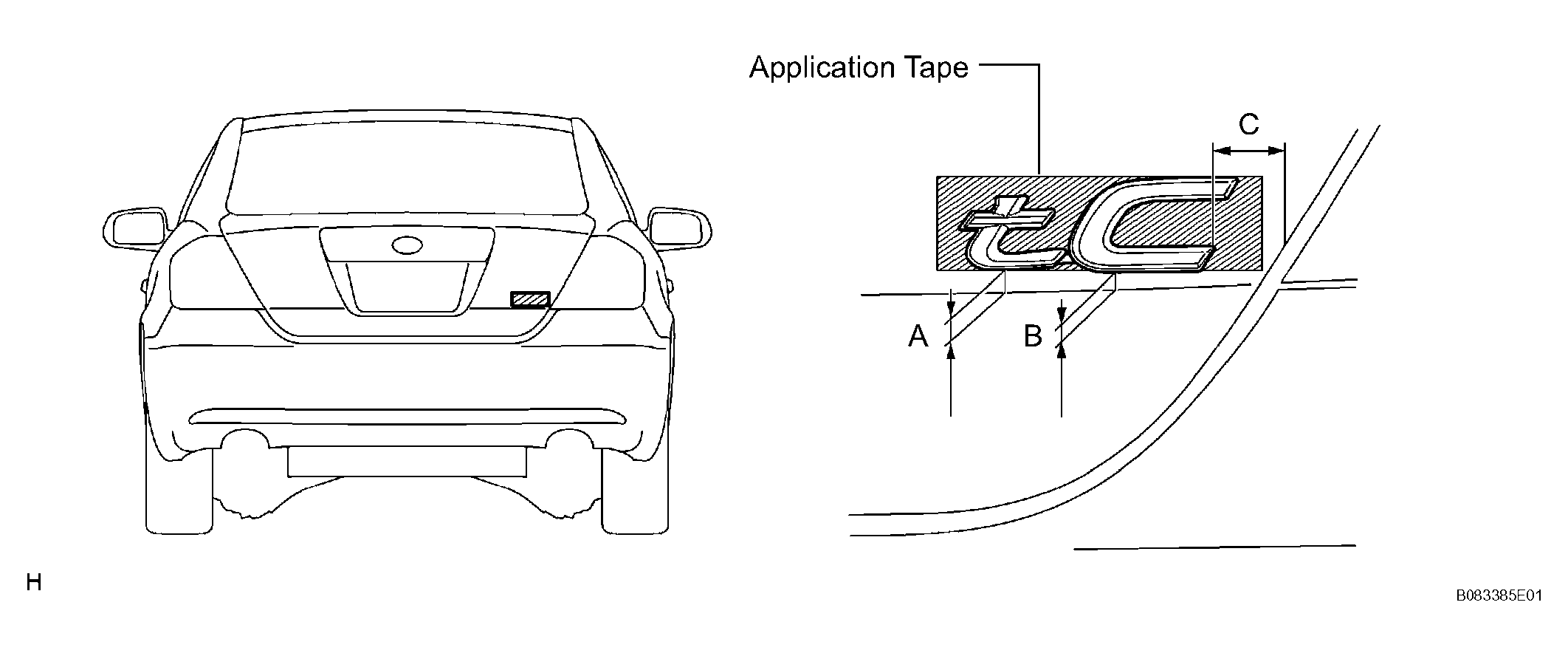

Fig 1: Installing Rear Door Name Plate

Standard measurement

Area	Measurement
A	8.7 mm (0.343 in.)
B	7.1 mm (0.280 in.)
C	24.7 mm (0.972 in.)
