Control Valve Assembly: Installation

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Installation is the reverse order of removal.

Install bolts in sequence as shown in Fig 1. Refer to COMPONENTS for specified torque.

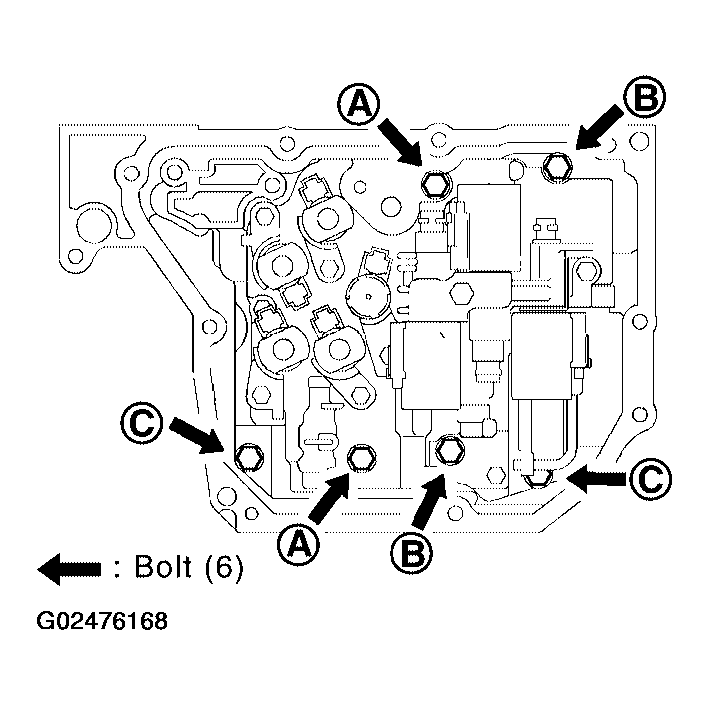

Fig 1: Identifying Control Valve Assembly Bolt Installation Sequence

Courtesy of NISSAN MOTOR CO., U.S.A.

CONTROL VALVE ASSEMBLY BOLT INDENTIFICATION

Bolt symbol	Length mm (in)	Number of bolts
A	55 (2.17)	2
B	50 (1.97)	2
C	16 (0.63)	2
