Control Valve Assembly: Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove side cover. Refer to SIDE COVER .
  2. Disconnect solenoid valve connectors.
  3. Disconnect control valve assembly bolts and remove control valve assembly.

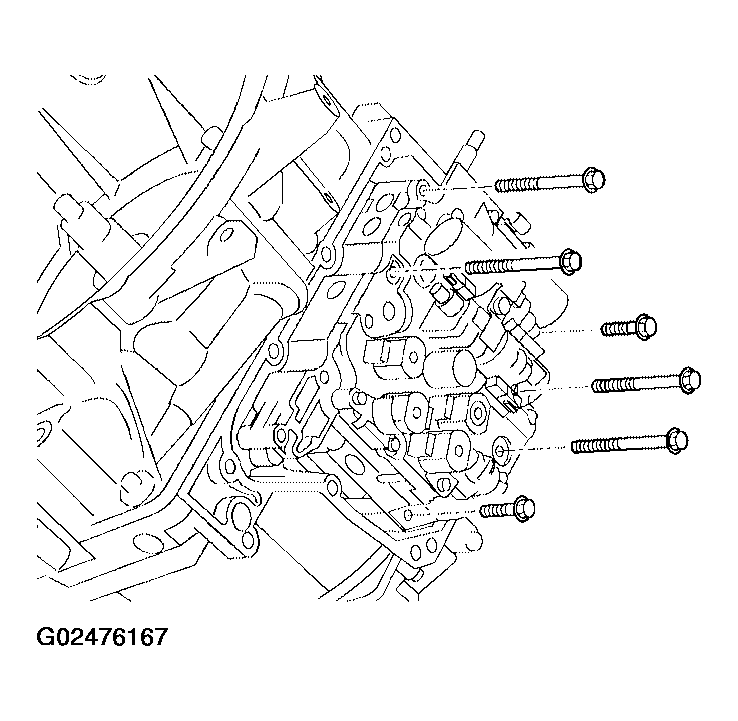

    Fig 1: Disconnecting Control Valve Assembly Bolts
    G02476167Courtesy of NISSAN MOTOR CO., U.S.A.
