Revolution Sensor Replacement

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove intake air duct.
  2. Disconnect electrical connector.
  3. Remove revolution sensor from A/T.

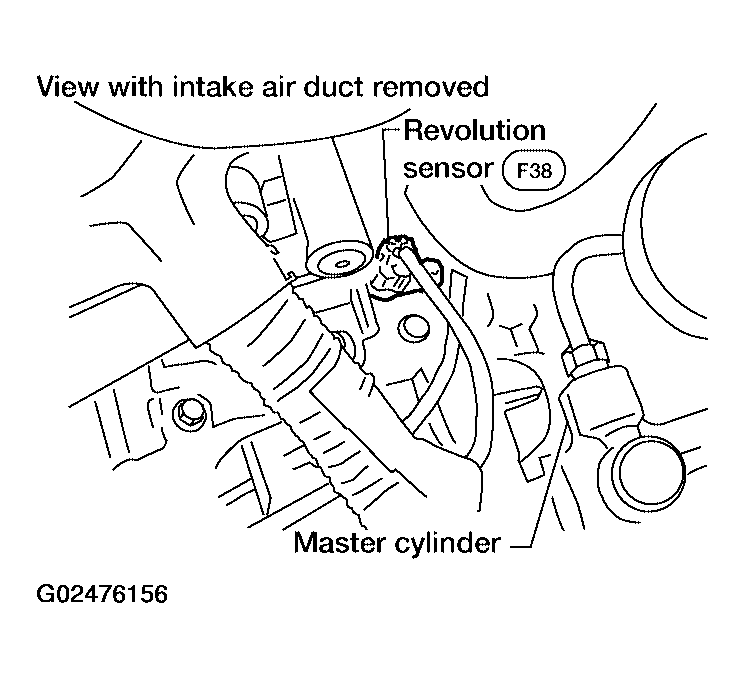

    Fig 1: Removing Revolution Sensor From A/T
    G02476156Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Reinstall any part removed.
    • Do not reuse seal bolt.
