TCM Initialization Patterns

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

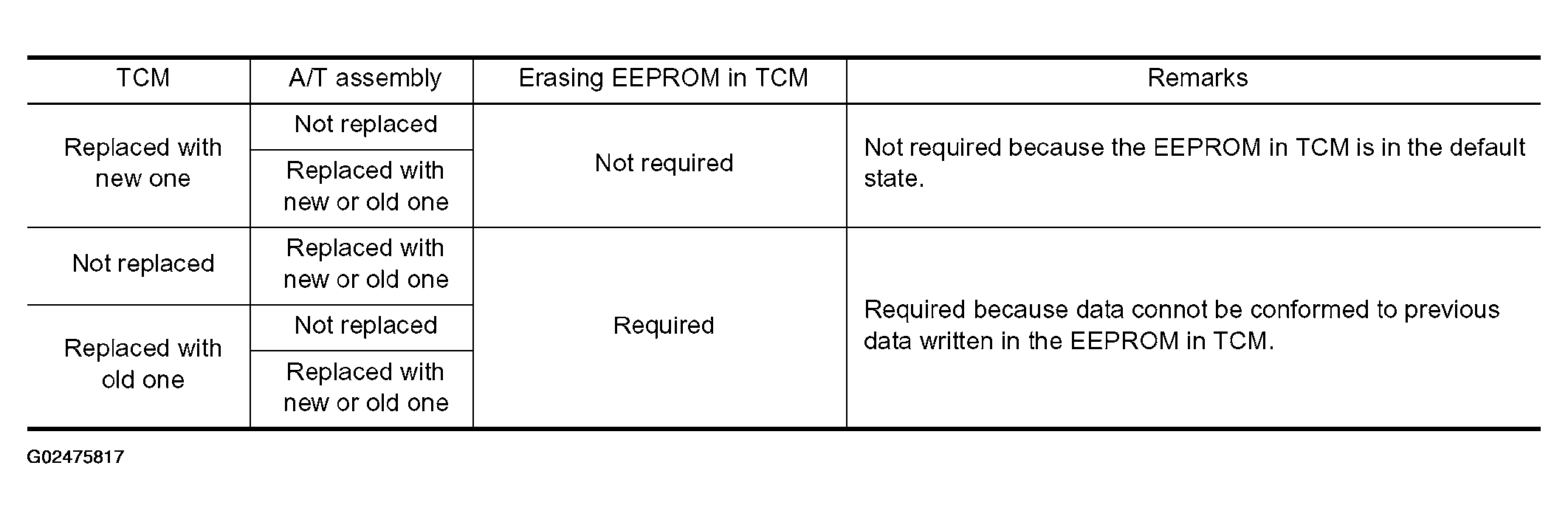

Fig 1: TCM Initialization (Reprogramming Conditions)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: "Old one" is the TCM or A/T assembly that has been used on other vehicles.
