Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Note the following, and installation is in the reverse order of removal.

Refer to "COMPONENTS " about each tightening torque.
When installing the side shaft, apply multi-purpose grease to contact surface of side shaft and side shaft oil seal.
When installing breather hoses, refer to the figure.
CAUTION: Make sure there are no pinched or restricted areas on the breather hose caused by bending or winding when installing it.

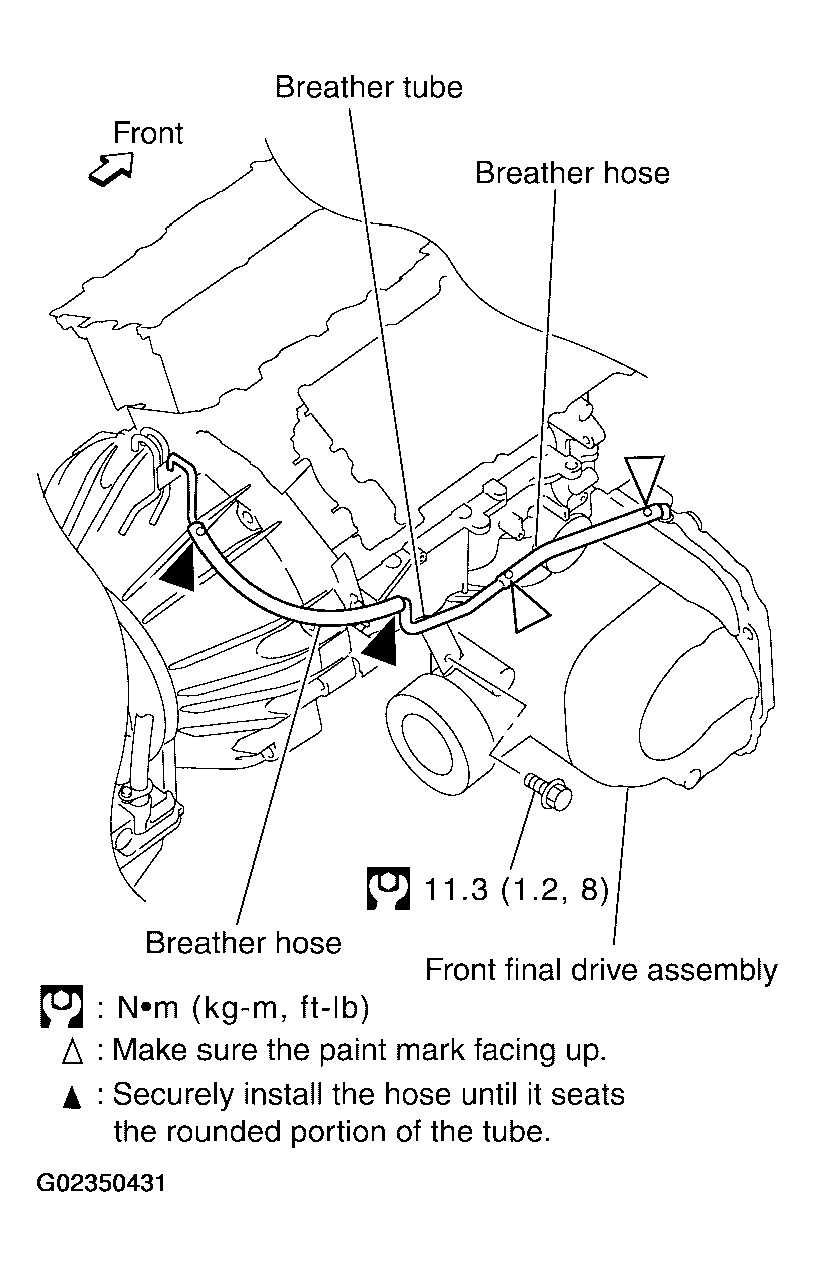

Fig 1: Identifying Breather Hose And Breather Tube
Courtesy of NISSAN MOTOR CO., U.S.A.
Install breather connector as shown in the figure.
Angle "A": 0 - 30°

Fig 2: Installing Breather Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Seat the breather tube bracket end to the machined of gear carrier boss.
When oil leaks while removing final drive assembly, check oil level after the installation. Refer to "CHECKING DIFFERENTIAL GEAR OIL ".

Fig 3: Seating Breather Tube Bracket End To Machined Of Gear Carrier Boss
Courtesy of NISSAN MOTOR CO., U.S.A.
